APXVBLL26H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.6m, 1x 690-960/2x 1695-2690MHz, 65deg, Integrated RET

Rev : F | Rev date : 18 Feb 2023

FEATURES / BENEFITS

  • 2 ports / 1 cross pol system in low band (690-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Supporting 4x4 MIMO in high band
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP




Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (690-960 MHz) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 16.8 17.3 17.8
Gain Over all Tilts dBi 16.3 +/- 0.5 16.8 +/- 0.5 17.3 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.4 +/- 1.5 65.1 +/- 2 61.2 +/- 1.5
Elevation Beamwidth 3dB Deg 8.6 +/- 0.5 7.8 +/- 0.5 7.1 +/- 0.5
Cross Polar Discrimination at Boresight dB 26 27 27
Cross Polar Discrimination over Sector dB 10 10 9
F/B at +/-30deg Total Power dB 25 24 24
First Upper Side Lobe Suppression dB 16 17 19.1
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Left Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.9 17.1 17.9 17.6 17.8
Gain Over all Tilts dBi 16.4 +/- 0.5 16.6 +/- 0.5 16.9 +/- 1 17.1 +/- 0.5 17.3 +/- 0.5
Azimuth Beamwidth 3dB Deg 70.8 +/- 6 65.7 +/- 6.5 66.6 +/- 5.2 68 +/- 2 64.6 +/- 5.3
Elevation Beamwidth 3dB Deg 6.2 +/- 0.5 5.9 +/- 0.1 5.5 +/- 0.5 5 +/- 0.1 4.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 23 23 23 24.1 24
Cross Polar Discrimination over Sector dB 10 8 9 11.4 5
F/B at +/-30deg Total Power dB 21.5 24.9 25 25 21
First Upper Side Lobe Suppression dB 16.7 20 20 21 18.1
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Right Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17 17.2 17.9 17.8 18
Gain Over all Tilts dBi 16.5 +/- 0.5 16.7 +/- 0.5 16.9 +/- 1 17.3 +/- 0.5 17.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 70.5 +/- 7.2 65.7 +/- 6.5 66.1 +/- 5.2 66 +/- 1.7 63.4 +/- 4.1
Elevation Beamwidth 3dB Deg 6.2 +/- 0.5 5.8 +/- 0.5 5.5 +/- 0.5 5 +/- 0.1 4.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 21.4 25.2 24 24.5 24
Cross Polar Discrimination over Sector dB 10 7.5 9 11 2
F/B at +/-30deg Total Power dB 22 25 26 24 21
First Upper Side Lobe Suppression dB 16 17.4 19 17.4 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

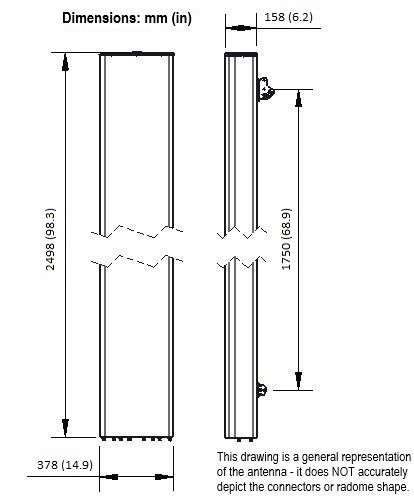

Dimensions - H x W x Dmm (in)2498 x 378 x 158 (98.3 x 14.9 x 6.2)
Weight (Antenna Only)kg (lb)25.9 (57.1)
Weight (Mounting Hardware only)kg (lb)4 (8.8)
Packing size- HxWxDmm (in)2678 x 473 x 278 (105.4 x 18.6 x 10.9)
Shipping Weightkg (lb)36.5 (80.5)
Connector type6x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN616
Wind Load @Rated Wind SideN551
Wind Load @Rated Wind RearN714
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBLL26H_43-C-I20 Internal RET(ACU-I20-H12I) APM50-H1 50-125mm 36.5 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
