Home
/
Antennas
/
Base Station Antennas
Categories
Multi-Band Passive Antennas (MBPA)
Single Band Antennas
Hybrid FDD/TDD antennas
Standalone TDD Antennas
Tailored Beamwidth Antennas (Special Beam)
Small Size Antennas
Application-Specific Antennas
Filters
Horizontal Beamwidth
>100
(51)
33
(8)
65
(95)
90
(9)
RF Connector Quantity
1
(48)
2
(15)
4
(28)
6
(16)
8
(28)
10
(11)
12
(13)
14
(2)
18
(1)
Length m(ft)
0.3-0.9 m (1-3 ft)
(23)
1.2-1.5 m (4-5 ft)
(50)
1.6-2.1 m (6-7 ft)
(39)
2.4-2.7 m (8-9 ft)
(34)
>2.7 m (>9 ft)
(16)
Electrical Tilt Type
Fixed
(55)
RET (Remote)
(104)
VET (Manual)
(3)
163 results found
Compare
Sort By A-Z
Sort By Z-A

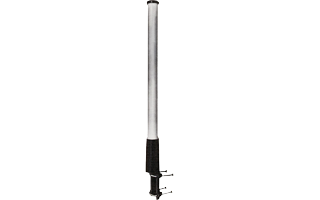

BA6110-1
Omnidirectional Fiberglass Antenna, 400-470, 2.1dBi, N Female
Compare
Quick view
Close quick view
BA6110-1
Omnidirectional Fiberglass Antenna, 400-470, 2.1dBi, N Female
Frequency Range, MHz
: 400, 470
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 2.1
Vertical Beamwidth, deg
: 78
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 3 (7)
Overall Length, m (ft)
: 1.01 (3.3)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BA6110-2
Omnidirectional Fiberglass Antenna, 450-512, 2.1dBi, N Female
Compare
Quick view
Close quick view
BA6110-2
Omnidirectional Fiberglass Antenna, 450-512, 2.1dBi, N Female
Frequency Range, MHz
: 450, 512
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 2.1
Vertical Beamwidth, deg
: 78
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 3 (6.6)
Overall Length, m (ft)
: 0.94 (3.1)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BA6110-3
Omnidirectional Fiberglass Antenna, 380-440, 2.1dBi, N Female
Compare
Quick view
Close quick view
BA6110-3
Omnidirectional Fiberglass Antenna, 380-440, 2.1dBi, N Female
Frequency Range, MHz
: 380, 440
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 2.1
Vertical Beamwidth, deg
: 78
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 3 (7)
Overall Length, m (ft)
: 1.01 (3.3)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare

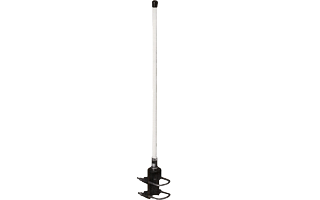

BA6312-0
Omnidirectional Fiberglass Antenna, 406-512, 5.1dBi, N Female
Compare
Quick view
Close quick view
BA6312-0
Omnidirectional Fiberglass Antenna, 406-512, 5.1dBi, N Female
Frequency Range, MHz
: 406, 512
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 5.1
Gain, dBi (dBd)
: 3
Vertical Beamwidth, deg
: 29
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 1 (2.9)
Overall Length, m (ft)
: 1.43 (4.7)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BA6312-1
Omnidirectional Fiberglass Antenna, 449-467, 5.1dBi, N Female
Compare
Quick view
Close quick view
BA6312-1
Omnidirectional Fiberglass Antenna, 449-467, 5.1dBi, N Female
Frequency Range, MHz
: 449, 467
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 5.1
Gain, dBi (dBd)
: 3
Vertical Beamwidth, deg
: 29
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 1 (2)
Overall Length, m (ft)
: 1.34 (4.4)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BA6312-2
Omnidirectional Fiberglass Antenna, 467-485, 5.1dBi, N Female
Compare
Quick view
Close quick view
BA6312-2
Omnidirectional Fiberglass Antenna, 467-485, 5.1dBi, N Female
Frequency Range, MHz
: 467, 485
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 5.1
Gain, dBi (dBd)
: 3
Vertical Beamwidth, deg
: 29
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 1 (2)
Overall Length, m (ft)
: 1.34 (4.4)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BA6312-5
Omnidirectional Fiberglass Antenna, 380-400, 5.1dBi, N Female
Compare
Quick view
Close quick view
BA6312-5
Omnidirectional Fiberglass Antenna, 380-400, 5.1dBi, N Female
Frequency Range, MHz
: 380, 400
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 5.1
Gain, dBi (dBd)
: 3
Vertical Beamwidth, deg
: 29
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 1 (2)
Overall Length, m (ft)
: 1.34 (4.4)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BA6312-6
Omnidirectional Fiberglass Antenna, 410-430, 5.1dBi, N Female
Compare
Quick view
Close quick view
BA6312-6
Omnidirectional Fiberglass Antenna, 410-430, 5.1dBi, N Female
Frequency Range, MHz
: 410, 430
Horizontal Beamwidth, deg
: N/A
Gain, dBi (dBd)
: 5.1
Gain, dBi (dBd)
: 3
Vertical Beamwidth, deg
: 29
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 1 (2)
Overall Length, m (ft)
: 1.34 (4.4)
Diameter, mm (in)
:
Radome Color
: White RAL9010
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR10-A-B1
Penetrator™ Antenna, 806-869, 14.4dBi, 220deg
Compare
Quick view
Close quick view
BMR10-A-B1
Penetrator™ Antenna, 806-869, 14.4dBi, 220deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 220
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 14.4
Gain, dBi (dBd)
: 12.3
Vertical Beamwidth, deg
: 5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 25 (55)
Overall Length, m (ft)
: 3.96 (13)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR10-B-B1
Penetrator™ Antenna, 806-869, 16.1dBi, 140deg
Compare
Quick view
Close quick view
BMR10-B-B1
Penetrator™ Antenna, 806-869, 16.1dBi, 140deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 140
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 16.1
Gain, dBi (dBd)
: 14
Vertical Beamwidth, deg
: 5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 25 (55)
Overall Length, m (ft)
: 3.96 (13)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR10-D-B1
Penetrator™ Antenna, 806-869, 16.4dBi, 120deg
Compare
Quick view
Close quick view
BMR10-D-B1
Penetrator™ Antenna, 806-869, 16.4dBi, 120deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 120
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 16.4
Gain, dBi (dBd)
: 14.3
Vertical Beamwidth, deg
: 5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 25 (55)
Overall Length, m (ft)
: 3.96 (13)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR10-H-B1
Penetrator™ Antenna, 806-869, 15.5dBi, Dual
Compare
Quick view
Close quick view
BMR10-H-B1
Penetrator™ Antenna, 806-869, 15.5dBi, Dual
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: Dual
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 15.5
Gain, dBi (dBd)
: 13.4
Vertical Beamwidth, deg
: 5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 25 (55)
Overall Length, m (ft)
: 3.96 (13)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR10-O-B1
Penetrator™ Antenna, 806-869, 12.1dBi, 360deg
Compare
Quick view
Close quick view
BMR10-O-B1
Penetrator™ Antenna, 806-869, 12.1dBi, 360deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 360
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 12.1
Gain, dBi (dBd)
: 10
Vertical Beamwidth, deg
: 5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 25 (55)
Overall Length, m (ft)
: 3.96 (13)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR12-A-B1
Penetrator™ Antenna, 806-869, 16.4dBi, 220deg
Compare
Quick view
Close quick view
BMR12-A-B1
Penetrator™ Antenna, 806-869, 16.4dBi, 220deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 220
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 16.4
Gain, dBi (dBd)
: 14.3
Vertical Beamwidth, deg
: 3.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 42 (92)
Overall Length, m (ft)
: 6.1 (20)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR12-B-B1
Penetrator™ Antenna, 806-869, 18.1dBi, 140deg
Compare
Quick view
Close quick view
BMR12-B-B1
Penetrator™ Antenna, 806-869, 18.1dBi, 140deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 140
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 18.1
Gain, dBi (dBd)
: 16
Vertical Beamwidth, deg
: 3.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 42 (92)
Overall Length, m (ft)
: 6.1 (20)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR12-D-B1
Penetrator™ Antenna, 806-869, 18.4dBi, 120deg
Compare
Quick view
Close quick view
BMR12-D-B1
Penetrator™ Antenna, 806-869, 18.4dBi, 120deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 120
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 18.4
Gain, dBi (dBd)
: 16.3
Vertical Beamwidth, deg
: 3.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 42 (92)
Overall Length, m (ft)
: 6.1 (20)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR12-H-B1
Penetrator™ Antenna, 806-869, 17.5dBi, Dual
Compare
Quick view
Close quick view
BMR12-H-B1
Penetrator™ Antenna, 806-869, 17.5dBi, Dual
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: Dual
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 17.5
Gain, dBi (dBd)
: 15.4
Vertical Beamwidth, deg
: 3.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 42 (92)
Overall Length, m (ft)
: 6.1 (20)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR12-O-B1
Penetrator™ Antenna, 806-869, 14.1dBi, 360deg
Compare
Quick view
Close quick view
BMR12-O-B1
Penetrator™ Antenna, 806-869, 14.1dBi, 360deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 360
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 14.1
Gain, dBi (dBd)
: 12
Vertical Beamwidth, deg
: 3.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 42 (92)
Overall Length, m (ft)
: 6.1 (20)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR6-A-B1
Penetrator™ Antenna, 806-869, 10.4dBi, 220deg
Compare
Quick view
Close quick view
BMR6-A-B1
Penetrator™ Antenna, 806-869, 10.4dBi, 220deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 220
Gain, dBi (dBd)
: 10.4
Gain, dBi (dBd)
: 8.3
Vertical Beamwidth, deg
: 13
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 12 (26)
Overall Length, m (ft)
: 1.68 (5.5)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR6-B-B1
Penetrator™ Antenna, 806-869, 12.1dBi, 140deg
Compare
Quick view
Close quick view
BMR6-B-B1
Penetrator™ Antenna, 806-869, 12.1dBi, 140deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 140
Gain, dBi (dBd)
: 12.1
Gain, dBi (dBd)
: 10
Vertical Beamwidth, deg
: 13
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 12 (26)
Overall Length, m (ft)
: 1.68 (5.5)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR6-D-B1
Penetrator™ Antenna, 806-869, 12.4dBi, 120deg
Compare
Quick view
Close quick view
BMR6-D-B1
Penetrator™ Antenna, 806-869, 12.4dBi, 120deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 120
Gain, dBi (dBd)
: 12.4
Gain, dBi (dBd)
: 10.3
Vertical Beamwidth, deg
: 13
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 12 (26)
Overall Length, m (ft)
: 1.68 (5.5)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR6-H-B1
Penetrator™ Antenna, 806-869, 11.5dBi, Dual
Compare
Quick view
Close quick view
BMR6-H-B1
Penetrator™ Antenna, 806-869, 11.5dBi, Dual
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: Dual
Gain, dBi (dBd)
: 11.5
Gain, dBi (dBd)
: 9.4
Vertical Beamwidth, deg
: 13
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 12 (26)
Overall Length, m (ft)
: 1.68 (5.5)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR6-O-B1
Penetrator™ Antenna, 806-869, 8.1dBi, 360deg
Compare
Quick view
Close quick view
BMR6-O-B1
Penetrator™ Antenna, 806-869, 8.1dBi, 360deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 360
Gain, dBi (dBd)
: 8.1
Gain, dBi (dBd)
: 6
Vertical Beamwidth, deg
: 13
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 12 (26)
Overall Length, m (ft)
: 1.68 (5.5)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR8-A-B1
Penetrator™ Antenna, 806-869, 12.4dBi, 220deg
Compare
Quick view
Close quick view
BMR8-A-B1
Penetrator™ Antenna, 806-869, 12.4dBi, 220deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 220
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 12.4
Gain, dBi (dBd)
: 10.3
Vertical Beamwidth, deg
: 8.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 16 (36)
Overall Length, m (ft)
: 2.44 (8)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR8-B-B1
Penetrator™ Antenna, 806-869, 14.1dBi, 140deg
Compare
Quick view
Close quick view
BMR8-B-B1
Penetrator™ Antenna, 806-869, 14.1dBi, 140deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 140
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 14.1
Gain, dBi (dBd)
: 12
Vertical Beamwidth, deg
: 8.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 16 (36)
Overall Length, m (ft)
: 2.44 (8)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR8-D-B1
Penetrator™ Antenna, 806-869, 14.4dBi, 120deg
Compare
Quick view
Close quick view
BMR8-D-B1
Penetrator™ Antenna, 806-869, 14.4dBi, 120deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 120
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 14.4
Gain, dBi (dBd)
: 12.3
Vertical Beamwidth, deg
: 8.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 16 (36)
Overall Length, m (ft)
: 2.44 (8)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR8-H-B1
Penetrator™ Antenna, 806-869, 13.5dBi, Dual
Compare
Quick view
Close quick view
BMR8-H-B1
Penetrator™ Antenna, 806-869, 13.5dBi, Dual
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: Dual
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 13.5
Gain, dBi (dBd)
: 11.4
Vertical Beamwidth, deg
: 8.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 16 (36)
Overall Length, m (ft)
: 2.44 (8)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BMR8-O-B1
Penetrator™ Antenna, 806-869, 10.1dBi, 360deg
Compare
Quick view
Close quick view
BMR8-O-B1
Penetrator™ Antenna, 806-869, 10.1dBi, 360deg
Frequency Range, MHz
: 806, 869
Horizontal Beamwidth, deg
: 360
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 10.1
Gain, dBi (dBd)
: 8
Vertical Beamwidth, deg
: 8.5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 16 (36)
Overall Length, m (ft)
: 2.44 (8)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BPS10-A-B1
Penetrator™ Antenna, 746-806, 14.4dBi, 220deg
Compare
Quick view
Close quick view
BPS10-A-B1
Penetrator™ Antenna, 746-806, 14.4dBi, 220deg
Frequency Range, MHz
: 746, 806
Horizontal Beamwidth, deg
: 220
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 14.4
Gain, dBi (dBd)
: 12.3
Vertical Beamwidth, deg
: 5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 26 (57)
Overall Length, m (ft)
: 4.26 (14)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
BPS10-B-B1
Penetrator™ Antenna, 746-806, 16.1dBi, 140deg
Compare
Quick view
Close quick view
BPS10-B-B1
Penetrator™ Antenna, 746-806, 16.1dBi, 140deg
Frequency Range, MHz
: 746, 806
Horizontal Beamwidth, deg
: 140
Electrical Downtilt, deg
: 0.75
Gain, dBi (dBd)
: 16.1
Gain, dBi (dBd)
: 14
Vertical Beamwidth, deg
: 5
Polarization
: Vertical
VSWR
: < 1.5:1
Impedance, Ohms
: 50
Connector Type
: N Female
Weight, kg (lb)
: 26 (57)
Overall Length, m (ft)
: 4.26 (14)
Diameter, mm (in)
: 168.3 (6.625)
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
1
...
2
3
4
5
6
