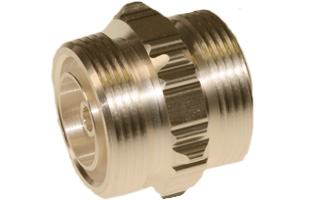

Coaxial Adapter 7-16 female - female

Rev : E | Rev date :

Coaxial Adapter, 7-16 Female/Female

FEATURES / BENEFITS

Technical features

Structure
Product Line		Coaxial Cable Components
Product Type		Coaxial Adapter

Mechanical Specifications
Connector A		7-16 DIN Female
Center Contact Connector A		Phosphor Bonze, silver plated
Outer Contact Connector A		Brass, Tri metal alloy plated
Connector B		7-16 DIN Female
Center Contact Connector B		Phosphor Bonze, silver plated
Outer Contact Connector B		Brass, Tri metal alloy plated
Dielectric		PTFE
Sealing class		IP68, connected

Electrical Specifications
Frequency Range - MHz		DC - 6000
VSWR, Return Loss	VSWR (dB)	0-2000 MHz: 1.04 (34.15) 2000-3000 MHz: 1.06 (30.71) 3000-6000 MHz: 1.10 (26.44)
Insertion Loss, dB (Max)	dB	0.05
3rd Order IM Product @ 2x20 Watts	dBc	< -163

Temperature Specifications
Operation Temperature	°C (°F)	-45 to 85 (-49 to 185)

Packaging Information
Package Quantity		1
