ACU-A20-SR
Optimizer RT® Antenna Control Unit AISG 2.0

Rev : A | Rev date : 28 Dec 2018
  • The ACU-A20-SR Antenna Control Unit (ACU) is part of the complete RFS AISG compliant Optimizer RT® remote antenna control system. The ACU-A20-SR has a smaller mounting footprint than previous ACUs. This is important for multi-band antennas with several internally mounted ACUs.

  • The Optimizer RT® remote antenna control system permits accurate antenna tilt operations to be conducted - without riggers or crane equipment - either from the tower base or the network management center.



FEATURES / BENEFITS

  • Compliant with AISG standards
  • Enables remote electrical tilt of antennas
  • Smaller footprint than  the ACU-A20-S


Technical features

General Specifications

Product TypeAntenna Control Unit
ConfigurationOptimizer RT® Antenna Control Unit (ACU) for AISG2.0
ApplicationsWireless Communication
FirmwareRemotely upgradeable (including AISG2.0)
StandardsRoHS Compliant and CE Compliant: Directive 1999/5/EC Radio Equipment and Telecommunication Terminal Equipment and the mutual recognition of their conformity, Directive 2006/95/EC Electrical Equipment designed for use within certain voltage Limits, Directive 2002/95/EC for the Restriction on the use of Hazardous Substances (RoHS) in electrical and electronic equipment.

Mechanical Specifications

ConnectorsAISG DIN female & AISG DIN male, ready for daisy-chaining
Temperature Range °C (°F)-40 to 70 (-40 to 158 )
MountingDirectly onto antenna

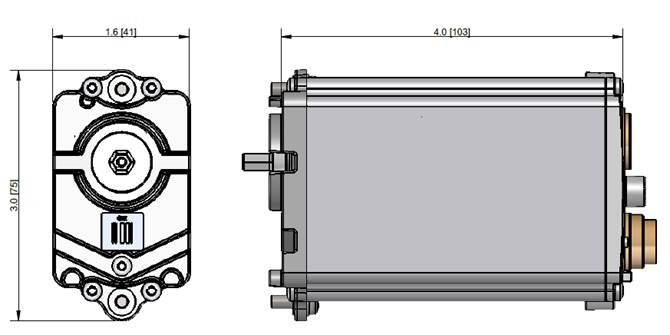

Dimensions, H x W x D mm (in)103 x 41 x 75 (4 x 1.6 x 3)
HousingAluminium, with extruded body and molded end caps
Mounting ScrewM4
Motor TypeStepper
Continuous Torque Nm0.15
Angular Resolution for Shaft TurnLess than 0.5 turn (< 0.2 degree as tilt angle)
Lifetime36,000 antenna adjustments

Testing and Environmental

Ingress ProtectionIP34 (mounted)

Electrical Specifications

Nominal Current mA50 (stand-by), 300 (during tilt)
Ripple and Noise mVpp and mV20 (stand-by), 40 (during tilt)

External Document Links

Notes

  • Radiated emission in the semi anechoic chamber: EN 55022 (1998), with the limits class B specified in the EN 300386 V1.3.3 (2005)
  • Radiated emission in the semi anechoic chamber: FCC part 15
  • Conducted emission on the data cable: EN 55022 (1998), with the limits class B specified in the EN 300386 V1.3.3 (2005)
  • Immunity to electrostatic discharges: EN 61000-4-2, {with the acceptance criteria B for the levels specified in the EN 300386 V1.3.3
  • Immunity to radiated electromagnetic field: EN 61000-4-3, with the acceptance criteria A for the levels specified in the EN 300386 V1.3.3
  • Immunity to radiated electromagnetic field : AISG1.1 and AISG 2.0, with the acceptance criteria A for the levels specified in the AISG1.1 and AISG 2.0
  • Immunity to fast transient signals in bursts on the cable: EN 61000-4-4, with the acceptance criteria B for the levels specified in the EN300386 V1.3.3
  • Immunity to surges (lighting protection): EN 61000-4-5, with the acceptance criteria B for the levels specified in the EN 300386 V1.3.3
