AOXVBLL06_43-A-A20

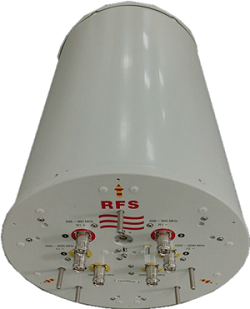

Omni-Directional Cross Polarized 6 Port Antenna, 698-960 MHz/1695-2690/1695-2690, 360 deg, 6.4/9.7/9.4 dBi, 0.6m (2ft), Variable Electrical Tilt 5-18 Deg in High Band Only

Rev : D | Rev date : 21 Dec 2021

FEATURES / BENEFITS

This antenna provides a 6 port Omni-Directional platform for advanced use in encompassing low band 700MHz and 800MHz deployment scenarios and high band AWS, PCS, BRS in a high quality package design built to withstand harsh environments.


  • Clover Omni-Pattern Performance
  • RET on High Band
  • Quick and Easy Installation
  • Includes Pole Mount and Clamp Accessories




Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (698-960 MHZ) [R1]
Frequency Range MHz 698-806 790-894 880-960
Gain Typical dBi 6.1 6.4 6.3
Gain Over All Tilts dBi 5.6 +/- .5 6.0 +/- .4 6.0 +/- .3
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 39+/-2.5 36.3+/-2.7 33.1+/-2.6
Electrical Downtilt deg Fixed 0
Gain Ripple dB 5.3 5.9 6.1
Cross Polar Isolation Between Ports dB 20
Cross Polar Discrimination over 360 dB 7.7 8.7 9.1
VSWR - 1.5
3rd Order IMP 2 x 43dBm dB -153
Maximum Power Input Watts 50

Electrical Specifications

Electrical Specification HeaderHIGH BAND LEFT ARRAY (1695-2690 MHZ) [Y1]
Frequency Band MHz 1695-1880 1850-2010 1990-2170 2300-2400 2500-2690
Gain Typical dBi 8.5 8.7 8.6 8.8 9.7
Gain Over All Tilts dBi 8.0 +/- .5 8.2 +/- .5 7.9 +/- .7 8.2 +/- .6 8.7 +/- 1
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 18+/-2 16.7+/-1.7 15.8+/-1.8 14.8+/-1.6 13.2+/-1.1
Electrical Downtilt deg 5 to 18
Gain Ripple dB 15
Cross Polar Isolation Between Ports dB 20
Cross Polar Discrimination over 360 dB 13.1 11.5 10.7 10.4 12.9
Upper SideLobe Suppression Peak to +20 dB 12.3 12.2 11 11 12.8
VSWR - 1.5
3rd Order IMP 2 x 43 dBm dB -153
Maximum Power Input Watts 50

Electrical Specifications

Electrical Specification HeaderHIGH BAND RIGHT ARRAY (1695-2690 MHZ) [Y2]
Frequency Band MHz 1695-1880 1850-2010 1990-2170 2300-2400 2500-2690
Gain Typical dBi 8.3 8.3 8.4 8.5 9.4
Gain Over All Tilts dBi 7.9 +/- .4 7.9 +/- .4 7.8 +/- .6 8.2 +/- .3 8.5 +/- .9
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 30.1+/-2.8 17.7+/-0.3 15.8+/-2.1 14.8+/-1.3 13.4+/-0.8
Electrical Downtilt deg 5 to 18
Gain Ripple dB 15
Cross Polar Isolation Between Ports dB 20
Cross Polar Discrimination over 360 dB 12.8 11.7 11 10.3 13
Upper SideLobe Suppression Peak to +20 dB 11.7 11.5 12 12.3 12.1
VSWR - 1.5
3rd Order IMP 2 x 43 dBm dB -153
Maximum Power Input Watts 50

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

Dimensions - H x W x Dmm (in)564 x 380 x 380 (22.2 x 15 x 15)
Weight (Antenna Only)kg (lb)11.8 (26)
Weight (Mounting Hardware only)kg (lb)5.7 (12.6)
Packing size- HxWxDmm (in)815 x 465 x 470 (32.1 x 18.3 x 18.5)
Shipping Weightkg (lb)21.5 (47.4)

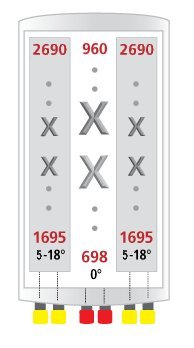

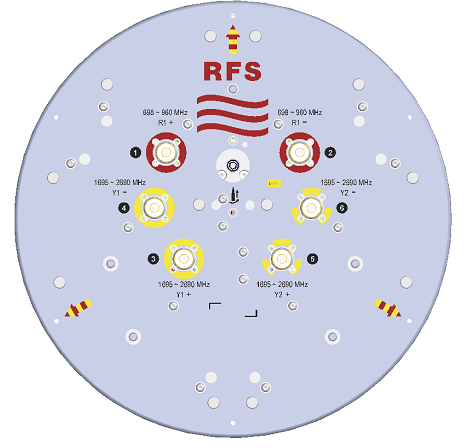

Connector type6 x 4.3-10 Long Neck Female/Bottom
Mounting Hardware MaterialBracket (Galvanized Steel) + Hose Clamps (Stainless Steel)
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (160 )
Wind Load @Rated Wind FrontN165
Wind Load @Rated Wind SideN165
Wind Load @Rated Wind RearN165
EnvironmentalETSI 300-019-2-4 Class 4.1E
Survival wind Velocity km/h200

Ordering Information

Model Number Configuration Mounting Hardware Mounting pipe Diameter Antenna Weight
AOXVBLL06_43-AT0 Omni-Directional Canister Manual Electrical Tilt Pole Bracket (Quantity 1 Included) 60-120mm (2.36-4.72 in) 17.5kg (38.6lbs)
AOXVBLL06_43-A-A20 Omni-Directional Canister Remote Electrical Tilt Pole Bracket (Quantity 1 Included) 60-120mm (2.36-4.72 in) 19.0kg (41.9lbs)

Notes

  • All electrical parameters are compliant with BASTA NGMN 10.0 requirements.
  • For additional mounting information please click "External Document Links".
