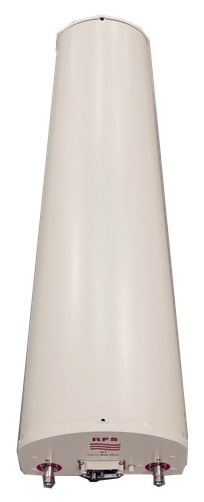

APXVA13X_43-C-A20
Dual Slant Polarized Single Band (2 Port) Antenna, 617-894MHz, 65 deg, 14.1 dBi, 1.3m(4.5ft), VET, RET, 5-18° Tilt Range

Rev : C | Rev date : 01 Jul 2020

FEATURES / BENEFITS

This antenna provides a two port platform for advanced use in 600MHz, 700MHz, and 800 MHz deployment scenarios in a high quality package design built to withstand harsh environments.

Narrow 12"" radome for difficult zoning sites.
Superior elevation performance across the entire electrical down tilt range.
High Gain performance for optimum site coverage, reduced power and signal integrity.

ACU-A20-SR Field Replaceable (Integrated) AISG RET motor

Technical features

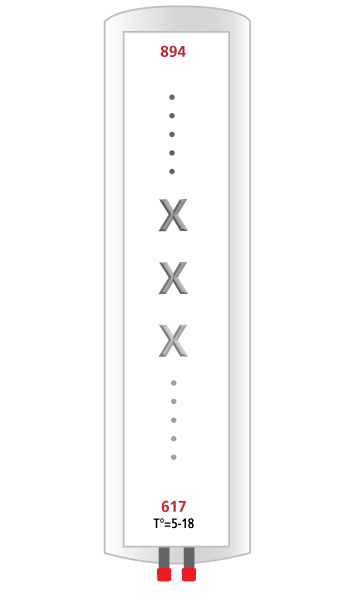

Electrical Specifications
Electrical Specification Header		LOW BAND ARRAY (617-894 MHZ) [R]
Frequency Range	MHz	617-698	698-806	806-894
Gain Typical	dBi	13.0	13.7	14.1
Gain	dBi	12.6+/-0.4	13.3+/-0.4	13.8+/-0.3
Horizontal Beamwidth	deg	71+/-1	68+/-2	63+/-2
Vertical Beamwidth	deg	20.6+/-1.3	17.9+/-1.6	15.3+/-0.9
Electrical Downtilt Range	deg	5 to 18
Upper Side Lobe Suppression Peak to +20	dB	22	22	17
Front to Back Ratio +/-30 Copolar	dB	23	24	24
Cross Polar Isolation	dB	25
3rd Order IMP 2 x 43dBm	dBc	-153
Cross Polarization (XPD) @ Boresight	dB	21	23	25
Cross Polarization (XPD) @ +/-60	dB	10	12	8
VSWR	-	1.5:1
Maximum Power Input	Watts	300

Electrical Specifications
Impedance	Ohm	50
Polarization	Deg	±45°

Mechanical Specifications

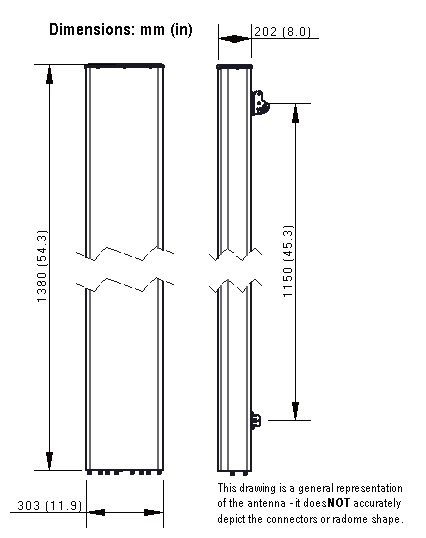

Dimensions - H x W x D	mm (in)	1380 x 303 x 202 (54.3 x 11.9 x 8)
Weight (Antenna Only)	kg (lb)	12.1 (26.7)
Weight (Mounting Hardware only)	kg (lb)	3.9 (8.6)
Packing size- HxWxD	mm (in)	1500 x 360 x 360 (59 x 14.2 x 14.2)
Shipping Weight	kg (lb)	20 (44.1)

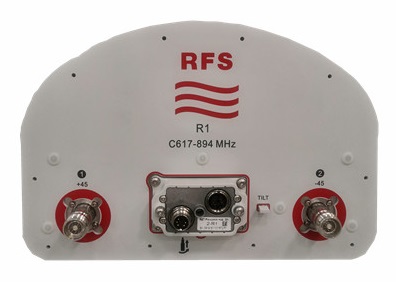

Connector type		2 x 4.3-10 Long Neck Female/Bottom + 2 AISG connectors (1 male, 1 female)
Adjustment mechanism		ACU-A20-SR Integrated RET solution AISG compliant (Field Replaceable) + Manual Override + External Tilt Indicator
Radome Material / Color		ASA / Light Grey RAL7035

Testing and Environmental
Temperature Range	°C (°F)	-40 to 60 (-40 to 140 )
Lightning protection		Direct Ground
Survival/Rated Wind Velocity	km/h	240 (160 )
Wind Load @Rated Wind Front	N	553
Wind Load @Rated Wind Side	N	484
Wind Load @Rated Wind Rear	N	730
Survival wind Velocity	km/h	240

Ordering Information
Order No.	Configuration	Mounting Hardware	Mounting pipe Diameter	Shipping Weight
APXVA13X_43-C-A20	ACU-A20-SR Semi-Internal Field Replaceable RET	APM40-2	60-120 mm	20 kg
