APXVAALL18_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET

Rev : I | Rev date : 16 Jan 2023

FEATURES / BENEFITS

  • MIMO 4x4 in low-band and mid-band
  • Integrated and fieldreplaceable RET
  • ACU model number: x2 ACU-A20-SR, ACU HW 05
  • Compliant with AISG V2.0 and 3GPP
  • AISG jumper cable included
  • Mechanical down tilt kit included


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Arrays (617-894 MHz) Ports 1-4
Frequency Band MHz 617-698 698-806 806-894
Gain dBi 14.1 14.9 15
Azimuth Beamwidth 3dB Deg 65 +/-2 65 +/-3 62 +/-5
Elevation Beamwidth 3dB Deg 14.4 +/-1 12.5 +/-1 10.7 +/-.8
Cross-Pol at Boresight dB 18 18 15
F/B at 180 Copolar dB 25 28 28
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 15 15 14
VSWR - 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14
Cross Polar Isolation dB 25 25 25
3rd Order PIM 2 x 46dBm dBc -153 -153 -153
Maximum CW Power per Port Watt 400 400 400
Gain Over All Tilts dBi 13.4 +/- .7 14.2 +/- .7 14.2 +/- .8
Cross-Pol over Sector dB 4 4 4
F/B at +/-30 Total Power dB 16 17 21
Upper Side Lobe Peak to +20 dB 20 15 14

Electrical Specifications

Electrical Specification HeaderMid Band Arrays (1695-2690 MHz) Ports 5-8
Frequency Band MHz 1695-1780 1850-1990 1995-2200 2200-2690
Gain dBi 17.8 18.2 18.5 18.2
Azimuth Beamwidth 3dB Deg 66 +/-5 64 +/-5 62 +/-8 58 +/-6
Elevation Beamwidth 3dB Deg 6.0 +/- .2 5.5 +/-.5 5.0 +/-.3 4.5 +/-.5
Cross-Pol at Boresight dB 21 18 16 18
F/B at 180 Copolar dB 29 26 25 21
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 14 16 17 16
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25
3rd Order PIM 2 x 46dBm dBc -153 -153 -153 -153
Maximum CW Power per Port Watt 300 300 300 300
Gain Over All Tilts dBi 17.0 +/- .6 17.4 +/- .6 17.8 +/- .5 17.5 +/- .6
Cross-Pol over Sector dB 7 8 9 2
F/B at +/-30 Total Power dB 22 21 21 19
Upper Side Lobe Peak to +20 dB 14 15 14 12

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

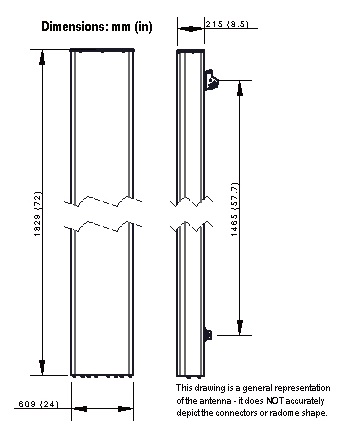

Dimensions - H x W x Dmm (in)1829 x 609 x 215 (72 x 24 x 8.5)
Weight (Antenna Only)kg (lb)42 (93)
Weight (Mounting Hardware only)kg (lb)7.5 (16.5)
Packing size- HxWxDmm (in)2020 x 735 x 285 (80 x 29 x 11.2)
Shipping Weightkg (lb)60 (132)
Connector type8 x 4.3-10 female at bottom
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h240 (150 )
Wind Load @Rated Wind FrontN1072
Wind Load @Rated Wind SideN326
Wind Load @Rated Wind RearN1160
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAALL18_43-U-NA20 ACU-A20-SR Field Replace RET included (2) APM40-5E Beam tilt kit & APM40-E10T (included) 60-120mm 60 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
