APXVB4L15B_43-C-I20
10-Ports, X-Pol, Panel Antenna, 1.5m, 1x 698-960/4x 1710-2690MHz, 65deg, Integrated RET

Rev : D | Rev date : 02 Mar 2023

FEATURES / BENEFITS

  • 2 ports / 1 cross pol system in low band (698-960MHz)
  • 8 ports / 4 cross pol systems in high band (1710-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 14.4 14.7 15.1
Gain Over all Tilts dBi 14 +/- 0.4 14.3 +/- 0.4 14.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.7 +/- 1.5 65.7 +/- 1.9 64.8 +/- 2.6
Elevation Beamwidth 3dB Deg 18 +/- 1.5 16.1 +/- 1.2 14.7 +/- 1
Cross Polar Discrimination at Boresight dB 21.7 20.2 21
Cross Polar Discrimination over Sector dB 10.1 7.8 7.8
F/B at +/-30deg Total Power dB 23.7 23.7 20.8
First Upper Side Lobe Suppression dB 21.5 18.2 12.3
Electrical Downtilt Deg 2 to 15
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 14.2 14.4 14.6 14.8 15
Gain Over all Tilts dBi 13.6 +/- 0.6 14.2 +/- 0.2 14.3 +/- 0.3 13.9 +/- 0.9 14.3 +/- 0.7
Azimuth Beamwidth 3dB Deg 63.4 +/- 4.3 64.5 +/- 4.3 64.6 +/- 3.3 64.2 +/- 2.7 60.9 +/- 4
Elevation Beamwidth 3dB Deg 13.4 +/- 0.6 12.3 +/- 0.8 11.7 +/- 0.8 10.6 +/- 0.7 9.6 +/- 0.8
Cross Polar Discrimination at Boresight dB 19.7 22.4 16.9 9.9 11.4
Cross Polar Discrimination over Sector dB 11 8.9 7.8 6 4.9
F/B at +/-30deg Total Power dB 21.9 22.7 23.2 22.4 20.5
First Upper Side Lobe Suppression dB 12.5 13.1 12.3 10.6 10.8
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 14.3 14.8 14.8 15 15.8
Gain Over all Tilts dBi 13.7 +/- 0.6 14.3 +/- 0.5 14.3 +/- 0.5 14.4 +/- 0.6 15 +/- 0.8
Azimuth Beamwidth 3dB Deg 69.3 +/- 8.5 68.5 +/- 4.1 66.4 +/- 6 62.8 +/- 3.8 58.5 +/- 4.7
Elevation Beamwidth 3dB Deg 12.9 +/- 0.5 12.2 +/- 0.7 11.7 +/- 0.7 10.4 +/- 0.8 9.6 +/- 0.6
Cross Polar Discrimination at Boresight dB 20.4 22.2 21.1 15.3 15.5
Cross Polar Discrimination over Sector dB 11.2 8.3 8.6 10 6.6
F/B at +/-30deg Total Power dB 22.1 22.5 22.9 23.4 23.2
First Upper Side Lobe Suppression dB 14.8 14.5 13.3 13.5 12.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y3]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 14.3 14.6 14.7 15 15.4
Gain Over all Tilts dBi 13.7 +/- 0.6 14.2 +/- 0.4 14.3 +/- 0.4 14.2 +/- 0.8 14.7 +/- 0.7
Azimuth Beamwidth 3dB Deg 62.8 +/- 4.6 63.9 +/- 4.2 64.1 +/- 3.5 64.1 +/- 3.5 59.7 +/- 3.7
Elevation Beamwidth 3dB Deg 13.4 +/- 1 12.3 +/- 0.6 11.8 +/- 0.8 10.5 +/- 0.6 9.5 +/- 0.9
Cross Polar Discrimination at Boresight dB 23.1 23.2 17.7 11.4 12.9
Cross Polar Discrimination over Sector dB 9.1 8.4 9.2 7.2 6.4
F/B at +/-30deg Total Power dB 20.8 22.3 23 23.8 20.7
First Upper Side Lobe Suppression dB 13.7 14.7 14.2 11.6 12
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y4]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 14.4 14.7 14.7 15 15.5
Gain Over all Tilts dBi 13.8 +/- 0.6 14.4 +/- 0.3 14.4 +/- 0.3 14.3 +/- 0.7 14.7 +/- 0.8
Azimuth Beamwidth 3dB Deg 68.8 +/- 8.5 67.7 +/- 2.1 65.6 +/- 5.4 62.4 +/- 2.9 58.7 +/- 4.4
Elevation Beamwidth 3dB Deg 12.9 +/- 0.7 12.2 +/- 0.6 11.6 +/- 0.7 10.5 +/- 0.7 9.6 +/- 0.7
Cross Polar Discrimination at Boresight dB 25.6 24.9 18.8 13 12.3
Cross Polar Discrimination over Sector dB 9.6 9.5 9.3 9.6 7.2
F/B at +/-30deg Total Power dB 21.1 20.9 21.1 22.4 20.6
First Upper Side Lobe Suppression dB 13.8 13.8 12.3 13.1 13.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

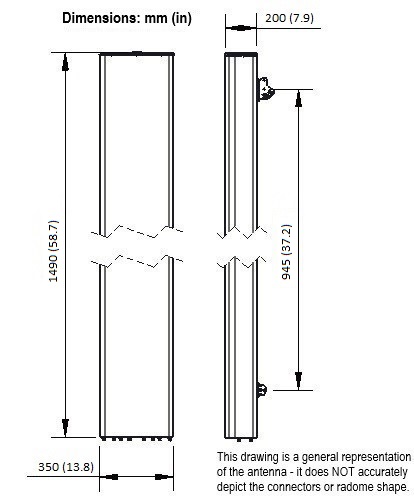

Dimensions - H x W x Dmm (in)1490 x 350 x 200 (58.7 x 13.8 x 7.9)
Weight (Antenna Only)kg (lb)20.9 (46.1)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1780 x 445 x 295 (70.1 x 17.5 x 11.6)
Shipping Weightkg (lb)29.2 (64.4)
Connector type10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN661
Wind Load @Rated Wind SideN378
Wind Load @Rated Wind RearN760
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVB4L15B_43-C-I20 Internal RET (ACU-I20-B5) APM50-B1 50-110mm 29.2 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
