APXVBB3U20_43-C-I20
Panel 10-ports antenna, X-Pol, 2m, 694-960/694-960/1427-2690/1427-2690/1427-2690 MHz, 65deg, 15.6/15.5/18.3/18.5/18.3 dBi, RET, 2-12°/2-12°/2-12°/2-12°/2-12°

Rev : C | Rev date : 06 Dec 2019


FEATURES / BENEFITS

10-port Multiband highly flexible platform for advanced use both in low and high band.
  • 4 ports / 2 systems in low band ultra-wide band
  • 6 ports / 3 systems in high band ultra-wide band
  • Slim design




Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Left Array (694-960 MHz) [R1]
Frequency Band Mhz 694-793 790-896 880-960
Gain Typical dBi 14.7 15.4 15.6
Gain dBi 14.4+/-0.3 14.9+/-0.5 15.1+/-0.5
VSWR - 1.5:1
Return Loss dB 14
Cross Polar Isolation dB 25
Interband Isolation dB 24
3rd Order IMP 2 x 43dBm dBc - 153
Maximum Effective Power
per Port		 Watts 300
Azimuth Beamwidth 3dB Deg 63.7+/-3 59.1+/-6 57.1+/-4.6
Cross Polar Discrimination at
Boresight		 dB 21.3 21.1 22.1
Cross Polar Discrimination
over Sector		 dB 6.4 6.6 4.5
Azimuth Beam Squint 3dB Deg -2.1+/-2.4 -0.9+/-1.7 0.5+/-4.1
Azimuth Beam Port to Port
Tracking @ Sector Edge		 dB 1.1 2.1 3.4
Azimuth Beam Roll Off @
Sector Edge		 dB 9.3+/-1.3 9.4+/-0.8 9+/-1.6
Sector Power Ratio - 5.6+/-1 5.7+/-1.3 6.3+/-1.6
F/B at +/-30° Copolar dB 24.1 26.9 28.6
F/B at +/-30° Total Power dB 18.9 22.6 22.4
Elevation Beamwidth 3 dB Deg 10.8+/-0.9 9.3+/-0.8 8.5+/-0.3
Electrical Downtilt Deg 2 to 12
First Upper Side Lobe
Suppression		 dB 16.9 15.8 13.8
Upper Side Lobe
Suppression Peak to +20°		 dB 16.3 15.7 13.9
Upper Side Lobe
Suppression 0 to +20°		 dB 15.2 15 13.6
Maximum Upper Side Lobe
Level		 dB 13.7 11.8 8.5
Null Fill dB 32.1 31.5 33.6

Electrical Specifications

Electrical Specification HeaderLow Band Right Array (694-960 MHz) [R2]
Frequency Band Mhz 694-793 790 - 896 880 - 960
Gain Typical dBi 14.6 15.3 15.5
Gain Over All Tilts dBi 14.3+/-0.3 14.8+/-0.5 15.0+/-0.5
VSWR - 1.5:1
Return Loss dB 14
Cross Polar Isolation dB 25
Interband isolation dB 24
3rd Order IMP 2 x 43dBm dBc -153
Maximum Effective Power per Port Watts 300
Azimuth Beamwidth 3dB Deg 63.8+/-4.9 59+/-5.9 57.6+/-4.9
Cross Polar Discrimination at Boresight dB 21.5 21.3 20.1
Cross Polar Discrimination over Sector dB 5.9 7.3 3.3
Azimuth Beam Squint 3dB Deg 1.2+/-2.8 -1.2+/-1.8 -2.8+/-4.7
Azimuth Beam Port to Port
Tracking @ Sector Edge		 dB 1.6 2.5 4.1
Azimuth Beam Roll Off @ Sector Edge dB 9.2+/-1.5 9.1+/-1.2 8.7+/-2
Sector Power Ratio - 5.9+/-1.1 6+/-1.2 6.6+/-1.6
F/B at +/-30 Copolar dB 25 29.6 28.3
F/B at +/-30 Total Power dB 19.7 23.4 22.6
Elevation Beamwidth 3 dB Deg 10.7+/-0.9 9.3+/-0.7 8.5+/-0.3
Electrical Downtilt Deg 2 to 12
First Upper Side Lobe Suppression dB 15 14.6 12.8
Upper Side Lobe Suppression Peak to +20 dB 14.2 14.5 12.9
Upper Side Lobe Suppression 0 to +20 dB 13.7 14.3 12.9
Maximum Upper Side Lobe Level dB 13.7 12.5 8.3
Null Fill dB 32.3 31.4 34.9

Electrical Specifications

Electrical Specification HeaderHigh Band Left Array (1427-2690 MHz) [Y1]
Frequency Band Mhz 1427 - 1517 1695 - 1880 1850 - 2200 2300 - 2500 2490 - 2690
Gain Typical dBi 14.7 16.4 18.3 18.0 18.1
Gain Over All Tilts dBi 14.3+/-0.4 15.8+/-0.6 17.2+/-1.1 17.6+/-0.4 17.8+/-0.3
VSWR - 1.5:1
Return Loss dB 14
Cross Polar Isolation dB 25
Interband isolation dB 24
3rd Order IMP 2 x 43dBm dBc -153
Maximum Effective Power per Port Watts 300
Azimuth Beamwidth 3dB Deg 71.3+/-4.3 62.4+/-6.2 54.2+/-4.8 50.1+/-3.3 50.4+/-2.7
Cross Polar Discrimination at Boresight dB 18 17.9 14.6 14.8 19.9
Cross Polar Discrimination over Sector dB 7.5 2 0.5 0.7 2.3
Azimuth Beam Squint 3dB Deg -0.8+/-1.8 -0.2+/-3.1 -1.3+/-2.2 -1.1+/-4.1 -2.3+/-1.8
Azimuth Beam Port to Port
Tracking @ Sector Edge		 dB 1.2 3.4 4.0 4.8 7.4
Azimuth Beam Roll Off @ Sector Edge dB 7.7+/-1.2 10.5+/-2.9 13.6+/-2.7 16+/-3.3 17+/-4.6
Sector Power Ratio - 7.6+/-1.1 4.4+/-2.6 2+/-1 1+/-0.3 1+/-0.3
F/B at +/-30 Copolar dB 21.9 22.6 25 26 25
F/B at +/-30 Total Power dB 20.5 23.8 24.2 25.0 24.8
Elevation Beamwidth 3 dB Deg 9.6+/-0.6 7.6+/-0.6 6.7+/-0.9 5.7+/-0.3 5.5+/-0.2
Electrical Downtilt Deg 2 to 12
First Upper Side Lobe Suppression dB 15 16.9 20.1 19.4 18.5
Upper Side Lobe Suppression Peak to +20 dB 14.8 15.3 15.5 14.6 14.7
Upper Side Lobe Suppression 0 to +20 dB 14.8 15 14.6 14.2 14
Maximum Upper Side Lobe Level dB 11.9 12.2 13.2 13.8 12.7
Null Fill dB 33.2 26.7 27.4 21.8 19.3

Electrical Specifications

Electrical Specification HeaderHigh Band Center Array (1427-2690 MHz) [Y2]
Frequency Band Mhz 1427 - 1517 1695 - 1880 1850 - 2200 2300 - 2500 2490 - 2690
Gain Typical dBi 15.2 17.2 18.1 17.9 18.5
Gain Over All Tilts dBi 14.8+/-0.4 16.6+/-0.6 17.5+/-0.6 17.6+/-0.3 18+/-0.5
VSWR - 1.5:1
Return Loss dB 14
Cross Polar Isolation dB 25
Interband isolation dB 24
3rd Order IMP 2 x 43dBm dBc -153
Maximum Effective Power per Port Watts 300
Azimuth Beamwidth 3dB Deg 69+/-5.5 63.1+/-3.3 64.6+/-4.6 59.4+/-4 53.2+/-2.9
Cross Polar Discrimination at Boresight dB 20 24.1 21.7 22 17
Cross Polar Discrimination over Sector dB 13.2 10.8 6.3 0.7 0.9
Azimuth Beam Squint 3dB Deg -1.6+/-4.2 -1.5+/-2.2 -1.3+/-2.6 0.6+/-3.8 -1.2+/-2.7
Azimuth Beam Port to Port
Tracking @ Sector Edge		 dB 2.1 2.3 1.9 5.1 6
Azimuth Beam Roll Off @ Sector Edge dB 7.8+/-1.4 9.1+/-1.4 10.5+/-1.7 12+/-2.9 13.4+/-4.6
Sector Power Ratio - 7.4+/-1.5 5.5+/-1.7 3.2+/-1.2 2.3+/-0.4 1.6+/-0.8
F/B at +/-30 Copolar dB 29.3 27.9 30.9 30.4 32
F/B at +/-30 Total Power dB 29.3 29.5 31.9 32.3 32.8
Elevation Beamwidth 3 dB Deg 9.9+/-0.5 7.7+/-0.5 6.7+/-0.7 5.9+/-0.4 5.6+/-0.3
Electrical Downtilt Deg 2 to 12
First Upper Side Lobe Suppression dB 18.6 21.1 20.3 16.5 13.2
Upper Side Lobe Suppression Peak to +20 dB 17.7 17.5 16.4 14.8 13.7
Upper Side Lobe Suppression 0 to +20 dB 17.6 17 15.6 14.8 13.7
Maximum Upper Side Lobe Level dB 12.9 14.4 15.2 14.6 13.7
Null Fill dB 31.4 28 28.1 21.1 25.3

Electrical Specifications

Electrical Specification HeaderHigh Band Left Array (1427-2690 MHz) [Y3]
Frequency Band Mhz 1427 - 1517 1695 - 1880 1850 - 2200 2300 - 2500 2490 - 2690
Gain Typical dBi 14.7 16.4 18.1 18.1 17.9
Gain Over All Tilts dBi 14.3+/-0.4 15.8+/-0.6 17.2+/-1.1 17.6+/-0.5 17.6+/-0.3
VSWR - 1.5:1
Return Loss dB 14
Cross Polar Isolation dB 25
Interband isolation dB 24
3rd Order IMP 2 x 43dBm dBc -153
Maximum Effective Power per Port Watts 300
Azimuth Beamwidth 3dB Deg 70.4+/-4.8 61.4+/-5.5 54.8+/-5.8 50.8+/-2.6 51.6+/-2.1
Cross Polar Discrimination at Boresight dB 18.3 19.7 15.3 16.8 21.3
Cross Polar Discrimination over Sector dB 5.7 1.6 0.5 0.9 0.7
Azimuth Beam Squint 3dB Deg -0.7+/-1.4 -1.4+/-2.1 -1+/-3.2 1.5+/-3.7 -1.7+/-2.6
Azimuth Beam Port to Port
Tracking @ Sector Edge		 dB 1.1 2.4 3.4 4.5 4.4
Azimuth Beam Roll Off @ Sector Edge dB 7.8+/-0.8 10.2+/-3 13.7+/-2.4 15.5+/-2.8 15.7+/-3.4
Sector Power Ratio - 7+/-0.9 4.5+/-2.2 1.9+/-0.9 1.2+/-0.4 1.1+/-0.3
F/B at +/-30 Copolar dB 24.7 24 24.1 25.9 25.4
F/B at +/-30 Total Power dB 22.6 25.3 25.2 25.0 24.1
Elevation Beamwidth 3 dB Deg 9.7+/-0.7 7.5+/-0.5 6.7+/-0.8 5.7+/-0.3 5.4+/-0.2
Electrical Downtilt Deg 2 to 12
First Upper Side Lobe Suppression dB 15 17.2 19.9 20.7 17.7
Upper Side Lobe Suppression Peak to +20 dB 14.4 15.9 14.9 15.1 13.9
Upper Side Lobe Suppression 0 to +20 dB 13.8 15.3 14.4 14.1 12.4
Maximum Upper Side Lobe Level dB 12 11.7 13.0 13.5 12.1
Null Fill dB 31.3 27.6 29.5 24 21.4

Mechanical Specifications

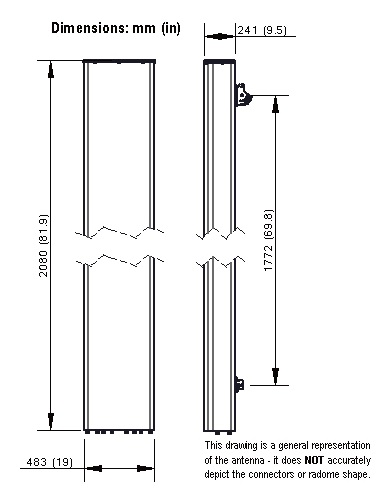

Dimensions - H x W x Dmm (in)2080 x 483 x 241 (81.9 x 19 x 9.5)
Weight (Antenna Only)kg (lb)50 (110.2)
Weight (Mounting Hardware only)kg (lb)11.5 (25.4)
Packing size- HxWxDmm (in)2240 x 560 x 406 (88.2 x 22 x 16)
Shipping Weightkg (lb)71.7 (158.1)
Connector type10 x 4.3-10 Female at bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (160 )
Wind Load @Rated Wind FrontN1208
Wind Load @Rated Wind SideN594
Wind Load @Rated Wind RearN1208
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVBB3U20_43-C-I20 Internal RET Included APM40-5E 60-120mm 71.7 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
