APXVBB4L15H2_43-C-I20
12-port X-Pol Antenna, 1.5m, 2x 690-960/4x 1695-2690MHz, 65deg, 16.0/15.3/18.8/19.3/19.1/18.7dBi, 2-12deg, Integrated RET

Rev : B | Rev date : 14 Feb 2023

FEATURES / BENEFITS

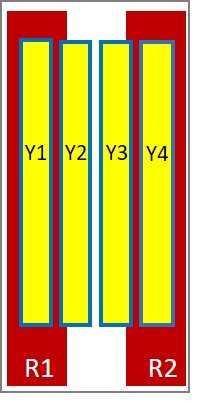

  • 4 ports / 2 cross pol systems in low band (690-960MHz)
  • 8 ports / 4 cross pol systems in high band (1695-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP




Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (690-960 MHz) [R1]
Frequency Band MHz 690-806 790-894 880-960
Gain Typical dBi 15 15.1 16
Gain Over All Tilts dBi 14.5 +/- 0.5 15 +/- 0.1 15 +/- 1
Azimuth Beamwidth 3dB Deg 61.1 +/- 7.5 66.7 +/- 7.5 69.2 +/- 6.3
Elevation Beamwidth 3dB Deg 15.4 +/- 1.5 13.6 +/- 1.1 12.5 +/- 0.8
Cross Polar Discriminationat Boresight dB 22.5 23.8 23
Cross Polar Discriminationover Sector dB 11 10 9
F/B at 180deg * dB 29 30 31
F/B at +/-30deg Total Power dB 17.7 20 20
First Upper Side Lobe Suppression dB 16 18 17
Electrical Downtilt Deg 2 to 12
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
VSWR - 1.5
Cross Polar Isolation dB 25
Interband Isolation dB 25
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderLow Band Array (690-960 MHz) [R2]
Frequency Band MHz 690-806 790-894 880-960
Gain Typical dBi 15 15.2 15.3
Gain Over all Tilts dBi 14 +/- 1 14.7 +/- 0.5 14.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 60.7 +/- 6.5 66.6 +/- 6 69.1 +/- 6.9
Elevation Beamwidth 3dB Deg 15.4 +/- 1.5 13.6 +/- 1.1 12.3 +/- 1
Cross Polar Discrimination at Boresight dB 23 24 24
Cross Polar Discrimination over Sector dB 10 9 7.2
F/B at 180deg * dB 29 30 31
F/B at +/-30deg Total Power dB 17.7 20 21
First Upper Side Lobe Suppression dB 15.2 17 16
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.2 17.2 18.6 18.2 18.8
Gain Over all Tilts dBi 16.7 +/- 0.5 17.1 +/- 0.1 17.7 +/- 0.9 17.7 +/- 0.5 18.2 +/- 0.6
Azimuth Beamwidth 3dB Deg 65.3 +/- 5 62.2 +/- 2.4 57.9 +/- 4.3 55.9 +/- 1.9 56 +/- 4
Elevation Beamwidth 3dB Deg 7.5 +/- 0.5 6.7 +/- 0.5 6.1 +/- 0.5 5.5 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 18.5 26.9 22 17.9 23
Cross Polar Discrimination over Sector dB 5.3 6.4 4.1 2 1
F/B at 180deg * dB 29 29 29 30 30
F/B at +/-30deg Total Power dB 24 24.7 24 22.1 23.7
First Upper Side Lobe Suppression dB 22 20.4 16 11.8 12.7
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.1 17.1 17.9 18.1 19.3
Gain Over all Tilts dBi 16.6 +/- 0.5 17 +/- 0.1 17.4 +/- 0.5 18 +/- 0.1 18.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 73.1 +/- 7 69.9 +/- 3.5 66 +/- 3.4 59.1 +/- 4 62 +/- 4.7
Elevation Beamwidth 3dB Deg 6.7 +/- 0.5 6.2 +/- 0.5 5.7 +/- 0.5 5 +/- 0.1 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 24.7 21.2 20 21.7 14
Cross Polar Discrimination over Sector dB 16 14.8 12 8.9 6
F/B at 180deg * dB 29 29 29 30 30
F/B at +/-30deg Total Power dB 26 26 25.9 27 27.9
First Upper Side Lobe Suppression dB 19.9 19 16.6 20.3 21
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y3]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.1 17 18 18.3 19.1
Gain Over All Tilts dBi 16.6 +/- 0.5 16.9 +/- 0.1 17.5 +/- 0.5 17.8 +/- 0.5 18.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 71 +/- 6.6 68.8 +/- 5.1 65.2 +/- 4.1 59.7 +/- 3.3 60.6 +/- 5
Elevation Beamwidth 3dB Deg 6.9 +/- 0.9 6.2 +/- 0.5 5.7 +/- 0.5 5 +/- 0.1 4.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 20 19.5 18 20.7 15
Cross Polar Discrimination over Sector dB 14.7 13.7 9 6.8 4
F/B at 180deg * dB 29 29 29 30 30
F/B at +/-30deg Total Power dB 26 26.9 27.3 26.8 27.2
First Upper Side Lobe Suppression dB 15.2 15 14 18.2 19.1
Electrical Downtilt Range Deg 2 to 12
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
VSWR - 1.5
Cross Polar Isolation dB 26
Interband Isolation dB 28
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y4]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.8 17.2 18.3 18.1 18.7
Gain Over all Tilts dBi 16.3 +/- 0.5 16.7 +/- 0.5 17.7 +/- 0.6 17.6 +/- 0.5 18.2 +/- 0.5
Azimuth Beamwidth 3dB Deg 66.5 +/- 7 63.9 +/- 4.5 60.4 +/- 7.3 55.9 +/- 4.8 55.4 +/- 3.7
Elevation Beamwidth 3dB Deg 7.4 +/- 0.5 6.7 +/- 0.5 6.1 +/- 0.5 5.5 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 19 19.9 19 20.4 19.6
Cross Polar Discrimination over Sector dB 6.5 8.7 5.5 2 1
F/B at 180deg * dB 29 29 29 30 30
F/B at +/-30deg Total Power dB 21.7 22.5 23.4 23.6 25
First Upper Side Lobe Suppression dB 22 19 16 12.6 12.7
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

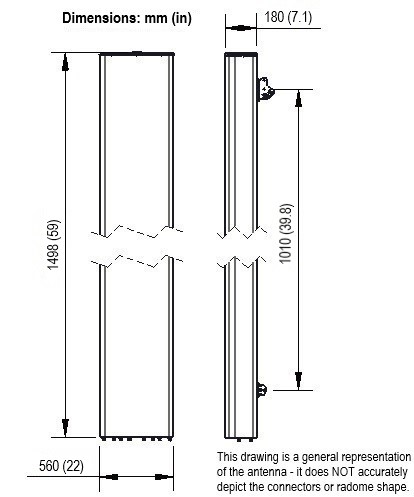

Dimensions - H x W x Dmm (in)1498 x 560 x 180 (59 x 22 x 7.1)
Weight (Antenna Only)kg (lb)32.7 (72.1)
Weight (Mounting Hardware only)kg (lb)5.5 (12.1)
Packing size- HxWxDmm (in)1698 x 655 x 300 (66.9 x 25.8 x 11.8)
Shipping Weightkg (lb)42.9 (94.6)

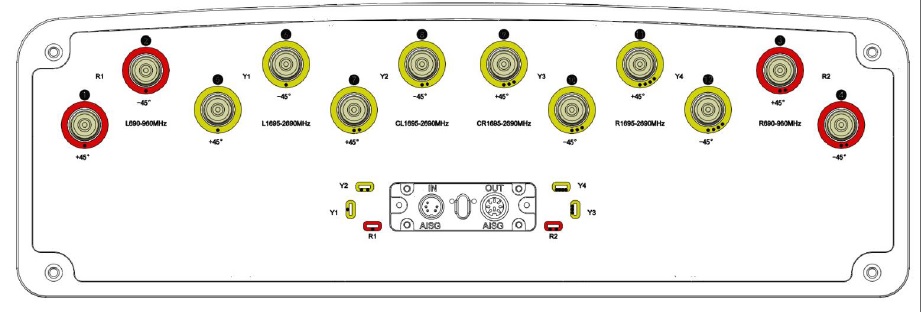

Connector type12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN775
Wind Load @Rated Wind SideN310
Wind Load @Rated Wind RearN865
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVBB4L15H2_43-C-I20 Internal RET(ACU-I20-H12I) APM50-H2 50-125mm 42.9 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
  • * Non BASTA value
