APXVBB4L26B_43-C-I20
12-Ports, X-Pol, Panel Antenna, 2.6m, 2x 698-960/4x 1710-2690MHz, 65deg, Integrated RET

Rev : D | Rev date : 22 Mar 2023

FEATURES / BENEFITS



  • 4 ports / 2 cross pol systems in low band (698-960MHz)
  • 8 ports / 4 cross pol systems in high band (1710-2690MHz)
  • Supporting 4x4 MIMO in low band and high band
  • Integrated and field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP




Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698 - 806 790 - 894 880 - 960
Gain Typical dBi 16.9 17.2 17.6
Gain Over all Tilts dBi 16.2 +/- 0.7 16.9 +/- 0.3 17.1 +/- 0.5
Azimuth Beamwidth 3dB Deg 65.6 +/- 2.4 64.8 +/- 1.9 67.6 +/- 3.4
Elevation Beamwidth 3dB Deg 8.7 +/- 0.6 7.9 +/- 0.6 7.1 +/- 0.4
Cross Polar Discrimination at Boresight dB 19.5 20.5 22.7
Cross Polar Discrimination over Sector dB 11.6 12.6 8.9
F/B at +/-30deg Total Power dB 21 23.4 22.3
First Upper Side Lobe Suppression dB 17.6 17.3 14.7
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R2]
Frequency Band MHz 698 - 806 790 - 894 880 - 960
Gain Typical dBi 16.7 17.2 17.6
Gain Over all Tilts dBi 16.1 +/- 0.6 16.8 +/- 0.4 17.1 +/- 0.5
Azimuth Beamwidth 3dB Deg 65.5 +/- 3.7 64.6 +/- 1.7 67.8 +/- 4.5
Elevation Beamwidth 3dB Deg 8.6 +/- 0.5 7.9 +/- 0.6 7.1 +/- 0.3
Cross Polar Discrimination at Boresight dB 20.3 20.8 19.6
Cross Polar Discrimination over Sector dB 10.5 12.1 9.6
F/B at +/-30deg Total Power dB 19.8 22.7 22.4
First Upper Side Lobe Suppression dB 17.4 16.9 15.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.3 16.3 17.7 17.3 17.3
Gain Over all Tilts dBi 15.7 +/- 0.6 15.7 +/- 0.6 16.4 +/- 1.3 16.6 +/- 0.7 16.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 58.1 +/- 8 63.1 +/- 6.4 58.2 +/- 10.9 54.5 +/- 3.6 51.2 +/- 4.9
Elevation Beamwidth 3dB Deg 7.9 +/- 0.5 7.2 +/- 0.5 6.8 +/- 0.7 6 +/- 0.3 5.4 +/- 0.3
Cross Polar Discrimination at Boresight dB 10.7 15.4 14.1 12.6 15.3
Cross Polar Discrimination over Sector dB 5.3 4.5 3.3 0.9 1
F/B at +/-30deg Total Power dB 21.2 20.5 22 21.6 22.8
First Upper Side Lobe Suppression dB 17.3 15.4 14.9 14.4 13.1
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.4 16.2 17.2 16.9 17.2
Gain Over all Tilts dBi 15.8 +/- 0.6 15.4 +/- 0.8 15.9 +/- 1.3 16.1 +/- 0.8 16.7 +/- 0.5
Azimuth Beamwidth 3dB Deg 57.8 +/- 7.5 62.7 +/- 5.9 59.1 +/- 8.9 57 +/- 4.3 50.5 +/- 5.1
Elevation Beamwidth 3dB Deg 7.2 +/- 0.4 6.6 +/- 0.5 6.2 +/- 0.6 5.5 +/- 0.4 5.1 +/- 0.3
Cross Polar Discrimination at Boresight dB 12 15.5 14.9 15.5 18.8
Cross Polar Discrimination over Sector dB 4.9 5 4.3 1.1 0.6
F/B at +/-30deg Total Power dB 21.7 21.4 21.5 21.5 20.5
First Upper Side Lobe Suppression dB 15.3 13.7 13.1 15.2 13.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y3]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.4 16.4 17.7 17.4 17.5
Gain Over all Tilts dBi 15.9 +/- 0.5 15.8 +/- 0.6 16.4 +/- 1.3 16.8 +/- 0.6 17 +/- 0.5
Azimuth Beamwidth 3dB Deg 56.8 +/- 6.7 64.1 +/- 6.9 58.5 +/- 12.4 54.4 +/- 4.3 50.4 +/- 4.4
Elevation Beamwidth 3dB Deg 7.8 +/- 0.6 7.2 +/- 0.6 6.8 +/- 0.8 6.1 +/- 0.4 5.6 +/- 0.3
Cross Polar Discrimination at Boresight dB 11.1 17.1 14.8 13.9 17.1
Cross Polar Discrimination over Sector dB 6.2 5.6 3.5 0.5 1.1
F/B at +/-30deg Total Power dB 20.9 22.5 23.1 21.9 22.4
First Upper Side Lobe Suppression dB 15.5 14.7 14.8 14.7 14.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y4]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.4 16.3 17.3 17 17.4
Gain Over all Tilts dBi 15.9 +/- 0.5 15.6 +/- 0.7 16.1 +/- 1.2 16.3 +/- 0.7 16.8 +/- 0.6
Azimuth Beamwidth 3dB Deg 57 +/- 6.5 63.1 +/- 5.8 58.9 +/- 10.5 56.8 +/- 4.5 50 +/- 5.6
Elevation Beamwidth 3dB Deg 7.3 +/- 0.4 6.7 +/- 0.4 6.3 +/- 0.7 5.5 +/- 0.4 5.1 +/- 0.3
Cross Polar Discrimination at Boresight dB 11.7 16.8 15.4 16.8 20.5
Cross Polar Discrimination over Sector dB 7 5.6 3.9 1 1.3
F/B at +/-30deg Total Power dB 21.1 21.9 21.6 21.4 20.7
First Upper Side Lobe Suppression dB 18 16.5 16.2 17.4 15
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

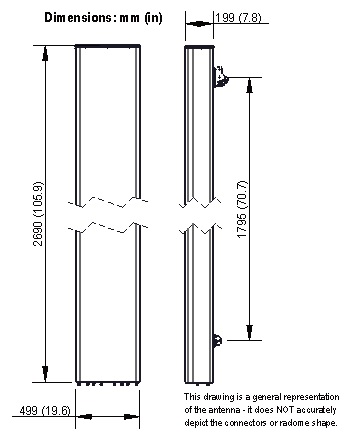

Dimensions - H x W x Dmm (in)2690 x 499 x 199 (105.9 x 19.6 x 7.8)
Weight (Antenna Only)kg (lb)47.5 (104.7)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)2940 x 560 x 275 (115.7 x 22 x 10.8)
Shipping Weightkg (lb)59.5 (131.2)
Connector type12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN1487
Wind Load @Rated Wind SideN578
Wind Load @Rated Wind RearN1743
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVBB4L26B_43-C-I20 Internal RET (ACU-I20-B6) APM50-B1 50-110mm 59.5 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements
  • For additional mounting information please click"External Document Links".
