APXVBB4L26H3_43-C-I20
12-Ports, X-Pol, Panel Antenna, 2.6m, 2x 690-960/4x 1695-2690MHz, 65deg, Integrated RET

Rev : E | Rev date : 20 Feb 2023

FEATURES / BENEFITS

12-port Multiband highly flexible platform for advanced use both in low and high band.
  • 4 ports / 2 systems in low band ultra-wide band
  • 8 ports / 4 systems in high band ultra-wide band
  • Integrated RET platform
  • SRET -Field replaceable
  • ACU HW Version -HRLS200608H1.00




Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (690-960 MHz) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 16.6 16.7 16.8
Gain Over all Tilts dBi 15.9 +/- 0.7 16.4 +/- 0.3 16.4 +/- 0.4
Azimuth Beamwidth 3dB Deg 69.6 +/- 6.5 63.7 +/- 3.2 63.1 +/- 5.4
Elevation Beamwidth 3dB Deg 8.9 +/- .7 8 +/- .4 7.4 +/- .5
Cross Polar Discrimination at Boresight dB 16.4 21.3 21.1
Cross Polar Discrimination over Sector dB 10.2 11.5 9.7
F/B at +/-30deg Total Power dB 20.2 22.1 22.4
First Upper Side Lobe Suppression dB 16.7 16.9 17.3
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderLow Band Array (690-960 MHz) [R2]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 16.6 16.8 16.9
Gain Over all Tilts dBi 16 +/- 0.6 16.5 +/- 0.3 16.6 +/- 0.3
Azimuth Beamwidth 3dB Deg 68.7 +/- 7.6 62.1 +/- 3.3 60.4 +/- 4.3
Elevation Beamwidth 3dB Deg 8.7 +/- .7 7.9 +/- .4 7.2 +/- .5
Cross Polar Discrimination at Boresight dB 16.6 21.6 21.7
Cross Polar Discrimination over Sector dB 10 11.4 9.7
F/B at +/-30deg Total Power dB 20.4 22.5 22.8
First Upper Side Lobe Suppression dB 14.7 16.2 15.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.7 18.2 19.4 18.7 18.2
Gain Over all Tilts dBi 17 +/- 0.7 17.7 +/- 0.5 18.5 +/- 0.9 18.2 +/- 0.5 17.7 +/- 0.5
Azimuth Beamwidth 3dB Deg 63.2 +/- 6.7 61.5 +/- 7.1 58.4 +/- 5.4 53.7 +/- 4.5 57.1 +/- 5.2
Elevation Beamwidth 3dB Deg 5.4 +/- .5 5 +/- .3 4.6 +/- .4 4.1 +/- .2 3.9 +/- .2
Cross Polar Discrimination at Boresight dB 19.6 23.7 20.2 15.4 18.9
Cross Polar Discrimination over Sector dB 4.7 9.4 4.7 0.8 1.9
F/B at +/-30deg Total Power dB 26.7 26.4 26 26.2 25.4
First Upper Side Lobe Suppression dB 18.8 18.7 18.9 19 17.1
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm);dBc;-153; dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.8 17.1 18.5 18.4 18.6
Gain Over all Tilts dBi 16.2 +/- 0.6 16.6 +/- 0.5 17.5 +/- 1 18 +/- 0.4 17.8 +/- 0.8
Azimuth Beamwidth 3dB Deg 66.5 +/- 6.9 67.1 +/- 3.4 65.3 +/- 5.8 58.7 +/- 4.3 59.7 +/- 7.6
Elevation Beamwidth 3dB Deg 6.7 +/- .5 6.2 +/- .4 5.8 +/- .6 5.2 +/- .3 4.7 +/- .3
Cross Polar Discrimination at Boresight dB 23.1 29.6 24.6 20.7 18.9
Cross Polar Discrimination over Sector dB 12.7 12.7 8.7 6.5 4
F/B at +/-30deg Total Power dB 25.3 24.9 26.4 29 28.1
First Upper Side Lobe Suppression dB 14.9 16.6 17.7 20.1 15.3
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y4]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.7 18.3 19.4 18.7 18.3
Gain Over all Tilts dBi 17 +/- 0.7 17.7 +/- 0.6 18.5 +/- 0.9 18.2 +/- 0.5 17.7 +/- 0.6
Azimuth Beamwidth 3dB Deg 62.2 +/- 6.6 60.9 +/- 6.4 58.5 +/- 5.5 53.5 +/- 3.7 56.6 +/- 4.6
Elevation Beamwidth 3dB Deg 5.4 +/- .5 4.9 +/- .3 4.5 +/- .3 4.1 +/- .2 3.9 +/- .2
Cross Polar Discrimination at Boresight dB 19.3 20.5 20.9 16.5 23
Cross Polar Discrimination over Sector dB 5.2 9.8 5.3 1.1 2.5
F/B at +/-30deg Total Power dB 26.6 27.2 25.9 26 26.4
First Upper Side Lobe Suppression dB 18.4 18.4 18.4 19.6 17.6
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y3]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.3 16.5 17.7 17.4 17.3
Gain Over all Tilts dBi 15.9 +/- 0.4 16.1 +/- 0.4 16.9 +/- 0.8 17.2 +/- 0.2 16.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 63.4 +/- 6.1 67.2 +/- 2.2 63.8 +/- 4.2 62.1 +/- 2 66.9 +/- 2.9
Elevation Beamwidth 3dB Deg 6.8 +/- .5 6.3 +/- .5 5.8 +/- .4 5.1 +/- .3 4.9 +/- .2
Cross Polar Discrimination at Boresight dB 17.9 17.1 17.2 18.6 14.6
Cross Polar Discrimination over Sector dB 13.1 12.3 8.1 7.2 4.3
F/B at +/-30deg Total Power dB 27.7 25.5 25.3 27.2 26.5
First Upper Side Lobe Suppression dB 17.3 19.6 16.8 20.7 14
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm);dBc;-153; dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

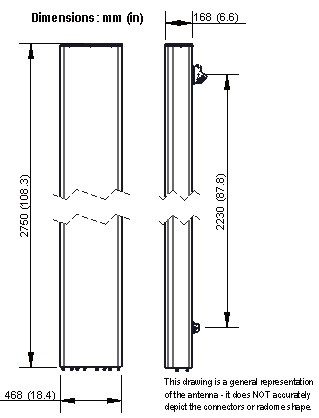

Dimensions - H x W x Dmm (in)2750 x 468 x 168 (108.3 x 18.4 x 6.6)
Weight (Antenna Only)kg (lb)45.6 (100.5)
Weight (Mounting Hardware only)kg (lb)9 (19.8)
Packing size- HxWxDmm (in)2930 x 544 x 292 (115.4 x 21.4 x 11.5)
Shipping Weightkg (lb)61 (134.5)
Connector type12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN1185
Wind Load @Rated Wind SideN525
Wind Load @Rated Wind RearN1325
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVBB4L26H3_43-C-I20 Internal RET(ACU-I20-H12I) APM50-HS 50-125mm 61.0 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
