APXVBB4L26H_43-C-I20

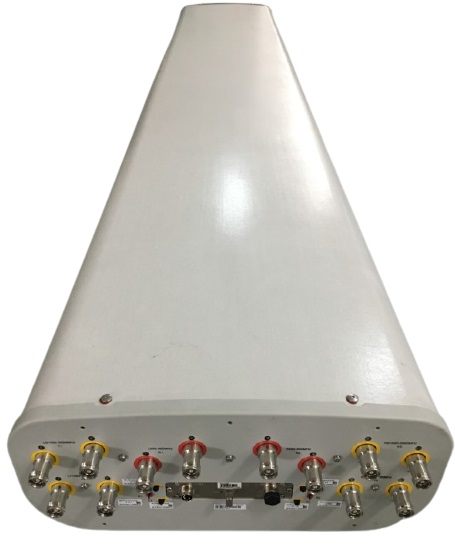

12-Ports, X-Pol, Panel Antenna, 2.6m, 2x 690-960/4x 1695-2690MHz, 65deg, Integrated RET

Rev : C | Rev date : 19 Feb 2023

FEATURES / BENEFITS



  • 4 ports / 2 cross pol systems in low band (690-960MHz)
  • 8 ports / 4 cross pol systems in high band (1695-2690MHz)
  • Supporting 4x4 MIMO in low band and high band
  • Integrated and field replaceable SRET
  • ACU HW Version: HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP




Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (690-960 MHz) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 16.1 16.8 17.4
Gain Over all Tilts dBi 16 +/- 0.1 16.3 +/- 0.5 16.9 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.5 +/- 6 62.6 +/- 2.1 61.2 +/- 4
Elevation Beamwidth 3dB Deg 8.5 +/- 0.5 7.9 +/- 0 7.2 +/- 0.5
Cross Polar Discrimination at Boresight dB 25 27 26
Cross Polar Discrimination over Sector dB 14 11.6 11
F/B at +/-30deg Total Power dB 23 23.3 24
First Upper Side Lobe Suppression dB 17 17 17
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderLow Band Array (690-960 MHz) [R2]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 16.3 16.7 17.3
Gain Over all Tilts dBi 15.8 +/- 0.5 16.2 +/- 0.5 16.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.1 +/- 6.5 62.1 +/- 3 61.1 +/- 5
Elevation Beamwidth 3dB Deg 8.6 +/- 0.5 7.9 +/- 0.1 7.2 +/- 0.5
Cross Polar Discrimination at Boresight dB 24 27 25.6
Cross Polar Discrimination over Sector dB 13 11 10
F/B at +/-30deg Total Power dB 22 24 25
First Upper Side Lobe Suppression dB 17 18 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

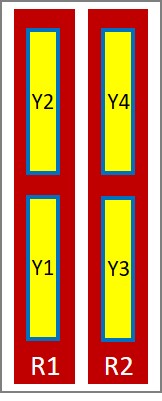

Electrical Specification HeaderHigh Band Arrays at Bottom (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.8 17.6 17.9 18 17.1
Gain Over all Tilts dBi 15.8 +/- 1 17.1 +/- 0.5 17.4 +/- 0.5 17.5 +/- 0.5 17 +/- 0.1
Azimuth Beamwidth 3dB Deg 72.7 +/- 7.6 63 +/- 6 59.3 +/- 4.9 55.6 +/- 6 54.8 +/- 3.5
Elevation Beamwidth 3dB Deg 7.5 +/- 0.5 6.7 +/- 0.5 6.3 +/- 0.5 5.5 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 17 20 17 14 19
Cross Polar Discrimination over Sector dB 5 7 4 1 1
F/B at +/-30deg Total Power dB 25 25 25 26 25
First Upper Side Lobe Suppression dB 13 14 14 17 20
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Arrays at Bottom (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.1 17.2 18.2 18 17.3
Gain Over all Tilts dBi 15.6 +/- 0.5 16.7 +/- 0.5 17.2 +/- 1 17 +/- 1 16.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 71.9 +/- 4.5 65.6 +/- 6 60.6 +/- 6.7 54.1 +/- 4.9 53.8 +/- 2.5
Elevation Beamwidth 3dB Deg 7.3 +/- 0.5 6.7 +/- 0.5 6.3 +/- 0.5 5.6 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 23.9 24.9 19 15 20
Cross Polar Discrimination over Sector dB 7 8.9 4 2 1
F/B at +/-30deg Total Power dB 25 26 27 27.7 26
First Upper Side Lobe Suppression dB 13 13 14 15.9 20
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Arrays at Top (1695-2690 MHz) [Y3]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.6 17.7 18.7 18.1 17.2
Gain Over all Tilts dBi 15.6 +/- 1 17.2 +/- 0.5 17.7 +/- 1 17.2 +/- 0.9 16.9 +/- 0.3
Azimuth Beamwidth 3dB Deg 72.8 +/- 9.1 62 +/- 4.4 59.3 +/- 4 57.1 +/- 5.6 55.6 +/- 4.5
Elevation Beamwidth 3dB Deg 7.6 +/- 0.5 6.8 +/- 0.5 6.4 +/- 0.5 5.8 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 21 21 17 15 21
Cross Polar Discrimination over Sector dB 6.9 6 4 2 1
F/B at +/-30deg Total Power dB 24 25 26 27 25
First Upper Side Lobe Suppression dB 14 14 14 15.9 19
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Arrays at Bottom (1695-2690 MHz) [Y4]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.1 17.2 18.2 17.8 17.1
Gain Over all Tilts dBi 15.6 +/- 0.5 16.7 +/- 0.5 17.2 +/- 1 16.9 +/- 0.9 16.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 71.6 +/- 5 65.2 +/- 5.5 60 +/- 7.1 53.6 +/- 3.5 54.8 +/- 3.5
Elevation Beamwidth 3dB Deg 7.3 +/- 0.5 6.7 +/- 0.5 6.3 +/- 0.5 5.7 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 22 25 21 17.5 20
Cross Polar Discrimination over Sector dB 7 9.2 4 2 0.1
F/B at +/-30deg Total Power dB 25 26 24 26 26
First Upper Side Lobe Suppression dB 14 14 14 15.5 21
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

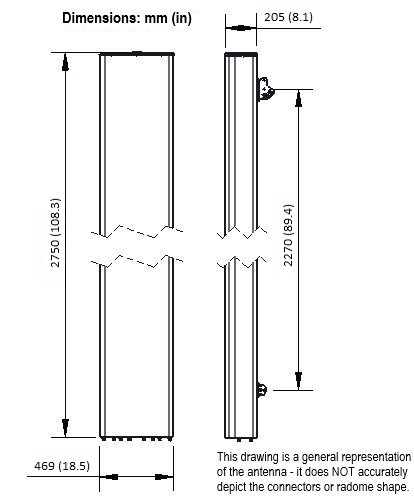

Dimensions - H x W x Dmm (in)2750 x 469 x 205 (108.3 x 18.5 x 8.1)
Weight (Antenna Only)kg (lb)45.6 (100.5)
Weight (Mounting Hardware only)kg (lb)9 (19.8)
Packing size- HxWxDmm (in)2930 x 544 x 330 (115.4 x 21.4 x 13)
Shipping Weightkg (lb)62.4 (137.6)

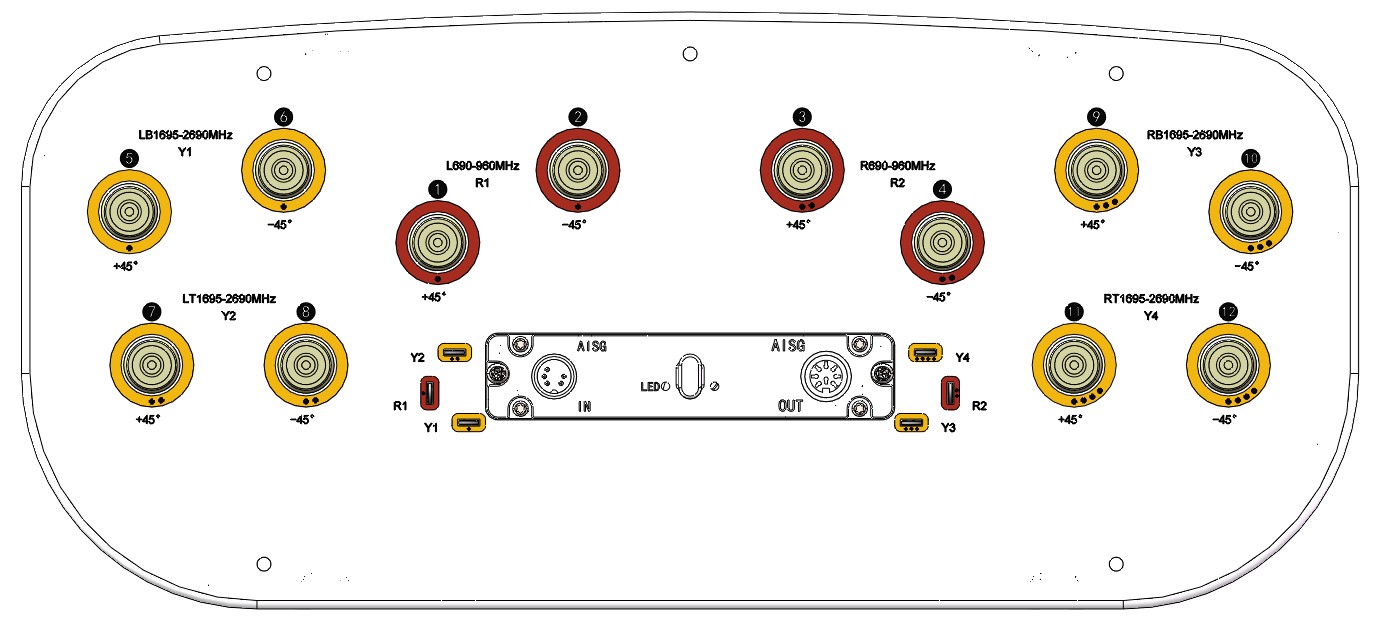

Connector type12 x 4.3-10 female/bottom + 4 AISG connectors (2 male, 2 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN817
Wind Load @Rated Wind SideN340
Wind Load @Rated Wind RearN769
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVBB4L26H_43-C-I20 Internal RET(ACU-I20-H12J) APM50-HS 50-125mm 62.4 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click"External Document Links".
