APXVBBLL15B_43-C-I20
8-Ports, X-Pol, Panel Antenna, 1.5m, 2x 698-960/2x 1710-2690MHz, 65deg, Integrated RET

Rev : D | Rev date : 20 Feb 2023

FEATURES / BENEFITS



  • 4 ports / 2 cross pol systems in low band (698-960MHz)
  • 4 ports / 2 cross pol systems in high band (1710-2690MHz)
  • Supporting 4x4 MIMO
  • Integrated and field replaceable SRET
  • ACU HW Version -2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 14.6 14.8 15
Gain Over all Tilts dBi 13.6 +/- 1 14.4 +/- 0.4 14.7 +/- 0.3
Azimuth Beamwidth 3dB Deg 62 +/- 5.1 60.7 +/- 2.8 62 +/- 3.1
Elevation Beamwidth 3dB Deg 16.5 +/- 1.5 14.9 +/- 0.8 13.8 +/- 0.9
Cross Polar Discrimination at Boresight dB 16.8 18.6 20.5
Cross Polar Discrimination over Sector dB 6.5 11 7.8
F/B at +/-30deg Total Power dB 19.3 22.1 22.7
First Upper Side Lobe Suppression dB 17.8 19.5 17.7
Electrical Downtilt Deg 2 to 15
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R2]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 14.6 14.8 15
Gain Over all Tilts dBi 13.8 +/- 0.8 14.5 +/- 0.3 14.8 +/- 0.2
Azimuth Beamwidth 3dB Deg 62.6 +/- 4.7 62.1 +/- 3.7 62.4 +/- 2.5
Elevation Beamwidth 3dB Deg 16.2 +/- 1.4 14.8 +/- 0.9 13.6 +/- 0.8
Cross Polar Discrimination at Boresight dB 16.6 18.4 22.5
Cross Polar Discrimination over Sector dB 6.9 10.8 7.6
F/B at +/-30deg Total Power dB 18.8 21.5 23.5
First Upper Side Lobe Suppression dB 16.7 17.8 16.2
Electrical Downtilt Deg 2 to 15
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.3 17.5 18.1 18.1 18.9
Gain Over all Tilts dBi 16.9 +/- 0.4 17.2 +/- 0.3 17.5 +/- 0.6 17.7 +/- 0.4 18.5 +/- 0.4
Azimuth Beamwidth 3dB Deg 57.4 +/- 3.5 60.2 +/- 3.7 58.4 +/- 6.4 61.2 +/- 7.2 52.8 +/- 5.1
Elevation Beamwidth 3dB Deg 6.8 +/- 0.5 6.3 +/- 0.3 5.8 +/- 0.6 5.1 +/- 0.2 4.7 +/- 0.4
Cross Polar Discrimination at Boresight dB 14.4 16 15.6 17.4 22.1
Cross Polar Discrimination over Sector dB 8.7 6.4 5.1 1.8 0.9
F/B at +/-30deg Total Power dB 22.7 22.7 22.7 19.1 21.5
First Upper Side Lobe Suppression dB 20.5 20.6 20.4 17.8 15.9
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.3 17.5 18 18.2 19
Gain Over all Tilts dBi 16.9 +/- 0.4 17.2 +/- 0.3 17.5 +/- 0.5 17.8 +/- 0.4 18.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 56.7 +/- 3.8 58.5 +/- 3 58 +/- 5.8 59.5 +/- 4.4 52.4 +/- 4.6
Elevation Beamwidth 3dB Deg 6.9 +/- 0.5 6.3 +/- 0.4 5.9 +/- 0.6 5.1 +/- 0.2 4.7 +/- 0.4
Cross Polar Discrimination at Boresight dB 13.7 15.9 14.2 15.4 21.7
Cross Polar Discrimination over Sector dB 8.3 5.2 5.6 1.1 0.8
F/B at +/-30deg Total Power dB 22.3 22.7 22.6 19.4 20.7
First Upper Side Lobe Suppression dB 19.3 21.5 20.1 15.1 13.9
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

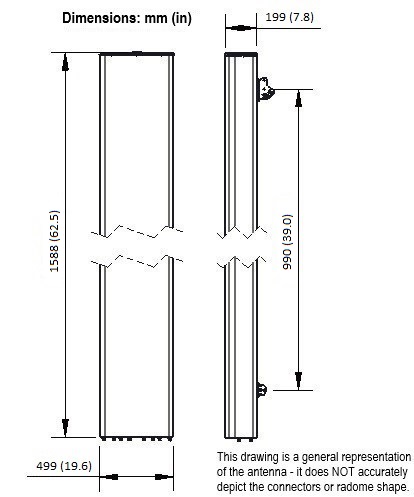

Dimensions - H x W x Dmm (in)1588 x 499 x 199 (62.5 x 19.6 x 7.8)
Weight (Antenna Only)kg (lb)27 (59.5)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1840 x 595 x 295 (72.4 x 23.4 x 11.6)
Shipping Weightkg (lb)37 (81.6)
Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN974
Wind Load @Rated Wind SideN333
Wind Load @Rated Wind RearN1019
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVBBLL15B_43-C-I20 Internal RET (ACU-I20-B4) APM50-B1 50-110mm 37.0 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
