APXVBBLL15H2_43-C-I20
8-Ports, X-Pol, Panel Antenna, 1.5m, 2x 690-960/2x 1695-2690MHz, 65deg, Integrated RET

Rev : J | Rev date : 19 Feb 2023

FEATURES / BENEFITS

  • 4 ports / 2 cross pol systems in low band (690-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Supports 4x4 MIMO in low band and high band
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP
  • Optimized radome for low windload.


Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 15 15.3 15.2
Gain Over all Tilts dBi 14.3 +/- 0.7 14.8 +/- 0.5 14.8 +/- 0.4
Azimuth Beamwidth 3dB Deg 61 +/- 4.9 58.1 +/- 5.2 57.8 +/- 7
Elevation Beamwidth 3dB Deg 14.6 +/- 1.1 13.6 +/- 1 12.9 +/- 0.9
Cross Polar Discrimination at Boresight dB 22.7 23 22.8
Cross Polar Discrimination over Sector dB 10.1 9 6
F/B at +/-30deg Total Power dB 18.1 20.9 21.1
First Upper Side Lobe Suppression dB 13.9 14.8 13.7
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R2]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 15 15.3 15.2
Gain Over all Tilts dBi 14.4 +/- 0.6 14.8 +/- 0.5 14.8 +/- 0.4
Azimuth Beamwidth 3dB Deg 63.3 +/- 6.6 59.5 +/- 5.9 60.6 +/- 7.7
Elevation Beamwidth 3dB Deg 14.6 +/- 1 13.5 +/- 0.9 12.9 +/- 0.8
Cross Polar Discrimination at Boresight dB 22.7 24.6 25.7
Cross Polar Discrimination over Sector dB 10.6 9.9 5.8
F/B at +/-30deg Total Power dB 19.5 21.2 20.7
First Upper Side Lobe Suppression dB 14.3 15.4 14.3
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.1 17.6 18 17.8 18
Gain Over all Tilts dBi 16.5 +/- 0.6 17.2 +/- 0.4 17.5 +/- 0.5 17.3 +/- 0.5 17.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 68.7 +/- 4.9 64 +/- 5.5 61.6 +/- 4.1 62.2 +/- 6.4 60.9 +/- 6.3
Elevation Beamwidth 3dB Deg 6.5 +/- 0.4 6.2 +/- 0.3 5.8 +/- 0.5 5.3 +/- 0.2 4.9 +/- 0.3
Cross Polar Discrimination at Boresight dB 18.8 25.8 21.7 17.8 20.9
Cross Polar Discrimination over Sector dB 4.4 7.6 4.9 3.5 0.3
F/B at +/-30deg Total Power dB 24.9 26.4 25.5 25 25.4
First Upper Side Lobe Suppression dB 15.1 16.3 16.2 19.4 18.2
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.2 17.8 17.8 17.7 18.1
Gain Over all Tilts dBi 16.6 +/- 0.6 17.3 +/- 0.5 17.4 +/- 0.4 17.2 +/- 0.5 17.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.5 +/- 3.1 64 +/- 4.1 61.9 +/- 3.5 61.2 +/- 6.6 61.3 +/- 6.1
Elevation Beamwidth 3dB Deg 6.6 +/- 0.4 6.1 +/- 0.3 5.8 +/- 0.5 5.2 +/- 0.3 4.8 +/- 0.3
Cross Polar Discrimination at Boresight dB 17.5 24 22.7 17.9 20
Cross Polar Discrimination over Sector dB 5.7 8.2 5.2 2.3 0.5
F/B at +/-30deg Total Power dB 25.5 27.3 26 26 25.2
First Upper Side Lobe Suppression dB 16.4 16.7 16.6 22 20.4
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

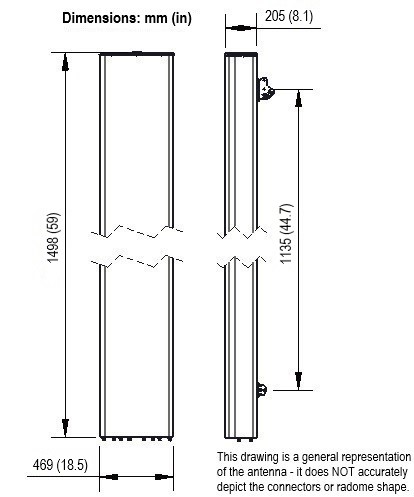

Dimensions - H x W x Dmm (in)1498 x 469 x 205 (59 x 18.5 x 8.1)
Weight (Antenna Only)kg (lb)21.5 (47.4)
Weight (Mounting Hardware only)kg (lb)5.5 (12.1)
Packing size- HxWxDmm (in)1698 x 544 x 315 (66.9 x 21.4 x 12.4)
Shipping Weightkg (lb)29.8 (65.7)

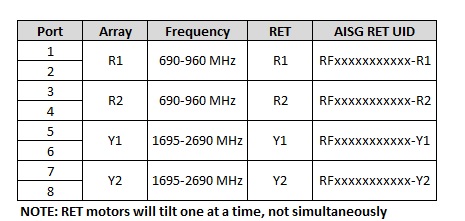

Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground

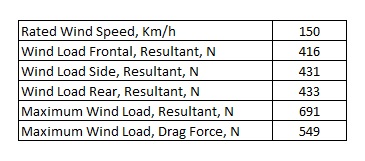

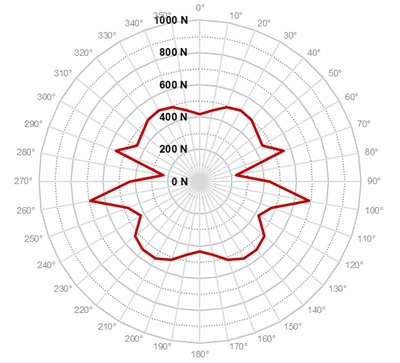

Survival/Rated Wind Velocitykm/h200 (150 )
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBBLL15H2_43-C-I20 Internal RET(ACU-I20-H12J) APM50-H2 50-125mm 29.8 Kg
APXVBBLL15H2_43-C-I20S (Material Code: 50016379) Internal RET(ACU-X20H) Dynamic Site Sharing mode APM50-H2 50-125mm 29.9 Kg
APXVBBLL15H2_43-C-I20S (Material Code: 50016465) Internal RET(ACU-X20H) Static Site Sharing mode APM50-H2 50-125mm 29.9 Kg

Notes

  • All electrical parameters are compliant with NGMN P-BASTA 12 requirements.
  • For additional mounting information please click "External Document Links".
