APXVBBLL20B_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.0m, 2x 698-960/2x 1710-2690MHz, 65deg, Integrated RET

Rev : C | Rev date : 20 Feb 2023

FEATURES / BENEFITS



  • 4 ports / 2 cross pol systems in low band (698-960MHz)
  • 4 ports / 2 cross pol systems in high band (1710-2690MHz)
  • Supporting 4x4 MIMO
  • Integrated and field replaceable SRET
  • ACU HW Version -2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 16 16.4 16.7
Gain Over all Tilts dBi 14.9 +/- 1.1 16 +/- 0.4 16.5 +/- 0.2
Azimuth Beamwidth 3dB Deg 61 +/- 8.6 54.6 +/- 6.3 49.7 +/- 6.1
Elevation Beamwidth 3dB Deg 10.3 +/- 1.3 9.1 +/- 0.6 8.2 +/- 0.6
Cross Polar Discrimination at Boresight dB 19.3 19.4 18.6
Cross Polar Discrimination over Sector dB 7.7 10.3 9.9
F/B at +/-30deg Total Power dB 19.5 22.5 21.4
First Upper Side Lobe Suppression dB 11.3 11.3 10.8
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (698-960MHZ) [R2]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 16.1 16.5 16.7
Gain Over all Tilts dBi 14.9 +/- 1.2 16 +/- 0.5 16.4 +/- 0.3
Azimuth Beamwidth 3dB Deg 61.5 +/- 7.3 55.9 +/- 6.7 50.4 +/- 7.1
Elevation Beamwidth 3dB Deg 10.3 +/- 1.3 9.1 +/- 0.7 8.2 +/- 0.5
Cross Polar Discrimination at Boresight dB 18.9 19.6 22
Cross Polar Discrimination over Sector dB 8.1 9.2 9.1
F/B at +/-30deg Total Power dB 20.6 21.4 20.9
First Upper Side Lobe Suppression dB 11.4 11.4 11
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1710-2690 MHZ) [Y1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.8 18.3 18.6 18.5 19
Gain Over all Tilts dBi 17.3 +/- 0.5 17.7 +/- 0.6 17.9 +/- 0.7 18.1 +/- 0.4 18.4 +/- 0.6
Azimuth Beamwidth 3dB Deg 59.7 +/- 6.5 63.2 +/- 7.3 60.4 +/- 11.8 60.6 +/- 8.9 53.7 +/- 5.3
Elevation Beamwidth 3dB Deg 5.4 +/- 0.5 4.9 +/- 0.4 4.6 +/- 0.5 4 +/- 0.3 3.8 +/- 0.4
Cross Polar Discrimination at Boresight dB 15.8 17.3 14.1 15.1 19.2
Cross Polar Discrimination over Sector dB 8.4 5.7 5.1 1.6 1.1
F/B at +/-30deg Total Power dB 22.6 24.5 23.4 20.8 21.2
First Upper Side Lobe Suppression dB 16.3 16.2 15.8 16.3 15.2
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1710-2690 MHZ) [Y2]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.7 18.2 18.2 18.5 18.9
Gain Over all Tilts dBi 17.1 +/- 0.6 17.6 +/- 0.6 17.7 +/- 0.5 18 +/- 0.5 18.2 +/- 0.7
Azimuth Beamwidth 3dB Deg 61.4 +/- 7.4 62.3 +/- 7 60.3 +/- 11 63.5 +/- 8.9 55.3 +/- 6
Elevation Beamwidth 3dB Deg 5.4 +/- 0.5 5 +/- 0.3 4.7 +/- 0.5 4.1 +/- 0.4 3.8 +/- 0.4
Cross Polar Discrimination at Boresight dB 16 16.8 15 13.8 17.7
Cross Polar Discrimination over Sector dB 8.2 4.3 3.9 1.3 1.2
F/B at +/-30deg Total Power dB 22.7 25 22.9 22.7 22.4
First Upper Side Lobe Suppression dB 17 18.2 17.5 17.1 15.7
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

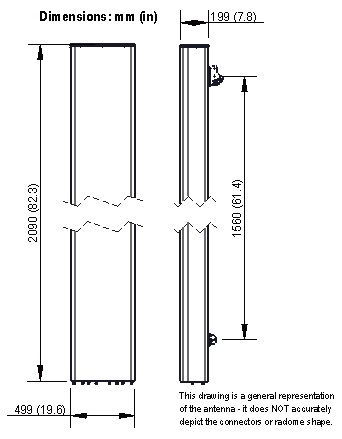

Dimensions - H x W x Dmm (in)2090 x 499 x 199 (82.3 x 19.6 x 7.8)
Weight (Antenna Only)kg (lb)36 (79.4)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)2340 x 595 x 295 (92.1 x 23.4 x 11.6)
Shipping Weightkg (lb)47 (103.6)
Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN1281
Wind Load @Rated Wind SideN438
Wind Load @Rated Wind RearN1352
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVBBLL20B_43-C-I20 Internal RET (ACU-I20-B4) APM50-B1 50-110mm 47.0 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
