8-ports, X-Pol, Panel Antenna, 2.0m, 2x 690-960/2x 1695-2690MHz, 65deg, Integrated RET
Rev : J | Rev date : 19 Feb 2023
FEATURES / BENEFITS
- 4 ports / 2 cross pol systems in low band (690-960MHz)
- 4 ports / 2 cross pol systems in high band (1695-2690MHz)
- Supports 4x4 MIMO in low band and high band
- Integrated and field replaceable SRET
- ACU HW Version -HRLS200608H1.00
- Compliant with AISG V2.0 and 3GPP

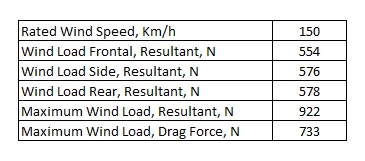

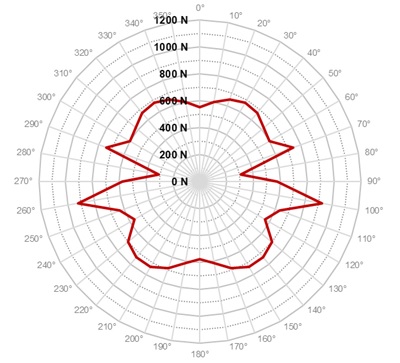

- Optimized radome for low windload.
External Document Links
- All electrical parameters are compliant with NGMN P-BASTA 12 requirements.
- For additional mounting information please click "External Document Links".
- Radiating patterns: Request pattern files
