APXVBBLL20H_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.0m, 2x690-960/2x1695-2690MHz, 65deg, Integrated RET

Rev : G | Rev date : 20 Feb 2023

FEATURES / BENEFITS


  • 4 ports / 2 cross pol systems in low band (690-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Supports 4x4 MIMO in low band and high band
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 15.2 15.7 16.1
Gain Over all Tilts dBi 14.7 +/- 0.5 15.2 +/- 0.5 15.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 65.9 +/- 6 59.7 +/- 4 56.5 +/- 6.4
Elevation Beamwidth 3dB Deg 11.6 +/- 0.5 10.5 +/- 0.5 9.6 +/- 0.5
Cross Polar Discrimination at Boresight dB 25 26 25
Cross Polar Discrimination over Sector dB 13 11 10
F/B at +/-30deg Total Power dB 21 24 24
First Upper Side Lobe Suppression dB 16 16 19
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R2]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 15.2 15.8 16.2
Gain Over all Tilts dBi 14.7 +/- 0.5 15.3 +/- 0.5 15.7 +/- 0.5
Azimuth Beamwidth 3dB Deg 65.8 +/- 6.4 60.1 +/- 3.5 57.4 +/- 5.5
Elevation Beamwidth 3dB Deg 11.6 +/- 0.5 10.5 +/- 0.5 9.6 +/- 0.5
Cross Polar Discrimination at Boresight dB 27 33 30
Cross Polar Discrimination over Sector dB 12 11 9
F/B at +/-30deg Total Power dB 18 23 23
First Upper Side Lobe Suppression dB 16 16 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.5 16.9 17.9 17.8 17.4
Gain Over all Tilts dBi 16.0 +/- 0.5 16.6 +/- 0.3 17.1 +/- 0.8 17.3 +/- 0.5 17 +/- 0.4
Azimuth Beamwidth 3dB Deg 69.6 +/- 6.9 66 +/- 3.5 66.1 +/- 3.6 54.6 +/- 4.4 67 +/- 6
Elevation Beamwidth 3dB Deg 7.5 +/- 0.5 6.7 +/- 0.5 6.3 +/- 0.5 5.5 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 24.2 24 21 19 15
Cross Polar Discrimination over Sector dB 5 5 6 2 1
F/B at +/-30deg Total Power dB 23 22 24 25 24
First Upper Side Lobe Suppression dB 18 16 17 20 21
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.5 17 17.9 17.8 17.4
Gain Over all Tilts dBi 16.0 +/- 0.5 16.5 +/- 0.5 16.9 +/- 1 17.3 +/- 0.5 17 +/- 0.4
Azimuth Beamwidth 3dB Deg 69.6 +/- 7.9 64.8 +/- 3 63.3 +/- 4.5 53.2 +/- 3.9 62.3 +/- 5
Elevation Beamwidth 3dB Deg 7.6 +/- 0.5 6.7 +/- 0.5 6.2 +/- 1 5.1 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 20 23 22 19 16
Cross Polar Discrimination over Sector dB 6 6 6 2 1
F/B at +/-30deg Total Power dB 24 25 25 26.7 25
First Upper Side Lobe Suppression dB 16 16 17 19.5 16
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

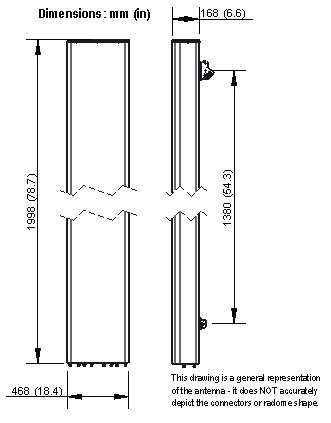

Dimensions - H x W x Dmm (in)1998 x 468 x 168 (78.7 x 18.4 x 6.6)
Weight (Antenna Only)kg (lb)26.4 (58.2)
Weight (Mounting Hardware only)kg (lb)5.5 (12.1)
Packing size- HxWxDmm (in)2198 x 544 x 278 (86.5 x 21.4 x 10.9)
Shipping Weightkg (lb)37.1 (81.8)
Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN962
Wind Load @Rated Wind SideN274
Wind Load @Rated Wind RearN1223
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBBLL20H_43-C-I20 Internal RET(ACU-I20-H12I) APM50-H2 50-125mm 37.1 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
