APXVBBLL26H_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.6m, 2x 690-960/2x 1695-2690MHz, 65deg, Integrated RET

Rev : J | Rev date : 20 Feb 2023

FEATURES / BENEFITS


  • 4 ports / 2 cross pol systems in low band (690-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Supports 4x4 MIMO in low band and high band
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 16.1 16.8 17.1
Gain Over all Tilts dBi 16 +/- 0.1 16.3 +/- 0.5 16.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.1 +/- 5.5 63.4 +/- 3 63.1 +/- 4.2
Elevation Beamwidth 3dB Deg 8.9 +/- 0.5 8.2 +/- 0.5 7.4 +/- 0.5
Cross Polar Discrimination at Boresight dB 26 29 29
Cross Polar Discrimination over Sector dB 14 13 12.7
F/B at +/-30deg Total Power dB 22 23 24
First Upper Side Lobe Suppression dB 15 16 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R2]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 16.4 16.7 17
Gain Over all Tilts dBi 15.9 +/- 0.5 16.2 +/- 0.5 16.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 65.9 +/- 6.4 62.2 +/- 3.4 61.8 +/- 4.5
Elevation Beamwidth 3dB Deg 8.8 +/- 0.5 8 +/- 0.1 7.4 +/- 0.5
Cross Polar Discrimination at Boresight dB 27 29 29
Cross Polar Discrimination over Sector dB 14 12 12
F/B at +/-30deg Total Power dB 22 23 24
First Upper Side Lobe Suppression dB 15 16 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.2 17.2 18.2 17.7 17.8
Gain Over all Tilts dBi 15.7 +/- 0.5 16.7 +/- 0.5 17.2 +/- 1 17.2 +/- 0.5 17.3 +/- 0.5
Azimuth Beamwidth 3dB Deg 71.5 +/- 3.5 67.3 +/- 6.5 62.4 +/- 7.5 51.5 +/- 2.5 54.1 +/- 3.5
Elevation Beamwidth 3dB Deg 7.5 +/- 0.5 6.8 +/- 0.5 6.4 +/- 0.5 5.6 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 21 21 19 15 17
Cross Polar Discrimination over Sector dB 5 8 5 2 1
F/B at +/-30deg Total Power dB 25.4 25 25 27 26
First Upper Side Lobe Suppression dB 14 15 15 18 21
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.4 17.5 18.2 17.8 17.7
Gain Over all Tilts dBi 15.9 +/- 0.5 16.6 +/- 0.9 17.2 +/- 1 17.3 +/- 0.5 17.2 +/- 0.5
Azimuth Beamwidth 3dB Deg 71.2 +/- 4.9 66.1 +/- 5.6 62.2 +/- 6 51.3 +/- 3.3 54.5 +/- 4.4
Elevation Beamwidth 3dB Deg 7.5 +/- 0.5 6.9 +/- 0.5 6.4 +/- 0.5 5.7 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 22 20 18 16 17
Cross Polar Discrimination over Sector dB 6 8 5 2 1
F/B at +/-30deg Total Power dB 25 25 26 26.2 25
First Upper Side Lobe Suppression dB 16 16.4 17 19 22
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

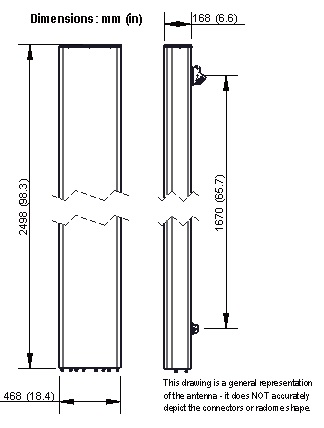

Dimensions - H x W x Dmm (in)2498 x 468 x 168 (98.3 x 18.4 x 6.6)
Weight (Antenna Only)kg (lb)34 (75)
Weight (Mounting Hardware only)kg (lb)9 (19.8)
Packing size- HxWxDmm (in)2698 x 544 x 292 (106.2 x 21.4 x 11.5)
Shipping Weightkg (lb)46.5 (102.5)
Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN1207
Wind Load @Rated Wind SideN372
Wind Load @Rated Wind RearN1533
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBBLL26H_43-C-I20 Internal RET(ACU-I20-H12I) APM50-HS 50-125mm 46.5 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
