APXVBL15B_43-C-I20

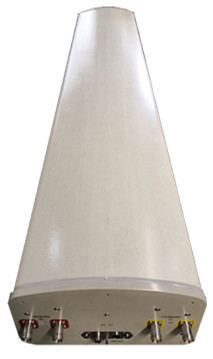

4-Ports, X-Pol, Panel Antenna, 1x698-960/1x1710-2690MHz, 65deg, Integrated RET

Rev : C | Rev date : 02 Mar 2023

FEATURES / BENEFITS

  • 2 ports / 1 system in low band
  • 2 ports / 1 system in high band
  • SRET -Field replaceable / ACU HW Version -2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (698-960 MHZ) [R1]
Frequency Band MHz 698 - 806 790 - 896 880 - 960
Gain Typical dBi 14.3 14.9 15.3
Gain Over all Tilts dBi 13.8 +/- 0.5 14.4 +/- 0.5 14.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.8 +/- 2.0 65.4 +/- 1.5 64.9 +/- 1.0
Elevation Beamwidth 3dB Deg 17.8 +/- 1.9 15.7 +/- 1 14.6 +/- 0.5
Cross Polar Discrimination at Boresight dB 22.6 22.1 21.0
Cross Polar Discrimination over Sector dB 11.0 8.8 10.0
F/B at +/-30deg Total Power dB 25.0 24.0 23.0
First Upper Side Lobe Suppression dB 19.8 18.0 15.0
Electrical Downtilt Deg 2 to 15
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1710-2690 MHZ) [Y1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2200 2300 - 2400 2500 - 2690
Gain Typical dBi 16.7 16.7 17.1 16.8 17.2
Gain Over all Tilts dBi 15.7 +/- 1.0 16.1 +/- 0.6 16.6 +/- 0.5 15.9 +/- 0.9 16.5 +/- 0.7
Azimuth Beamwidth 3dB Deg 63.3 +/- 5.6 67.8 +/- 3.3 64.5 +/- 8.9 68.3 +/- 4.7 61.4 +/- 3.5
Elevation Beamwidth 3dB Deg 7.3 +/- 0.5 6.7 +/- 0.7 6.2 +/- 0.5 5.7 +/- 0.7 5.2 +/- 0.5
Cross Polar Discrimination at Boresight dB 19.7 21.2 21.0 14.2 18.8
Cross Polar Discrimination over Sector dB 9.2 9.8 8.3 7.5 5.0
F/B at +/-30deg Total Power dB 19.9 20.5 22.0 23.6 20.7
First Upper Side Lobe Suppression dB 16.6 18.0 17.0 15.2 13.1
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

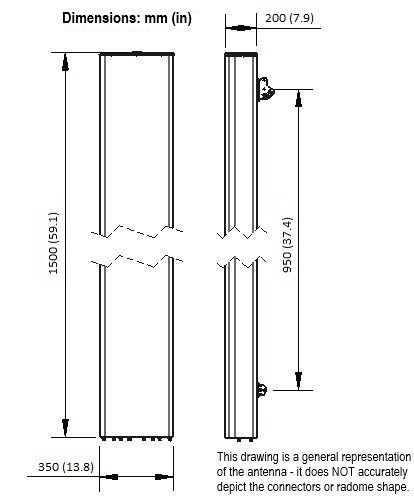

Dimensions - H x W x Dmm (in)1500 x 350 x 200 (59.1 x 13.8 x 7.9)
Weight (Antenna Only)kg (lb)16.2 (35.7)
Packing size- HxWxDmm (in)1750 x 445 x 295 (68.9 x 17.5 x 11.6)
Shipping Weightkg (lb)26.7 (58.9)

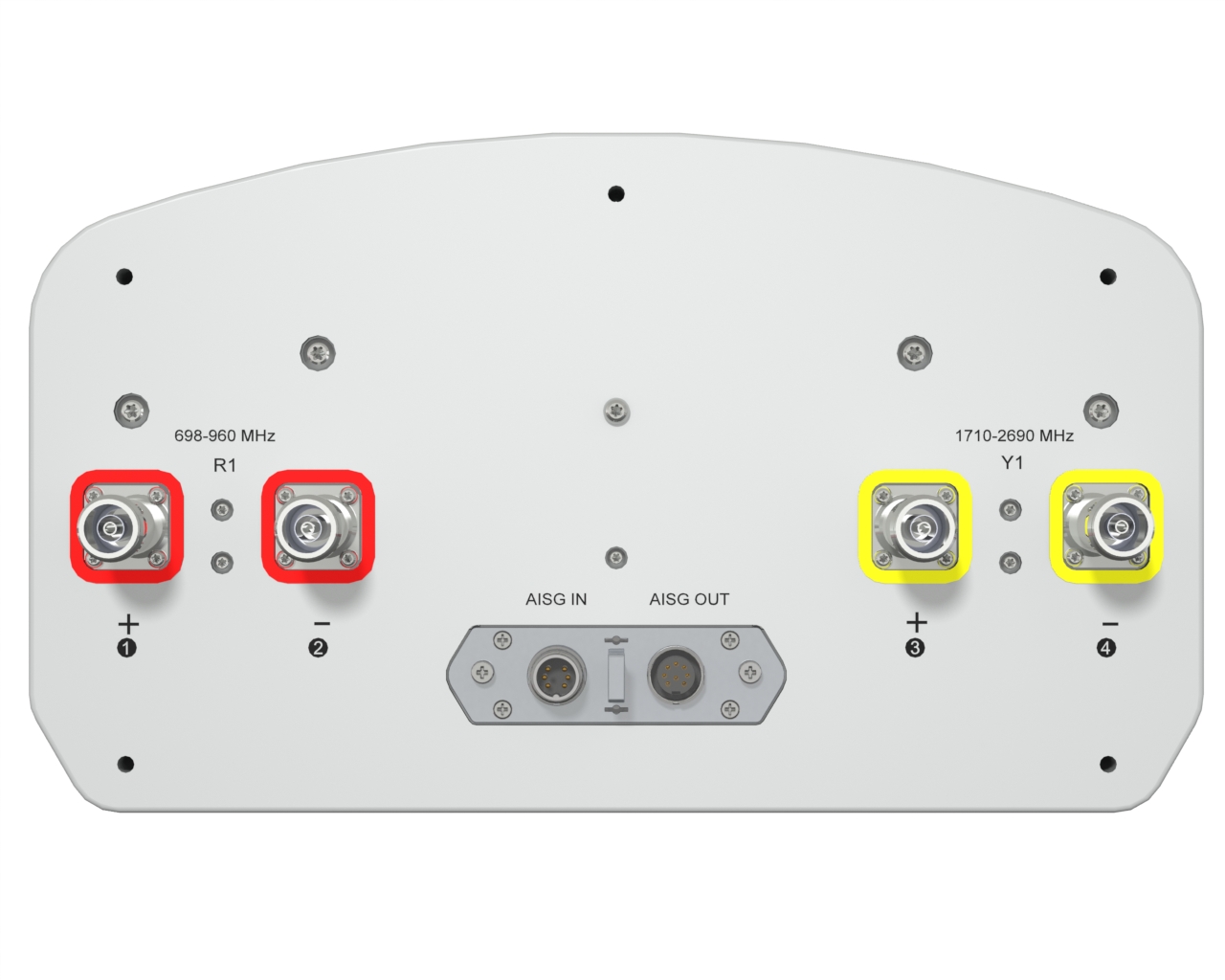

Connector type4 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Gray

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h220 (160 )
Wind Load @Rated Wind FrontN683
Wind Load @Rated Wind SideN331
Wind Load @Rated Wind RearN789
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBL15B_43-C-I20 Internal RET(ACU-I20-B2) APM50-B1 50-110 mm 26.7 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
