APXVBLL15H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 1.5m, 1x694-960/2x1695-2690MHz, 65deg, Integrated RET

Rev : H | Rev date : 18 Feb 2023

FEATURES / BENEFITS



  • 2 ports / 1 cross pol system in low band (694-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

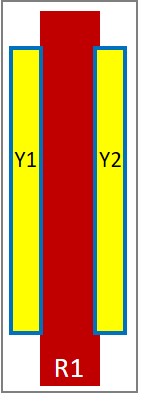

Electrical Specification HeaderLow Band Array (694-960 MHz) [R1]
Frequency Band MHz 694 - 806 790 - 894 880 - 960
Gain Typical dBi 14.7 15.3 15.6
Gain Over all Tilts dBi 14.2 +/- 0.5 14.8 +/- 0.5 15.1 +/- 0.5
Azimuth Beamwidth 3dB Deg 68.7 +/- 2 65.9 +/- 2.5 62.9 +/- 1.3
Elevation Beamwidth 3dB Deg 15.1 +/- 1 13.4 +/- 0.5 12.6 +/- 0.5
Cross Polar Discrimination at Boresight dB 20 21 24
Cross Polar Discrimination over Sector dB 8 8 7
F/B at +/-30deg Total Power dB 26 25 24.3
First Upper Side Lobe Suppression dB 17 17 18
Electrical Downtilt Deg 2 to 14
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm);dBc;-153; dBc -153
Maximum Effective Power per Port Watt 300

Electrical Specifications

Electrical Specification HeaderHigh Band Left Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.9 17.3 17.9 18 18.1
Gain Over all Tilts dBi 16.4 +/- 0.5 16.8 +/- 0.5 16.9 +/- 1 17.5 +/- 0.5 18 +/- 0.1
Azimuth Beamwidth 3dB Deg 69 +/- 5.5 67.3 +/- 4 67 +/- 5 63.3 +/- 2.5 59.8 +/- 5.1
Elevation Beamwidth 3dB Deg 6.3 +/- 0.5 6 +/- 0.1 5.5 +/- 0.5 5 +/- 0.1 4.7 +/- 0.5
Cross Polar Discrimination at Boresight dB 25.4 23 23 26 20.9
Cross Polar Discrimination over Sector dB 13 10 10 13 7
F/B at +/-30deg Total Power dB 24 28 26 23 20.2
First Upper Side Lobe Suppression dB 18 21 21 22.9 19
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Left Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.8 17.2 17.4 17.5 18.3
Gain Over all Tilts dBi 16.3 +/- 0.5 16.7 +/- 0.5 16.9 +/- 0.5 17.1 +/- 0.4 17.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 69.1 +/- 4 68 +/- 4 66.8 +/- 5.5 63.6 +/- 2.6 61 +/- 4.5
Elevation Beamwidth 3dB Deg 6.3 +/- 0.5 6 +/- 0.1 5.5 +/- 0.5 5 +/- 0.1 4.7 +/- 0.5
Cross Polar Discrimination at Boresight dB 21 21.6 24 24 27
Cross Polar Discrimination over Sector dB 8 9 8.4 9 3
F/B at +/-30deg Total Power dB 23 25 24 22 20
First Upper Side Lobe Suppression dB 17.4 19 20 19.3 19
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

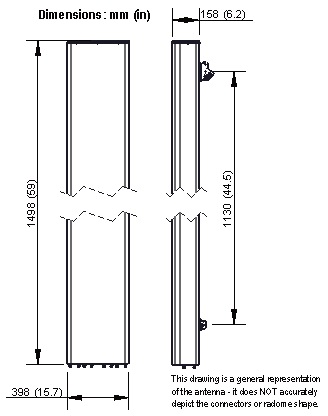

Dimensions - H x W x Dmm (in)1498 x 398 x 158 (59 x 15.7 x 6.2)
Weight (Antenna Only)kg (lb)20.2 (44.5)
Weight (Mounting Hardware only)kg (lb)4 (12.1)
Packing size- HxWxDmm (in)1678 x 493 x 278 (66.1 x 19.4 x 10.9)
Shipping Weightkg (lb)27.5 (60.6)

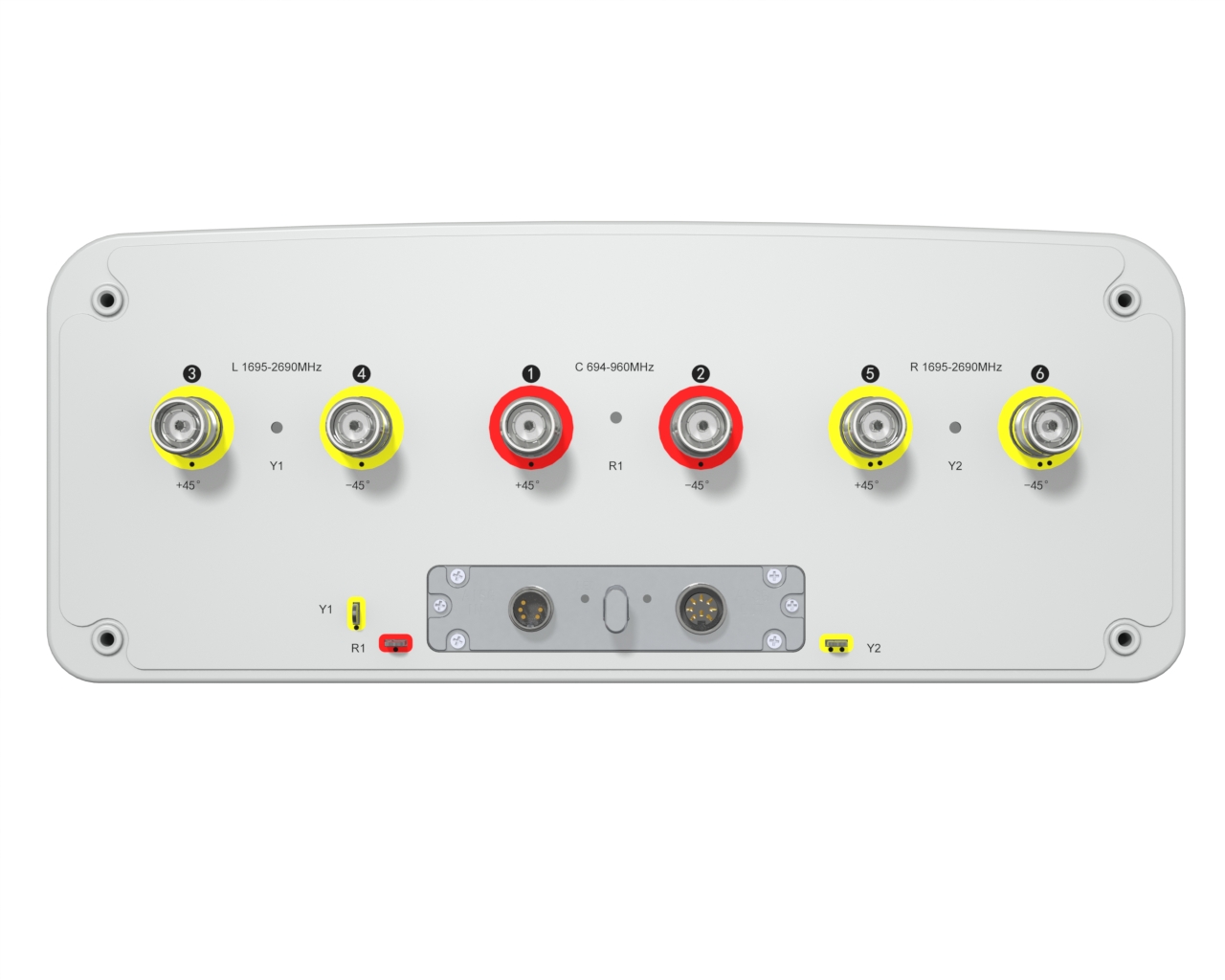

Connector type6x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN399
Wind Load @Rated Wind SideN345
Wind Load @Rated Wind RearN463
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBLL15H_43-C-I20 Internal RET (ACU-I20-H12I) APM50-H1 50-125mm 27.5 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
