APXVBLL20B_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.0m, 1x 698-960/2x 1710-2690MHz, 65deg, Integrated RET

Rev : J | Rev date : 13 Mar 2023

FEATURES / BENEFITS



  • 2 ports / 1 cross pol system in low band (698-960MHz)
  • 4 ports / 2 cross pol systems in high band (1710-2690MHz)
  • Supporting 4x4 MIMO in high band
  • Integrated and field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP




Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 15.6 16.3 16.1
Gain Over all Tilts dBi 15.1 +/- 0.5 15.5 +/- 0.8 15.8 +/- 0.3
Azimuth Beamwidth 3dB Deg 66.1 +/- 1.8 64.6 +/- 2.5 63 +/- 1
Elevation Beamwidth 3dB Deg 12.2 +/- 1.1 10.9 +/- 0.7 9.6 +/- 1
Cross Polar Discrimination at Boresight dB 26 24.3 20.9
Cross Polar Discrimination over Sector dB 10.1 10.2 11.1
F/B at +/-30deg Total Power dB 24.6 24.1 22.7
First Upper Side Lobe Suppression dB 15.3 13.7 9
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 16.8 16.9 17.2 17 17.1
Gain Over all Tilts dBi 16.1 +/- 0.7 16.6 +/- 0.3 16.8 +/- 0.4 16.2 +/- 0.8 16.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 66.2 +/- 7 67 +/- 3.5 66 +/- 4 69 +/- 3.2 64.8 +/- 5.3
Elevation Beamwidth 3dB Deg 6.6 +/- 0.4 6.2 +/- 0.3 5.8 +/- 0.6 5.1 +/- 0.4 4.7 +/- 0.3
Cross Polar Discrimination at Boresight dB 26.3 23 22.9 18.6 17
Cross Polar Discrimination over Sector dB 7.5 6.1 6.2 8.8 5.8
F/B at +/-30deg Total Power dB 19.5 20.4 22.4 23 22.3
First Upper Side Lobe Suppression dB 17.3 17.1 17.8 15.7 15.1
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 16.7 16.9 17.1 17.1 17.3
Gain Over all Tilts dBi 16 +/- 0.7 16.6 +/- 0.3 16.7 +/- 0.4 16 +/- 1.1 16.7 +/- 0.6
Azimuth Beamwidth 3dB Deg 66 +/- 6.8 66.7 +/- 3.6 66 +/- 4.4 69.5 +/- 3.3 64.3 +/- 4.5
Elevation Beamwidth 3dB Deg 6.7 +/- 0.4 6.3 +/- 0.4 5.9 +/- 0.7 5.2 +/- 0.4 4.7 +/- 0.3
Cross Polar Discrimination at Boresight dB 20 18.9 19.4 17.2 17.5
Cross Polar Discrimination over Sector dB 6.4 6.1 6.7 6.9 5.2
F/B at +/-30deg Total Power dB 19 21.1 22.1 22.9 21.7
First Upper Side Lobe Suppression dB 17.8 16.8 19.2 15.1 17.9
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

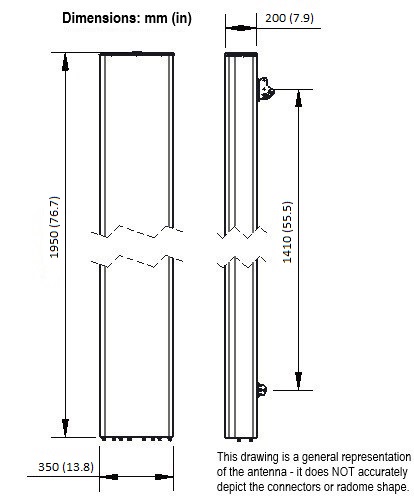

Dimensions - H x W x Dmm (in)1950 x 350 x 200 (76.8 x 13.8 x 7.9)
Weight (Antenna Only)kg (lb)24.5 (54)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)2200 x 445 x 295 (86.6 x 17.5 x 11.6)
Shipping Weightkg (lb)33.5 (73.8)
Connector type6x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN880
Wind Load @Rated Wind SideN456
Wind Load @Rated Wind RearN498
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBLL20B_43-C-I20 Internal RET(ACU-I20-B3) APM50-B1 50-110mm 33.5 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
