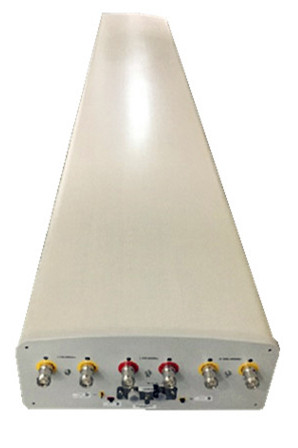

APXVBLL20H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.0m, 1x694-960/2x1695-2690, 65deg, Integrated RET

Rev : F | Rev date : 18 Feb 2023

FEATURES / BENEFITS



  • 2 ports / 1 cross pol system in low band (694-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Supporting 4x4 MIMO in high band
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP




Technical features

Electrical Specifications

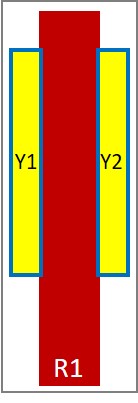

Electrical Specification HeaderLow Band Array (694-960 MHz) [R1]
Frequency Band MHz 694 - 806 790 - 894 880 - 960
Gain Typical dBi 15.8 16.5 16.2
Gain Over all Tilts dBi 15.3 +/- 0.5 16 +/- 0.5 16 +/- 0.2
Azimuth Beamwidth 3dB Deg 68 +/- 2 65.1 +/- 2.5 62.1 +/- 2.1
Elevation Beamwidth 3dB Deg 11.3 +/- 1 10.1 +/- 0.5 9.3 +/- 0.5
Cross Polar Discrimination at Boresight dB 28 29 28
Cross Polar Discrimination over Sector dB 10 8 7
F/B at +/-30deg Total Power dB 25 23 24
First Upper Side Lobe Suppression dB 15 15 13
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Left Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.7 17.3 18.1 17.9 17.9
Gain Over all Tilts dBi 16.2 +/- 0.5 16.8 +/- 0.5 17.1 +/- 1 17.4 +/- 0.5 17.4 +/- 0.5
Azimuth Beamwidth 3dB Deg 70.6 +/- 8.1 64.3 +/- 6.5 65.5 +/- 4.5 66.8 +/- 3.3 64.5 +/- 4.1
Elevation Beamwidth 3dB Deg 6.4 +/- 0.5 6 +/- 0.1 5.6 +/- 0.5 5 +/- 0.1 4.9 +/- 0.5
Cross Polar Discrimination at Boresight dB 25 24 21.8 25 26
Cross Polar Discrimination over Sector dB 11 8 9 10.1 4
F/B at +/-30deg Total Power dB 21 24 25 25 22
First Upper Side Lobe Suppression dB 17 19 19 21 20
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHigh Band Right Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.9 17.3 18.3 18 17.9
Gain Over all Tilts dBi 16.4 +/- 0.5 16.8 +/- 0.5 17.3 +/- 1 17.5 +/- 0.5 17.4 +/- 0.5
Azimuth Beamwidth 3dB Deg 70.4 +/- 9 66.7 +/- 8.9 65.4 +/- 5.5 65.7 +/- 3 62.5 +/- 4
Elevation Beamwidth 3dB Deg 6.2 +/- 0.5 5.8 +/- 0.5 5.5 +/- 0.5 5 +/- 0.1 4.9 +/- 0.5
Cross Polar Discrimination at Boresight dB 25 25 25.9 27.3 25
Cross Polar Discrimination over Sector dB 12 8 9 11 3
F/B at +/-30deg Total Power dB 22 25 26 24 21
First Upper Side Lobe Suppression dB 17 20 19 20 17.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

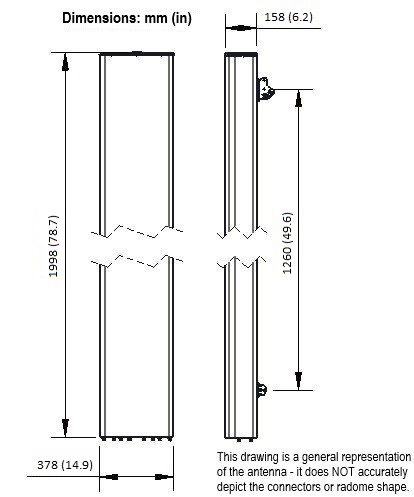

Dimensions - H x W x Dmm (in)1998 x 378 x 158 (78.6 x 14.9 x 6.2)
Weight (Antenna Only)kg (lb)22 (48.5)
Weight (Mounting Hardware only)kg (lb)4 (8.8)
Packing size- HxWxDmm (in)2178 x 473 x 278 (85.7 x 18.6 x 10.9)
Shipping Weightkg (lb)31.7 (69.9)

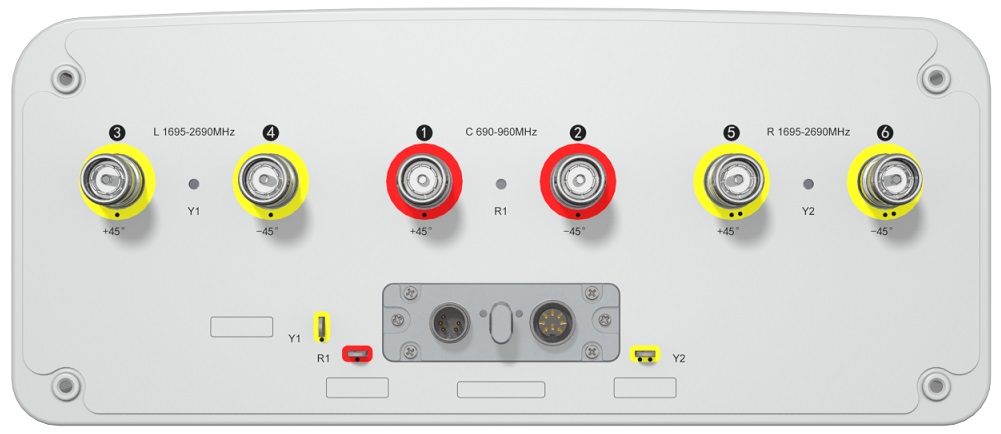

Connector type6x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN493
Wind Load @Rated Wind SideN441
Wind Load @Rated Wind RearN571
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBLL20H_43-C-I20 Internal RET(ACU-I20-H12I) APM50-H1 50-125mm 31.7 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
