APXVBLL26B2_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.6m, 1x 690-960/2x 1695-2690MHz, 65deg, Integrated RET

Rev : H | Rev date : 14 Feb 2023

FEATURES / BENEFITS

  • 2 ports / 1 cross pol system in low band (690-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version: HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 17 17.4 17.7
Gain Over all Tilts dBi 16.3 +/- 0.7 17 +/- 0.4 17.4 +/- 0.3
Azimuth Beamwidth 3dB Deg 66.2 +/- 1.5 64.7 +/- 1 61.4 +/- 2.5
Elevation Beamwidth 3dB Deg 8.5 +/- 0.5 7.7 +/- 0.5 7 +/- 0.4
Cross Polar Discrimination at Boresight dB 28.6 27.4 25.4
Cross Polar Discrimination over Sector dB 8.8 9.4 6.7
F/B at +/-30deg Total Power dB 23.9 24.2 25.3
First Upper Side Lobe Suppression dB 16.2 16.2 16.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.4 18.1 18.2 18.1 18.5
Gain Over all Tilts dBi 16.9 +/- 0.5 17.7 +/- 0.4 17.8 +/- 0.4 17.8 +/- 0.3 18.1 +/- 0.4
Azimuth Beamwidth 3dB Deg 70.7 +/- 7.5 63.3 +/- 5.6 64.1 +/- 4.8 64.7 +/- 2.9 63.9 +/- 1.9
Elevation Beamwidth 3dB Deg 5.3 +/- 0.3 5 +/- 0.3 4.7 +/- 0.4 4 +/- 0.2 3.8 +/- 0.2
Cross Polar Discrimination at Boresight dB 23.9 24 21.3 25.7 28.2
Cross Polar Discrimination over Sector dB 8.6 7.5 8.1 6.8 1.6
F/B at +/-30deg Total Power dB 22 26.8 27 25.1 19.5
First Upper Side Lobe Suppression dB 13.9 13.5 13.6 14.4 18.6
Electrical Downtilt Deg 2 to 10
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.5 18.2 18.3 18.3 18.7
Gain Over all Tilts dBi 17 +/- 0.5 17.8 +/- 0.4 17.9 +/- 0.4 18 +/- 0.3 18.3 +/- 0.4
Azimuth Beamwidth 3dB Deg 69.8 +/- 8.5 63 +/- 5.1 63.5 +/- 3.7 64.5 +/- 3.2 63.8 +/- 2.1
Elevation Beamwidth 3dB Deg 5.3 +/- 0.4 5 +/- 0.4 4.7 +/- 0.5 4 +/- 0.2 3.8 +/- 0.2
Cross Polar Discrimination at Boresight dB 25.9 24.9 24.5 20.4 23.9
Cross Polar Discrimination over Sector dB 10.2 6.7 7.1 7.1 1.5
F/B at +/-30deg Total Power dB 21.2 25.7 27.4 24.1 20
First Upper Side Lobe Suppression dB 14.2 13.9 14.3 16.9 19.3
Electrical Downtilt Deg 2 to 10
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm);dBc;-153; dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

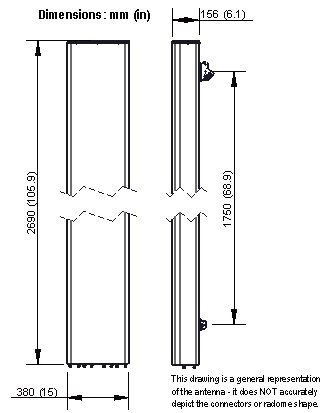

Dimensions - H x W x Dmm (in)2690 x 380 x 156 (105.9 x 15 x 6.1)
Weight (Antenna Only)kg (lb)28.5 (62.8)
Weight (Mounting Hardware only)kg (lb)5.5 (12.1)
Packing size- HxWxDmm (in)2890 x 473 x 278 (113.8 x 18.6 x 10.9)
Shipping Weightkg (lb)36.3 (80)
Connector type6 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Gray

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN870
Wind Load @Rated Wind SideN450
Wind Load @Rated Wind RearN970
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBLL26B2_43-C-I20 Internal RET (ACU-I20-H12I) APM50-H2 50-125 mm 36.3 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
