APXVBLL26B_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.6m, 1x 698-960/2x 1710-2690MHz, 65deg, Integrated RET

Rev : F | Rev date : 20 Feb 2023

FEATURES / BENEFITS



  • 2 ports / 1 cross pol system in low band (698-960MHz)
  • 4 ports / 2 cross pol systems in high band (1710-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 16.8 18 17.7
Gain Over all Tilts dBi 16.3 +/- 0.5 17 +/- 1 17.2 +/- 0.5
Azimuth Beamwidth 3dB Deg 66.6 +/- 1.8 63.8 +/- 2.5 61.9 +/- 1
Elevation Beamwidth 3dB Deg 8.7 +/- 0.5 7.7 +/- 1 7 +/- 0.1
Cross Polar Discrimination at Boresight dB 27 26 22
Cross Polar Discrimination over Sector dB 13 11 12
F/B at +/-30deg Total Power dB 24 25.7 25
First Upper Side Lobe Suppression dB 16 14 14
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 17.4 17.4 18.1 17.3 17
Gain Over all Tilts dBi 16.4 +/- 1 16.9 +/- 0.5 17.6 +/- 0.5 16.8 +/- 0.5 16.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 66.9 +/- 6 67 +/- 5 66.3 +/- 4.6 70.6 +/- 2 65.8 +/- 4.9
Elevation Beamwidth 3dB Deg 6.5 +/- 0.5 6.2 +/- 0.5 5.8 +/- 0.5 5.1 +/- 0.1 4.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 21 24 19.9 14.6 15
Cross Polar Discrimination over Sector dB 9 8 8 7.8 5
F/B at +/-30deg Total Power dB 21 21 22 24.7 23
First Upper Side Lobe Suppression dB 18.9 18 18 18.3 15
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 17.3 17.4 18 17.1 16.8
Gain Over all Tilts dBi 16.3 +/- 1 16.9 +/- 0.5 17.5 +/- 0.5 16.6 +/- 0.5 16.3 +/- 0.5
Azimuth Beamwidth 3dB Deg 66.8 +/- 5.1 66.5 +/- 4 65.4 +/- 5 70.6 +/- 2.5 64.4 +/- 5.4
Elevation Beamwidth 3dB Deg 6.5 +/- 0.5 6.1 +/- 0.5 5.7 +/- 0.5 5 +/- 0.5 4.7 +/- 0.5
Cross Polar Discrimination at Boresight dB 18 19 19.3 14 15
Cross Polar Discrimination over Sector dB 7 7 8 5 7
F/B at +/-30deg Total Power dB 19 21 23 24 22
First Upper Side Lobe Suppression dB 16 16 16.3 15 15
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 25
Interband Isolation dB 25
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

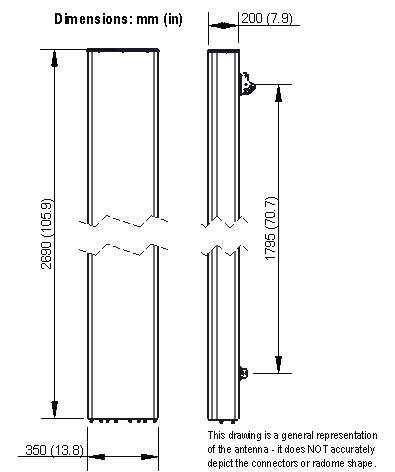

Dimensions - H x W x Dmm (in)2690 x 350 x 200 (105.9 x 13.8 x 7.9)
Weight (Antenna Only)kg (lb)31.5 (69.4)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)2940 x 445 x 295 (115.7 x 17.5 x 11.6)
Shipping Weightkg (lb)45 (99.2)
Connector type6x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h220 (150 )
Wind Load @Rated Wind FrontN1156
Wind Load @Rated Wind SideN566
Wind Load @Rated Wind RearN1543
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBLL26B_43-C-I20 Internal RET (ACU-I20-B3) APM50-B1 50-110mm 45 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
