APXVDGLL26EXD_43-C-I20
RF X-TREME™ Quadband XXXXpol Antenna, 694-862/880-960/1695-2690/1695-2690MHz, 65deg, 15.9/16.0/18.1/18.2dBi, 2.6m, RET, 0-10/0-10/2-12/2-12deg

Rev : D | Rev date : 07 Mar 2018
This antenna is an ideal choice for quadband site upgrades for high traffic areas. It can be used for multiple bands such as Digital dividend, CDMA, GSM, DCS, UMTS, LTE 2.6 and LTE700.

FEATURES / BENEFITS

  • Quadband cross-polarized (8 ports), 1x 694-862 / 1x 880-960 / 2x 1695-2690 MHz
  • Ultra-broadband design for LTE 800, LTE 2600 and LTE700
  • Variable electrical downtilt — provides enhanced precision in controlling intercell interference
  • Tilt remotely adjustable according to AISG/3GPP standards
  • Enhanced tilt range — ideal for applications in dense areas
  • Enable MIMO 4x4 or 4-way RX diversity — Ideal solution for LTE advanced
  • High suppression of upper sidelobes — reduces cell interference
  • Sleek radome design dramatically reduces wind load — minimizes tower loading
  • Quick and easy to install — reduces installation time and costs
  • High reliability — designed to last in a tower top environment
  • Lightning protected 5Kva


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (694-862 MHz) [R1] (Diplexed)
Frequency Band MHz 694-790 790-862
Gain dBi 15.4 15.9
Horizontal Beamwidth @3dB Deg 75.7+/-1.6 72.6+/-3.6
Vertical Beamwidth @3dB Deg 8.3+/-0.6 7.6+/-0.3
Front-to-Back, at +/-30°, Total Power dB > 21.7 > 21.5
First Upper Side Lobe Suppression dB > 17.5 > 18.8
Electrical Downtilt Range Deg 0 to 10
3rd Order PIM 2 x 43dBm dBc < -153
VSWR - < 1.5:1
Return Loss dB > 14
Cross Polar Isolation dB > 26
Maximum Effective Power per Port Watt 300

Electrical Specifications

Electrical Specification HeaderLow Band Array (880-960 MHz) [R2] (Diplexed)
Frequency Band MHz 880-960
Gain dBi 16.0
Horizontal Beamwidth @3dB Deg 69.9+/-1.1
Vertical Beamwidth @3dB Deg 6.9+/-0.3
Front-to-Back, at +/-30°, Total Power dB > 23.1
First Upper Side Lobe Suppression dB > 20.3
Electrical Downtilt Range Deg 0 to 10
3rd Order PIM 2 x 43dBm dBc < -153
VSWR - < 1.5:1
Return Loss dB > 14
Cross Polar Isolation dB > 26
Maximum Effective Power per Port Watt 300

Electrical Specifications

Electrical Specification HeaderHigh Band Left Array (1695-2690MHz) [Y1]
Frequency Band MHz 1695-1880 1850-2010 1900-2170 2300-2400 2500-2690
Gain dBi 17.6 17.9 18.1 17.8 18.0
Horizontal Beamwidth @3dB Deg 64.0+/-9.5 57.8+/-3.2 59.0+/-4.6 60.7+/-6.1 62.0+/-6.5
Vertical Beamwidth @3dB Deg 5.6+/-0.3 5.4+/-0.3 5.1+/-0.5 4.6+/-0.3 4.2+/-0.2
Front-to-Back, at +/-30°, Total Power dB > 20.0 > 18.1 > 18.6 > 21.8 > 18.7
First Upper Side Lobe Suppression dB > 19.0 > 17.7 > 13.5 > 15.9 > 15.4
Electrical Downtilt Range Deg 2 to 12
3rd Order PIM 2 x 43dBm dBc < -153
VSWR - < 1.5:1
Return Loss dB > 14
Cross Polar Isolation dB > 26
Maximum Effective Power per Port Watt 300

Electrical Specifications

Electrical Specification HeaderHigh Band Right Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695-1880 1850-2010 1900-2170 2300-2400 2500-2690
Gain dBi 17.6 17.9 18.2 18.0 17.8
Horizontal Beamwidth @3dB Deg 63.0+/-9.6 57.7+/-4.4 59.3+/-4.6 61.1+/-6.3 61.6+/-4.7
Vertical Beamwidth @3dB Deg 5.6+/-0.3 5.4+/-0.2 5.1+/-0.5 4.6+/-0.3 4.2+/-0.2
Front-to-Back, at +/-30°, Total Power dB > 20.5 > 18.5 > 19.9 > 21.6 > 19.7
First Upper Side Lobe Suppression dB > 19.2 > 16.3 > 14.0 > 15.5 > 15.4
Electrical Downtilt Range Deg 2 to 12
3rd Order PIM 2 x 43dBm dBc < -153
VSWR - < 1.5:1
Return Loss dB > 14
Cross Polar Isolation dB > 26
Maximum Effective Power per Port Watt 300

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

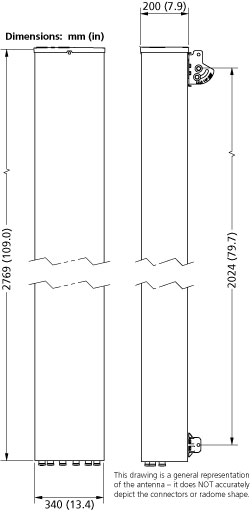

Dimensions - H x W x Dmm (in)2769 x 340 x 200 (109 x 13.4 x 7.9)
Weight (Antenna Only)kg (lb)40 (88.2)
Weight (Mounting Hardware only)kg (lb)3 (6.6)
Packing size- HxWxDmm (in)2878 x 441 x 411 (113.3 x 17.4 x 16.2)
Shipping Weightkg (lb)47 (103.6)
Connector type8 x 4.3-10 female at bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (160 )
Wind Load @Rated Wind FrontN533
Wind Load @Rated Wind SideN747
Wind Load @Rated Wind RearN717
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Weight
APXVDGLL26EXD_43-C-I20 Internal RET Included APM40-2 60-120mm 43 Kg

Notes

NOTE1: All electrical parameters are compliant with BASTA NGMN 9.6 requirements.



For additional mounting information please click ""External Document Links"".



*This datasheet is provisional and subject to changes
