APXVGRRR20B-C-I20
8-Ports, X-Pol, Panel Antenna, 2.0m, 1x880-960/3x1710-2170MHz, 65deg, Integrated RET

Rev : E | Rev date : 21 Feb 2023

8-Port Panel Antenna, 2 Ports in Low Band & 6 Ports in High Bands.

FEATURES / BENEFITS

  • Cross polarized antenna with 8 ports, 1x880-960/3x1710-2170, for complex system configurations and maximum flexibility
  • High suppression of upper sidelobes-- reduces cell interference
  • Quick and easy to install-- reduces installation time and costs
  • High reliability-- designed to last in a tower top environment
  • SRET -Field replaceable / ACU HW Version -2.02 / SW Version -2.72


Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (880-960 MHZ) [R1]
Frequency Band MHz 880-960
Gain Typical dBi 15.9
Gain Over all Tilts dBi 15.3 +/- .6
Azimuth Beamwidth 3dB Deg 68.3 +/- 4.8
Elevation Beamwidth 3dB Deg 9.5 +/- .4
Cross Polar Discrimination at Boresight dB 24.7
Cross Polar Discrimination over Sector dB 7.2
F/B at +/-30deg Total Power dB 23.4
First Upper Side Lobe Suppression dB 20.4
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1710-2170 MHZ) [B1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170
Gain Typical dBi 17.1 17.4 17.7
Gain Over all Tilts dBi 16.2 +/- .9 16.5 +/- .9 16.7 +/- 1
Azimuth Beamwidth 3dB Deg 70.7 +/- 5.2 69.9 +/- 2.9 67.1 +/- 4.1
Elevation Beamwidth 3dB Deg 6.8 +/- .6 6.8 +/- .6 6.1 +/- .6
Cross Polar Discrimination at Boresight dB 17.6 17.6 17.3
Cross Polar Discrimination over Sector dB 14.3 14.3 11.3
F/B at +/-30deg Total Power dB 25 25.2 26.7
First Upper Side Lobe Suppression dB 15.8 15.8 15.1
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1710-2170 MHZ) [B2]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170
Gain Typical dBi 17.1 17.5 18
Gain Over all Tilts dBi 16.3 +/- .8 16.7 +/- .8 17 +/- 1
Azimuth Beamwidth 3dB Deg 63.3 +/- 4.2 58.2 +/- 4.1 57.7 +/- 3
Elevation Beamwidth 3dB Deg 6.9 +/- .5 6.5 +/- .4 6.1 +/- .5
Cross Polar Discrimination at Boresight dB 23.6 25.3 25.2
Cross Polar Discrimination over Sector dB 13.5 8.9 4.1
F/B at +/-30deg Total Power dB 23 22.1 23.6
First Upper Side Lobe Suppression dB 16.3 16.9 16.8
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1710-2170 MHZ) [B3]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170
Gain Typical dBi 17 17.8 17.9
Gain Over all Tilts dBi 16.2 +/- .8 16.8 +/- 1 17 +/- .9
Azimuth Beamwidth 3dB Deg 64.3 +/- 3.7 60.3 +/- 4 58 +/- 2.9
Elevation Beamwidth 3dB Deg 6.6 +/- .4 6.2 +/- .4 5.9 +/- .5
Cross Polar Discrimination at Boresight dB 17.1 18.1 16.7
Cross Polar Discrimination over Sector dB 6.3 6.3 5.4
F/B at +/-30deg Total Power dB 21.6 23 22.3
First Upper Side Lobe Suppression dB 14.6 14.9 15
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

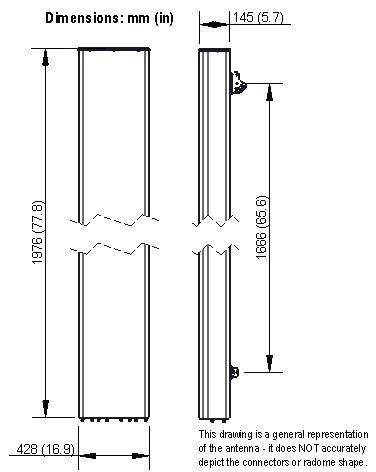

Dimensions - H x W x Dmm (in)1976 x 428 x 145 (77.8 x 16.9 x 5.7)
Weight (Antenna Only)kg (lb)25.9 (57.1)
Packing size- HxWxDmm (in)2250 x 523 x 240 (88.6 x 20.6 x 9.4)
Shipping Weightkg (lb)34.9 (76.9)
Connector type8 x 7/16 DIN female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 65 (-40 to 149 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h220 (150 )
Wind Load @Rated Wind FrontN1038
Wind Load @Rated Wind SideN352
Wind Load @Rated Wind RearN1084
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVGRRR20B-C-I20 Integrated RET(ACU-I20-B4) APM50-B1 50-110mm 34.9 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
