APXVRRMM15B_43-C-I20
8-Ports, X-Pol, Panel Antenna, 1.5m, 2x 1710-2170/2x 2490-2690MHz, 65deg, Integrated RET

Rev : F | Rev date : 21 Feb 2023

FEATURES / BENEFITS



  • 4 ports / 2 cross pol systems in high band (1710-2170MHz)
  • 4 ports / 2 cross pol systems in high band (2490-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2170 MHz) [B1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170
Gain Typical dBi 17.4 17.1 17.3
Gain Over all Tilts dBi 16.9 +/- 0.5 17 +/- 0.1 16.8 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.4 +/- 2.5 68.2 +/- 2.5 68 +/- 2
Elevation Beamwidth 3dB Deg 6.8 +/- 0.5 6 +/- 0.1 5.9 +/- 0.5
Cross Polar Discrimination at Boresight dB 16 20 21
Cross Polar Discrimination over Sector dB 14 14 15
F/B at +/-30deg Total Power dB 27.9 27 27
First Upper Side Lobe Suppression dB 14 15 15
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2170 MHz) [B2]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170
Gain Typical dBi 17 17.1 17.2
Gain Over all Tilts dBi 16.5 +/- 0.5 17 +/- 0.1 16.7 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.8 +/- 3 67 +/- 3 67.3 +/- 2.5
Elevation Beamwidth 3dB Deg 6.6 +/- 0.5 6 +/- 0.1 5.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 17 18 19
Cross Polar Discrimination over Sector dB 12 11 11
F/B at +/-30deg Total Power dB 25 26 26
First Upper Side Lobe Suppression dB 15
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (2490-2690 MHz) [Y1]
Frequency Band MHz 2490 - 2690
Gain Typical dBi 18
Gain Over all Tilts dBi 17.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 58.6 +/- 3.5
Elevation Beamwidth 3dB Deg 4.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 22
Cross Polar Discrimination over Sector dB 11
F/B at +/-30deg Total Power dB 25
First Upper Side Lobe Suppression dB 13
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (2490-2690 MHz) [Y2]
Frequency Band MHz 2490 - 2690
Gain Typical dBi 17.8
Gain Over all Tilts dBi 17.3 +/- 0.5
Azimuth Beamwidth 3dB Deg 58.3 +/- 4
Elevation Beamwidth 3dB Deg 4.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 20
Cross Polar Discrimination over Sector dB 10
F/B at +/-30deg Total Power dB 25
First Upper Side Lobe Suppression dB 14
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

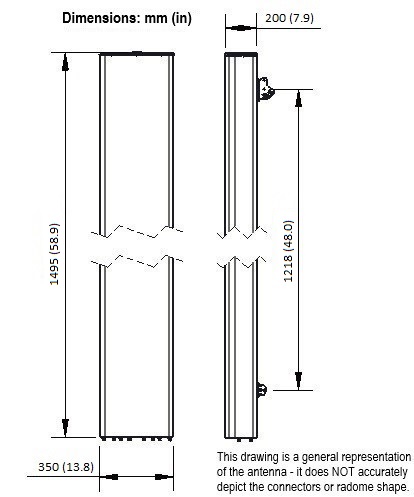

Dimensions - H x W x Dmm (in)1495 x 350 x 200 (58.9 x 13.8 x 7.9)
Weight (Antenna Only)kg (lb)20.3 (44.8)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1750 x 445 x 295 (68.9 x 17.5 x 11.6)
Shipping Weightkg (lb)29 (63.9)
Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN659
Wind Load @Rated Wind SideN342
Wind Load @Rated Wind RearN373
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXVRRMM15B_43-C-I20 Internal RET (ACU-I20-B4) APM50-B1 50-110mm 29.0 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
