FONF-FF06S-XXXM
HYBRIFLEX® Fiber Optic Cable Assembly, MTP12/APC Female to MTP12/APC Female, LSZH, indoor

Rev : D | Rev date : 03 Mar 2022
HYBRIFLEX fiber only cable assemby, 12 single mode fibers, pre-terminated with an MTP12 female connector on both ends of this LSZH, indoor cable. Optimized for Radio over Fiber (RoF) applications, for use within the RFS "Plug and Play" RoF solution.

FEATURES / BENEFITS

  • High precision MTP/APC fiber connector provides low insertion loss, high return loss,excellent stability and durability
  • Available in a range of standard or customized lengths to simplify network design
  • MTP connectors are terminated and fully tested in controlled conditions to ensure optimum performance and reliability
  • RFS' "Plug and Play" solution simplifies network design, minimizes installation/testing time and the necessary on site skills








External Document Links

Notes


Product image

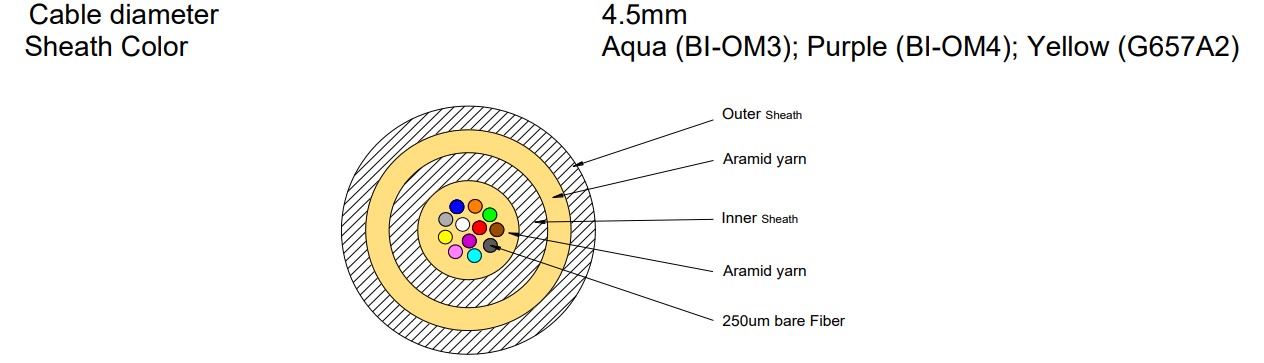

Cable Structure

Technical features

Structure

Cable Type12 single mode fibers (G657A2),LSZH jacket, yellow
Number of Fiber12

Mechanical Specifications

Outer Diameter Nominal mm (in)4.5 (0.177)
Minimum Bending Radius, (Operating)mm (in)45 (1.772)
Minimum Bending Radius, (Installation)mm (in)90 (3.543)
Tensile Strength (Operating)130 N
Tensile Strength (Installation)440 N
Crush Resistance (Operating)300 N / 10 cm
Crush Resistance (Installation)1000 N / 10 cm

Cable Jacket

Jacket MaterialLSZH

F/O Cable Specifications

F/O Cable TypeLoose-tube, Single Mode
Core/Clad µm9 /125
F/O Cable JacketLSZH
F/O Standards (Meets or Exceeds)G657A2
Fiber Termination End 1MTP/APC female, single mode, yellow housing, IEC 61754-7
Fiber Termination End 2MTP/APC female, single mode, yellow housing, IEC 61754-7
Fiber Attenuation dB/km≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm
Connector Insertion LossMTP(SM): Max. 0.35 dB @ 1310&1550nm/ IEC 61300-3-4 Method B
Connector Return LossMTP(SM): Min. 60 dB @ 1310&1550nm

Testing and Environmental

Storage Temperature °C (°F)-25 to 70 (-13 to 158 )
Operation Temperature °C (°F)-20 to 60 (-4 to 140 )
Installation Temperature °C (°F)-10 to 55 (14 to 131 )

Ordering Information

>30 m 1 PC drum
<30 m 1 Pc in a bag

Additional Assemblies

LengthModel Name
10 mFONF-FF06S-010M
20 mFONF-FF06S-020M
30 mFONF-FF06S-030M
40 mFONF-FF06S-040M
50 mFONF-FF06S-050M
60 mFONF-FF06S-060M
70 mFONF-FF06S-070M
80 mFONF-FF06S-080M
90 mFONF-FF06S-090M
100 mFONF-FF06S-100M
110 mFONF-FF06S-110M
120 mFONF-FF06S-120M
130 mFONF-FF06S-130M
140 mFONF-FF06S-140M
150 mFONF-FF06S-150M
160 mFONF-FF06S-160M
170 mFONF-FF06S-170M
180 mFONF-FF06S-180M
190 mFONF-FF06S-190M
200 mFONF-FF06S-200M
