HB158-21U6S24-xxM Series
HYBRIFLEX® Hybrid Feeder Cabling Solution 6x24, 4AWG, 1-5/8”, Single-Mode Fiber, DLC to ODC, with 6AWG DC breakout top

Rev : G | Rev date : 16 Feb 2021

PRODUCT DESCRIPTION

RFS’ HYBRIFLEX Remote Radio Head (RRH) hybrid feeder cabling solution combines optical fiber and DC power for RRHs in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and costs at Cellular sites.

HYBRIFLEX allows mobile operators deploying an RRH architecture to standardize the RRH installation process. HYBRIFLEX combines optical fiber (multi-mode or single-mode) and power in a single corrugated cable. It eliminates the need for junction boxes and can connect multiple RRHs with a single feeder. Standard RFS CELLFLEX® accessories can be used with HYBRIFLEX cable. Both pre-connectorized and on-site options are available.

FEATURES / BENEFITS

  • Aluminum corrugated armor with outstanding bending characteristics – Minimizes installation time and enables mechanical protection and shielding
  • Armored fiber optic breakout – Preserves the integrity of the fiber and provides mechanical/environmental protection
  • Same accessories as 1-5/8" coaxial cable
  • Outer conductor grounding – Utilizes same grounding methods as coaxial cable
  • Lightweight solution and compact design – Decreases tower loading
  • Robust cabling – Eliminates need for expensive cable trays and ducts
  • Installation of tight bundled fiber optic cable pairs directly to the RRH – Reduces CAPEX and wind load by eliminating need for interconnection
  • Optical fiber and power cables housed in single corrugated cable – Saves CAPEX by standardizing RRH cable installation and reducing installation requirements
  • Outdoor, black PE jacket – Ensures long-lasting cable protection
  • Shielded DC wire – Jacketed and braided cable on top breakout provides grounding and EMI protection
  • Maximum robustness – Fully armored cable includes riser trunk and top outdoor breakout

TECHNICAL FEATURES

Structure
Cable Type   HYBRIFLEX®
Size   1-5/8"

Mechanical Specifications
Outer Diameter Nominal mm (in) 50.7 (1.996)
Cable Weight kg/m (lb/ft) 3.42 (2.3)
Minimum Bending Radius, Single Bend mm (in) 254 (10)
Minimum Bending Radius, Multiple Bends mm (in) 508 (20)
Recommended / Maximum Clamp Spacing m (ft) 1 / 1.2 (3.25 / 4)

Armor Specifications
Armor Type   Corrugated Aluminum
Maximum DC-Resistance of Armor Ω/km (Ω/kft) 0.58 (0.178)
Diameter Corrugated Armor mm (in) 46.4 (1.83)

Cable Jacket
UV-Protection Individual and External Jacket   Yes

DC Power Cable Specifications
Number of DC Pairs   6
Maximum DC-Resistance Power Cable Ω/km (Ω/kft) 0.83 (0.25)
Cross Section of Power Cable mm² (AWG) 21.1 (4)
DC Wire Jacket Material   PVC/Nylon
DC Cable Single Bending Radius mm (in) 157 (6.2)
DC Cable Diameter mm (in) 7.8 (0.308)
DC Standards (Meets or Exceeds)   For use in UL 1569, PVC Nylon, RoHS/REACH Compliant
Break-out Length (Top) mm (in) 5000 (197)
Break-out Length (Bottom) mm (in) 2000 (78)
DC Cable Sealing Method   Semi-rigid flame-retardant polyolefin, with hot melt adhesive

F/O Cable Specifications
F/O Cable Type   G657-A1 Single Mode, Bend Tolerant
Number of F/O Pairs   24
Core/Clad µm 9/125
Secondary Protection Nominal µm (in) 900 (0.035)
Single Bending Radius mm (in) 157 (6.2)
Cable Diameter   5.512 (0.217)
F/O Standards (Meets or Exceeds)   UL Listed Type OFNR (UL1666), RoHS Compliant
Optical Loss dB/Km 0.5 @ 1310 nm
0.5 @ 1550 nm
Fiber Termination End 1   ODC plug
Fiber Termination End 2   DLC connector
FO Break-out Length (Top) mm (in) 5000 (197)
FO Break-out Length (Bottom) mm (in) 1000 (39)
Cable Sealing Method   Semi-rigid flame-retardant polyolefin, with hot melt adhesive

Testing and Environmental
Storage Temperature °C (°F) -40 to 70 (-40 to 158)
Operation Temperature °C (°F) -40 to 65 (-40 to 149)
Installation Temperature °C (°F) -20 to 65 (-4 to 149)

Assembly Loss
Optical Insertion Loss, Riser or Jumper Tested Individually Riser or Jumper 0.4 dB typical @1310/1550nm

System Loss
Optical Insertion Loss, Riser and Jumper Connected in Series Total, End to End 0.7dB typical / 1.25dB max @1310/1550nm

EXTERNAL DOCUMENT LINKS

Installation Guidelines: Download

On-line Factory Test Results: View





NOTES

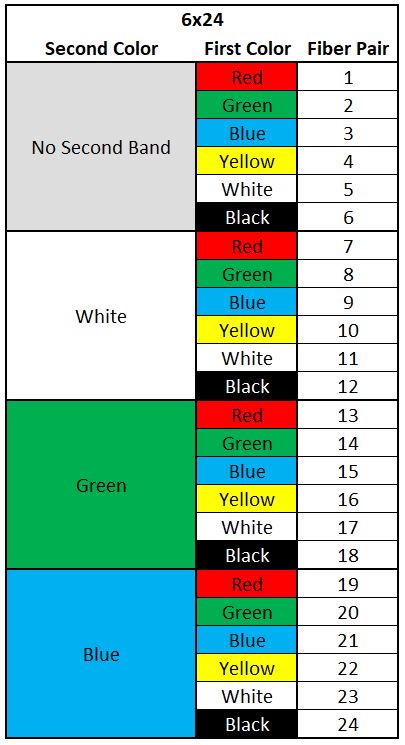

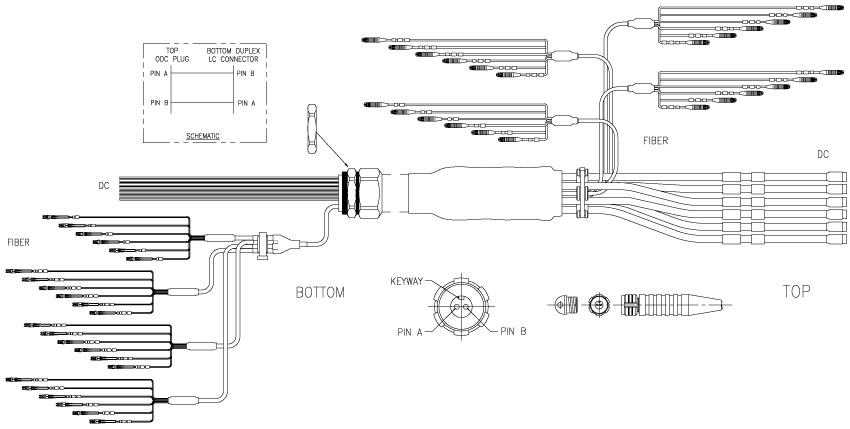

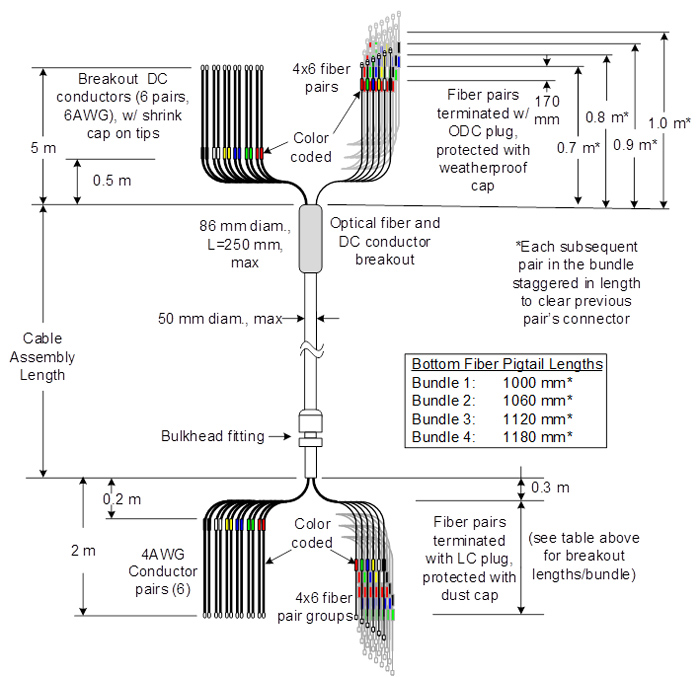

Nominal length equals length of trunk not including top and bottom breakouts; breakout lengths add additionally to the total assembly length tip to tip

Top Breakout - DC Power Cable Specifications:

  • No of DC pairs 6; Specifications per 1 pair:
  • Maximum DC-Resistance Power Cable Ω/km (Ω/ft) 1.4 (0.42),
  • Cross Section of Power Cable mm2 (AWG) 13.3 (6),
  • Overall Cable Diameter mm (in) 17.8 (0.708),
  • DC Cable Jacket Material PVC,
  • EMI Shield Tinned Copper Braid

Additional Assembly Lengths
Model Number Length (m)
HB158-21U6S24-10M 10
HB158-21U6S24-20M 20
HB158-21U6S24-30M 30
HB158-21U6S24-40M 40
HB158-21U6S24-50M 50
HB158-21U6S24-60M 60
HB158-21U6S24-70M 70
HB158-21U6S24-80M 80
HB158-21U6S24-90M 90
HB158-21U6S24-100M 100
HB158-21U6S24-110M 110
HB158-21U6S24-120M 120
HB158-21U6S24-130M 130

PRE-PACKED HYBRIFLEX KITS FOR QUICK AND EASY FIELD INSTALLS

All Kits include an above cable assembly plus predefined quantities of grounding kit(s) and hoisting grip(s)

Kit Assembly Lengths
Length (m) Model Number Grounding Kit GK Qty Hoisting Grip HG Qty
10 HB158-21U6S24-10M-KIT GKFORM60-158 3 HOIST1-158L 1
20 HB158-21U6S24-20M-KIT 3 1
30 HB158-21U6S24-30M-KIT 3 1
40 HB158-21U6S24-40M-KIT 3 1
50 HB158-21U6S24-50M-KIT 3 1
60 HB158-21U6S24-60M-KIT 3 2
70 HB158-21U6S24-70M-KIT 4 4
80 HB158-21U6S24-80M-KIT 4 4
90 HB158-21U6S24-90M-KIT 4 4
100 HB158-21U6S24-100M-KIT 5 4
110 HB158-21U6S24-110M-KIT 5 4
120 HB158-21U6S24-120M-KIT 5 4
130 HB158-21U6S24-130M-KIT 6 6
