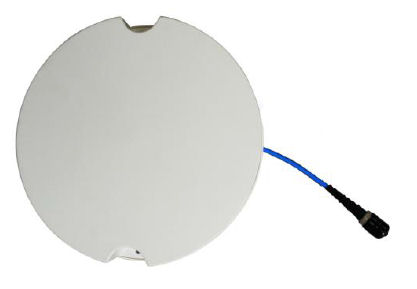

Indoor Omnidirectional Antenna 698-2700 MHz

Rev : A | Rev date : 11 Dec 2017
This omnidirectional antenna is designed for broadband in-building distribution of modern wireless communication systems as LTE, GSM, CDMA,  3G and WiFi / WLAN services. The antenna ensures highest performance for in-building passive DAS applications avoiding passive intermodulation products due to the PIM optimized design.
The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.


  • Wideband omni antenna, supporting all wireless services in the frequency bands 698-960/1710-2700MHz
  • Typically used in indoor distribution of LTE servives
  • PIM optimized antenna design (-150dBc @2x20W)
  • Aesthetical visual appearance, compact and light weight
  • Low loss, stable performance
  • Pigtail with N female connector
  • Ceiling mounting


Technical features

General Specifications

Product TypeOmnidirectional Antenna
Techn. ApplicationIndoor

Mechanical Specifications

Number of Input Ports1
ConnectorsN female
Connector Cable mm (in)300 (11.81)
Height (Less Connectors) mm (in)40 (1.57)
Diameter (Less Connectors) mm (in)218 (8.58)
Weight kg (lb)0.41 (0.9)

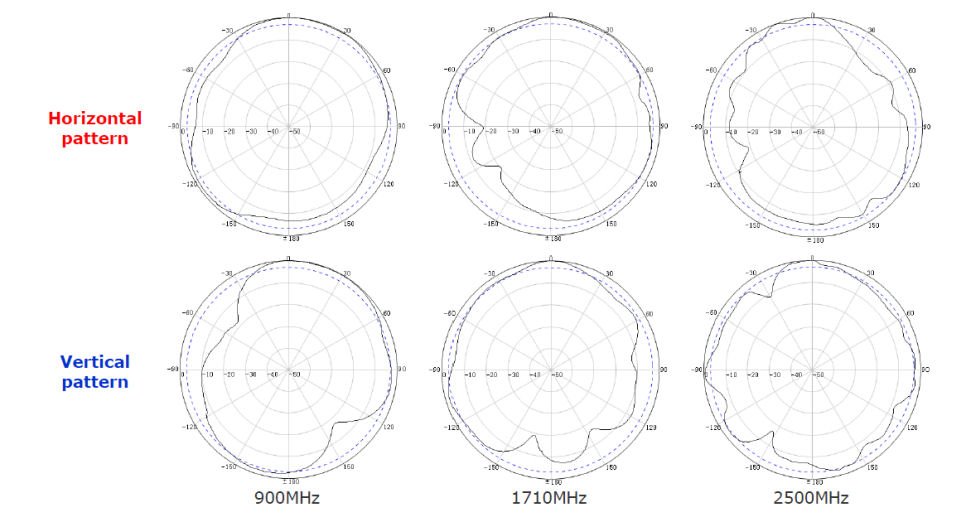

Electrical Specifications

Frequenz MHz 698-960 1710-2700
Gain, typ. dBi 2.5-4.5 4.0-6.5
VSWR 2.0 2.0
Beamwidth, Vertical, typ. ° 60-90 30-65
Impedance, OhmΩ50
Intermodulation (IM3)-150 dBc
Total Input Power max. W50


Radome MaterialABS
Radome ColorWhite ( RAL 9003 )

Temperature Specifications

Operation Temperature °C (°F)-55 to 60 (-67 to 140 )

Testing and Environmental

Environmental ClassIndoor

External Document Links


Ceiling mounting via hole ( standard )
