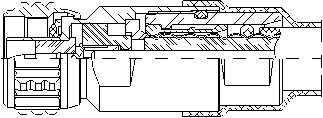

N Male Connector for 3/8" Coaxial Cable, RAPID FIT™ O-ring sealing

Rev : B | Rev date : 12 Nov 2009
Radio Frequency Systems line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to CELLFLEX® coaxial cables. RFS connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in a variety of mating interfaces.; The N connector is one of the most common RF connector types. N type connectors from RFS will be delivered with a non-slotted outer conductor contact sleeve and a special gasket. Due to a special design of the coupling nut (without spring ring) N connectors can be tightened with increased torque. This increases the contact pressure.


  • Single-piece design for Fast and Easy Installation - Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance every time. Saves time and provides cost savings.
  • Robust Mechanical Design - Low and consistent intermodulation performance guarantees outstanding system sensitivity.
  • Excellent Electrical Performance - Consistent and repeatable low VSWR improves overall system performance and margin and reduces mismatch losses
  • Totally Waterproof according to IP 68 - Assures safe, long term operation in the harshest of environments.

RAPIT FIT™ Connectors

External Document Links


Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size3/8
Cable TypeFoam Dielectric
Connector InterfaceN
Connector TypeRAPID FIT™
Sealing MethodO-ring

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc<-156
Maximum Frequency GHz 3.7
VSWR, Return LossVSWR (dB)0 &lt; f ≤ 1.0 GHz: 1.02 (40)
1.0 &lt; f ≤ 2.7 GHz: 1.03 (36.6)
2.7 &lt; f ≤ 3.7 GHz: 1.08 (28.3)

Mechanical Specifications

Plating Outer/InnerSilver/Silver
Length mm (in)53.1 (2.1)
Outer Diameter mm (in)22 (0.9)
Inner Contact AttachmentBasket
Outer Contact AttachmentSpring Finger


Wrench size front mm (in)17 (11/16)
Wrench size rear mm (in)15 (9/16)
Trimming ToolTRIM-38-L03

Testing and Environmental

Waterproof LevelIP68
