P1-B3L15-N0
8-Ports, X-Pol, Panel Antenna, 1.5m, 1x 690-960/3x 1695-2690MHz, 65deg, Integrated RET

Rev : G | Rev date : 01 Mar 2023

FEATURES / BENEFITS


  • 2 ports / 1 cross pol system in low band (690-960 MHz)
  • 6 ports / 3 cross pol systems in high band (1695-2690 MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS200608H1.00
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (690-960 MHZ) [R1]
Frequency Band MHz 690-806 790-894 880-960
Gain Typical dBi 14.7 15.1 15.4
Gain Over all Tilts dBi 14.2 +/- 0.5 14.6 +/- 0.5 14.9 +/- 0.5
Azimuth Beamwidth 3dB Deg 68.8 +/- 1.5 66.8 +/- 1.6 63.8 +/- 2.3
Elevation Beamwidth 3dB Deg 15 +/- 1 13.5 +/- 0.5 12.5 +/- 1
Cross Polar Discrimination at Boresight dB 23 25.7 26.9
Cross Polar Discrimination over Sector dB 8.7 8 6.9
F/B at +/-30deg Total Power dB 23 23 22
First Upper Side Lobe Suppression dB 16 18.6 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.6 17.1 17.3 17.5 18.1
Gain Over all Tilts dBi 16.1 +/- 0.5 16.6 +/- 0.5 16.8 +/- 0.5 17.1 +/- 0.4 17.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 67.6 +/- 4.9 69 +/- 1.8 67.5 +/- 2.9 61.5 +/- 1.5 58.9 +/- 4.2
Elevation Beamwidth 3dB Deg 6.7 +/- 0.5 6.1 +/- 0.4 5.8 +/- 0.5 5 +/- 0.1 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 29 27.8 26.6 24 22.9
Cross Polar Discrimination over Sector dB 12 11 10 12 6
F/B at +/-30deg Total Power dB 25 26.8 27 26.1 23
First Upper Side Lobe Suppression dB 19 18.7 17.3 20 19
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.4 17.1 17.9 17.9 18
Gain Over all Tilts dBi 15.9 +/- 0.5 16.6 +/- 0.5 16.9 +/- 1 17 +/- 0.9 17 +/- 1
Azimuth Beamwidth 3dB Deg 61.5 +/- 2.4 60.5 +/- 2 59.9 +/- 3.2 55.8 +/- 3.4 59 +/- 4.3
Elevation Beamwidth 3dB Deg 7.5 +/- 0.5 6.7 +/- 0.5 6.3 +/- 0.5 5.4 +/- 0.5 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 21 21 20.8 19.2 19
Cross Polar Discrimination over Sector dB 4.3 6 5 0.9 1
F/B at +/-30deg Total Power dB 23 24 24 25 23
First Upper Side Lobe Suppression dB 15 16 16 19.5 17.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1695-2690 MHZ) [Y3]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.9 17.4 17.4 17.2 18.1
Gain Over all Tilts dBi 16.4 +/- 0.5 16.9 +/- 0.5 16.9 +/- 0.5 17.1 +/- 0.1 17.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 68.4 +/- 4.3 68.1 +/- 2.1 66.7 +/- 2.6 62 +/- 2 59.6 +/- 4.5
Elevation Beamwidth 3dB Deg 6.7 +/- 0.5 6.1 +/- 0.1 5.9 +/- 0.5 5 +/- 0.1 5 +/- 0.1
Cross Polar Discrimination at Boresight dB 27.7 30.6 28 25 26.2
Cross Polar Discrimination over Sector dB 9 9 8.7 13 4.2
F/B at +/-30deg Total Power dB 24 26 26.7 26 22
First Upper Side Lobe Suppression dB 17 17.4 16 20 20
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

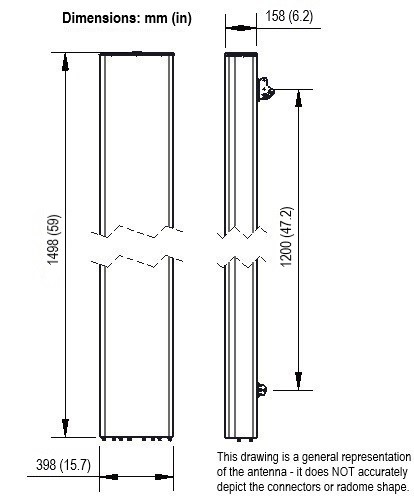

Dimensions - H x W x Dmm (in)1498 x 398 x 158 (59 x 15.7 x 6.2)
Weight (Antenna Only)kg (lb)21 (46.3)
Weight (Mounting Hardware only)kg (lb)4 (8.8)
Packing size- HxWxDmm (in)1678 x 493 x 278 (66.1 x 19.4 x 10.9)
Shipping Weightkg (lb)31.5 (69.4)
Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Gray

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN550
Wind Load @Rated Wind SideN270
Wind Load @Rated Wind RearN615
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
P1-B3L15-N0 Internal RET(ACU-I20-H14) APM50-H1 50-125 mm 31.5Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
