P1-BRRMM20-N0
10-Ports, X-Pol, Panel Antenna, 2.0m, 1x 698-960/2x 1695-2200/2x 2490-2690MHz, 65deg, Integrated RET, Site Sharing Optional

Rev : F | Rev date : 21 Feb 2023

FEATURES / BENEFITS



  • 2 ports / 1 cross pol system in low band (698-960MHz)
  • 2 cross pol systems in high band (1695-2690MHz), diplexed, resulting in 4 ports 1695-2200MHz and 4 ports 2490-2690MHz
  • Supporting 4x4 MIMO in high band
  • Integrated & field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 15.8 16.6 17
Gain Over all Tilts dBi 15.3 +/- 0.5 16.1 +/- 0.5 16.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 69 +/- 1.5 67.8 +/- 1 67.5 +/- 1.5
Elevation Beamwidth 3dB Deg 11.8 +/- 1 10.5 +/- 0.5 9.1 +/- 0.5
Cross Polar Discrimination at Boresight dB 30 28.8 27
Cross Polar Discrimination over Sector dB 12 11 12
F/B at +/-30deg Total Power dB 23 24.4 24
First Upper Side Lobe Suppression dB 19 16 15
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2200 MHz) [B1]
Frequency Band MHz 1695-1880 1850-1990 1920-2200
Gain Typical dBi 17.6 17.6 17.7
Gain Over all Tilts dBi 17.1 +/- 0.5 17.1 +/- 0.5 17.2 +/- 0.5
Azimuth Beamwidth 3dB Deg 61.4 +/- 4.5 64.5 +/- 3.5 64.7 +/- 6.7
Elevation Beamwidth 3dB Deg 6.3 +/- 0.5 6 +/- 0 5.5 +/- 0.5
Cross Polar Discrimination at Boresight dB 18 17 17
Cross Polar Discrimination over Sector dB 9 7 6
F/B at +/-30deg Total Power dB 21 23 24
First Upper Side Lobe Suppression dB 14 14 14
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2200 MHz) [B2]
Frequency Band MHz 1695-1880 1850-1990 1920-2200
Gain Typical dBi 17.6 17.6 17.7
Gain Over all Tilts dBi 17.1 +/- 0.5 17.1 +/- 0.5 17.2 +/- 0.5
Azimuth Beamwidth 3dB Deg 61.3 +/- 4.5 65.1 +/- 3.8 65.6 +/- 6.4
Elevation Beamwidth 3dB Deg 6.4 +/- 0.5 6 +/- 0.1 5.6 +/- 0.5
Cross Polar Discrimination at Boresight dB 18 18 17
Cross Polar Discrimination over Sector dB 7 7 6
F/B at +/-30deg Total Power dB 22 22 23
First Upper Side Lobe Suppression dB 16 16 15
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (2490-2690 MHz) [Y1]
Frequency Band MHz 2490-2690
Gain Typical dBi 18.4
Gain Over all Tilts dBi 17.4 +/- 1
Azimuth Beamwidth 3dB Deg 59.9 +/- 4
Elevation Beamwidth 3dB Deg 4.7 +/- 0.5
Cross Polar Discrimination at Boresight dB 18
Cross Polar Discrimination over Sector dB 1
F/B at +/-30deg Total Power dB 24
First Upper Side Lobe Suppression dB 18.9
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (2490-2690 MHz) [Y1/Y2]
Frequency Band MHz 2490-2690
Gain Typical dBi 18.4
Gain Over all Tilts dBi 17.4 +/- 1
Azimuth Beamwidth 3dB Deg 59.5 +/- 4
Elevation Beamwidth 3dB Deg 4.8 +/- 0.5
Cross Polar Discrimination at Boresight dB 19
Cross Polar Discrimination over Sector dB 2
F/B at +/-30deg Total Power dB 25
First Upper Side Lobe Suppression dB 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

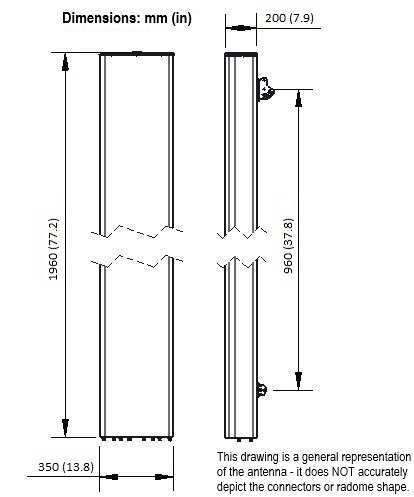

Dimensions - H x W x Dmm (in)1960 x 350 x 200 (77.2 x 13.8 x 7.9)
Weight (Antenna Only)kg (lb)27.8 (61.3)
Weight (Mounting Hardware only)kg (lb)4.5 (9)
Packing size- HxWxDmm (in)2240 x 445 x 295 (88.2 x 17.5 x 11.6)
Shipping Weightkg (lb)40.8 (89.9)
Connector type10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN880
Wind Load @Rated Wind SideN456
Wind Load @Rated Wind RearN498
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
P1-BRRMM20-N0 Internal RET(ACU-I20-B5) APM50-B1 50-110mm 40.8 kg
P1-BRRMM20-S0 (Material Code: 50016704) Internal RET(ACU-X20-B5) Dynamic Site Sharing mode APM50-B1 50-110mm 40.8 kg
P1-BRRMM20-S0 (Material Code: 50016705) Internal RET(ACU-X20-B5) Static Site Sharing mode APM50-B1 50-110mm 40.8 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click"External Document Links".
