P2-BBRRMM15-N0
12-Ports, X-Pol, Panel Antenna, 1.5m, 2x 698-960/2x 1695-2200/2x 2490-2690MHz, 65deg, Integrated RET, Site Sharing Optional

Rev : G | Rev date : 13 Mar 2023

FEATURES / BENEFITS



  • 4 ports / 2 cross pol systems in low band (698-960MHz)
  • 2 cross pol systems in high band (1695-2690MHz), diplexed, resulting in 4 ports 1695-2200MHz and 4 ports 2490-2690MHz
  • Supporting 4x4 MIMO in low band and in high band
  • Integrated & field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 14.4 15.1 15.3
Gain Over all Tilts dBi 13.5 +/- 0.9 14.6 +/- 0.5 14.9 +/- 0.4
Azimuth Beamwidth 3dB Deg 60.4 +/- 4.1 60.6 +/- 2.1 60.7 +/- 3.7
Elevation Beamwidth 3dB Deg 16.2 +/- 1.3 14.9 +/- 0.7 13.9 +/- 0.7
Cross Polar Discrimination at Boresight dB 15.4 17.3 17.7
Cross Polar Discrimination over Sector dB 6.1 9.6 6.5
F/B at +/-30deg Total Power dB 17.1 22.2 22.2
First Upper Side Lobe Suppression dB 18.7 15.7 13.6
Electrical Downtilt Deg 2 to 15
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R2]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 14.6 15.1 15.4
Gain Over all Tilts dBi 13.6 +/- 1 14.6 +/- 0.5 15.1 +/- 0.3
Azimuth Beamwidth 3dB Deg 61.3 +/- 5 61.4 +/- 2.6 60.7 +/- 2.8
Elevation Beamwidth 3dB Deg 16.1 +/- 1.3 14.7 +/- 0.7 13.8 +/- 0.7
Cross Polar Discrimination at Boresight dB 14.8 16.7 19.2
Cross Polar Discrimination over Sector dB 6.8 10 8.7
F/B at +/-30deg Total Power dB 17.4 21.7 21
First Upper Side Lobe Suppression dB 17.4 16.3 15.2
Electrical Downtilt Deg 2 to 15
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2200 MHz) [B1]
Frequency Band MHz 1695-1880 1850-1990 1920-2200
Gain Typical dBi 17.6 17.9 18.3
Gain Over all Tilts dBi 16.7 +/- 0.9 16.7 +/- 1.2 17 +/- 1.3
Azimuth Beamwidth 3dB Deg 57.2 +/- 3.7 60.8 +/- 8.4 61.9 +/- 8
Elevation Beamwidth 3dB Deg 6.2 +/- 0.4 5.9 +/- 0.3 5.5 +/- 0.5
Cross Polar Discrimination at Boresight dB 16.1 16.5 14.3
Cross Polar Discrimination over Sector dB 8.5 5.8 5.7
F/B at +/-30deg Total Power dB 21.6 22.8 23
First Upper Side Lobe Suppression dB 18.5 16.7 15.4
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1695-2200 MHz) [B2]
Frequency Band MHz 1695-1880 1850-1990 1920-2200
Gain Typical dBi 17.4 17.9 18.1
Gain Over all Tilts dBi 16.6 +/- 0.8 16.7 +/- 1.2 16.9 +/- 1.2
Azimuth Beamwidth 3dB Deg 58.2 +/- 5 59.2 +/- 5.4 61.4 +/- 9.2
Elevation Beamwidth 3dB Deg 6.3 +/- 0.3 5.8 +/- 0.4 5.5 +/- 0.5
Cross Polar Discrimination at Boresight dB 15.8 17 14.6
Cross Polar Discrimination over Sector dB 9 5.4 5.2
F/B at +/-30deg Total Power dB 23.1 23.1 22.4
First Upper Side Lobe Suppression dB 19 16.5 15.8
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (2490-2690 MHz) [Y1]
Frequency Band MHz 2490-2690
Gain Typical dBi 18.4
Gain Over all Tilts dBi 17.6 +/- 0.8
Azimuth Beamwidth 3dB Deg 50.5 +/- 5.8
Elevation Beamwidth 3dB Deg 4.6 +/- 0.3
Cross Polar Discrimination at Boresight dB 23.2
Cross Polar Discrimination over Sector dB 0.7
F/B at +/-30deg Total Power dB 24.9
First Upper Side Lobe Suppression dB 15
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (2490-2690 MHz) [Y2]
Frequency Band MHz 2490-2690
Gain Typical dBi 18.3
Gain Over all Tilts dBi 17.7 +/- 0.6
Azimuth Beamwidth 3dB Deg 51.2 +/- 5.7
Elevation Beamwidth 3dB Deg 4.5 +/- 0.3
Cross Polar Discrimination at Boresight dB 20.2
Cross Polar Discrimination over Sector dB 0.8
F/B at +/-30deg Total Power dB 25.1
First Upper Side Lobe Suppression dB 15.6
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

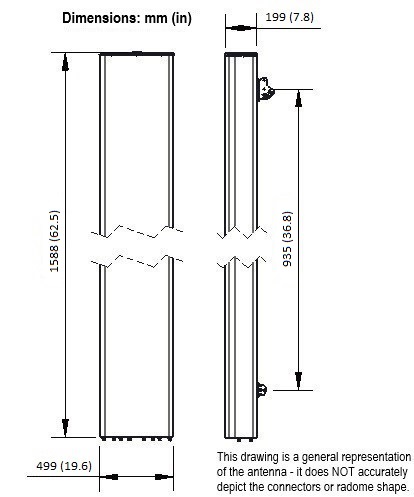

Dimensions - H x W x Dmm (in)1588 x 499 x 199 (62.5 x 19.6 x 7.8)
Weight (Antenna Only)kg (lb)29 (63.9)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1840 x 595 x 295 (72.4 x 23.4 x 11.6)
Shipping Weightkg (lb)37.5 (82.7)
Connector type12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN526
Wind Load @Rated Wind SideN459
Wind Load @Rated Wind RearN610
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
P2-BBRRMM15-N0 Internal RET(ACU-I20-B6) APM50-B1 50-110mm 37.5 kg
P2-BBRRMM15-S0 (Material Code: 50016702) Internal RET(ACU-X20-B6) Dynamic Site Sharing mode APM50-B1 50-110mm 37.5 kg
P2-BBRRMM15-S0 (Material Code: 50016703) Internal RET(ACU-X20-B6) Static Site Sharing mode APM50-B1 50-110mm 37.5 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
