Snap-In Hangers, 7/8", stainless steel (kit of 10)

Rev : B | Rev date : 20 Sep 2017

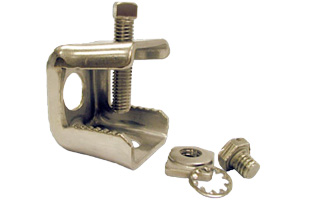

Stackable hangers from RFS are designed for quick and secure installation of 1/2-, 7/8-, 1-1/4- and 1-5/8-inch foam dielectric cable. These one-piece stainless steel hangers save installation time and cost. The hangers, requiring no tools, are easily installed by hand. Robust construction securely locks the cable in place while allowing for additional cable runs to be stacked up to three deep. The hangers ensure positive attachment to 19 mm (3/4"") pre-drilled mounting surfaces and easily combine with RFS angle adapters, ANGLE-UI (with 3/8"" insert) or ANGLE-U, to mount to angle members on the tower.


External Document Links


Technical features

General Specifications

Product LineCoaxial Cable Accessories
Hybrid Cable Accessories
Product TypeHanger
Hanger TypeSnap-in
Transmission Line TypeLCF78
Cable TypeCoaxial Foam Dielectric
Superflexible Coaxial Foam Dielectric
Ultraflexible Coaxial Foam Dielectric
Air Dielectric

Mechanical Specifications

Cable Size7/8
MaterialStainless Steel
Drill Hole Size mm (in)19 (0.75)

Packaging Information

Package Quantity10
