716F-SCF12-C03
7-16 Female Connector for 1/2" Coaxial SuperFlexibleCable, OMNI FIT™ standard

Rev : C | Rev date : 06 May 2024
OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminum) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions.

FEATURES / BENEFITS

  • Cost effective two-piece design for safe and easy installation
  • Robust mechanical design for low and consistent intermodulation performance i.e. keeps the mobile network performance up, reduces the number of dropped calls and avoids revenue losses
  • Standard electrical performance for consistent and repeatable VSWR i.e. ensure network system performance
  • Waterproof to IP 68 i.e. no downtime risk, secures revenue
  • RoHS (EU) compliant i.e. can be used on a global basis


716F-SCF12-C03

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1/2
Cable TypeFoam Dielectric Superflexible
Model SeriesSCF12-50 Series
Connector Interface7-16
Connector Type

OMNI FIT™ Standard

Sealing Method

O-ring

GenderFemale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc
-157 ; typical -160
Maximum Frequency GHz6
VSWR, Return LossVSWR (dB)0 < f ≤ 1.0 GHz: 1.03 (36.6)
1.0 < f ≤ 2.7 GHz: 1.04 (34.1)
2.7 < f ≤ 3.7 GHz: 1.08 (28.3)
3.7 < f ≤ 5.0 GHz: 1.15 (23.1)
5.0 < f ≤ 6.0 GHz: 1.25 (19.1)

Mechanical Specifications

Plating Outer/InnerTrimetal/Silver
Length mm (in)46.6 (1.83)
Outer Diameter mm (in)29 (1.14)
Inner Contact AttachmentBasket
Outer Contact AttachmentRigidity impaction

Accessories

Wrench size front mm (in)20 (0.79)
Wrench size rear mm (in)18 (0.71)
Trimming ToolTRIM-SET-S12-C02

Testing and Environmental

Waterproof LevelIP68

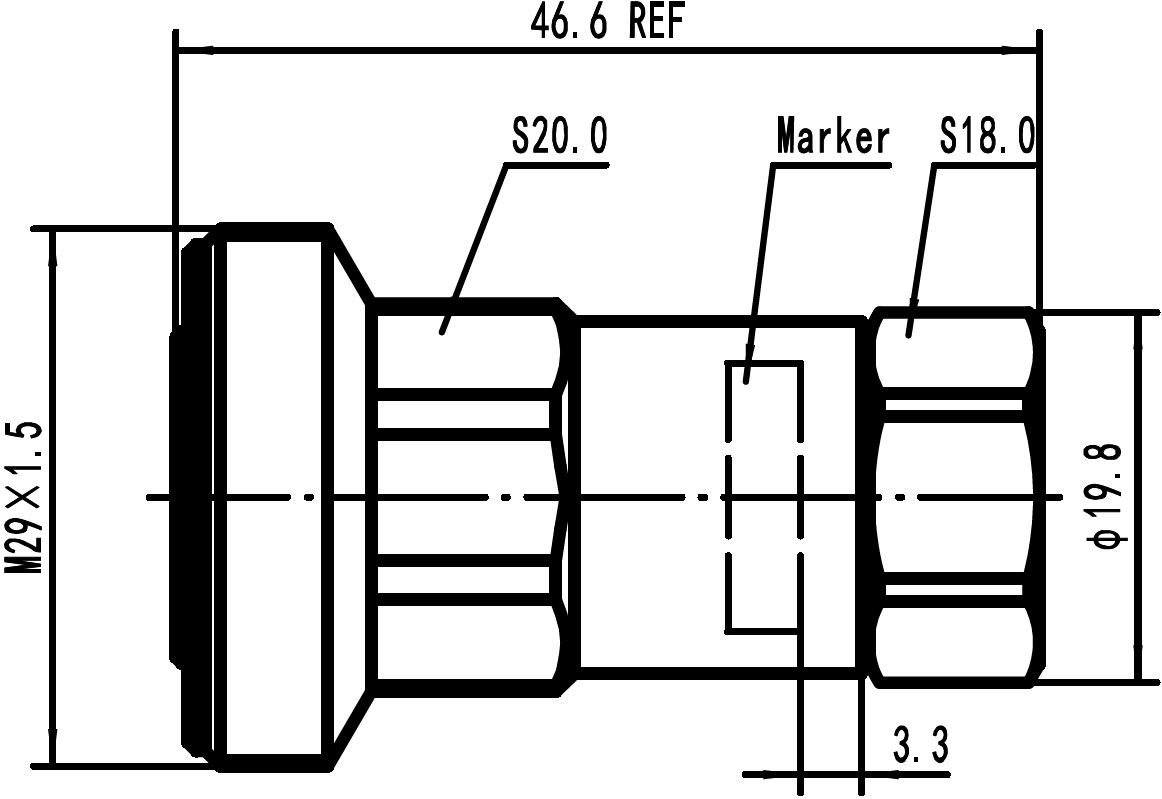

716F-SCF12-C03 Outline Drawing
