2HB12-50JPLR

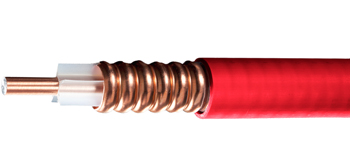

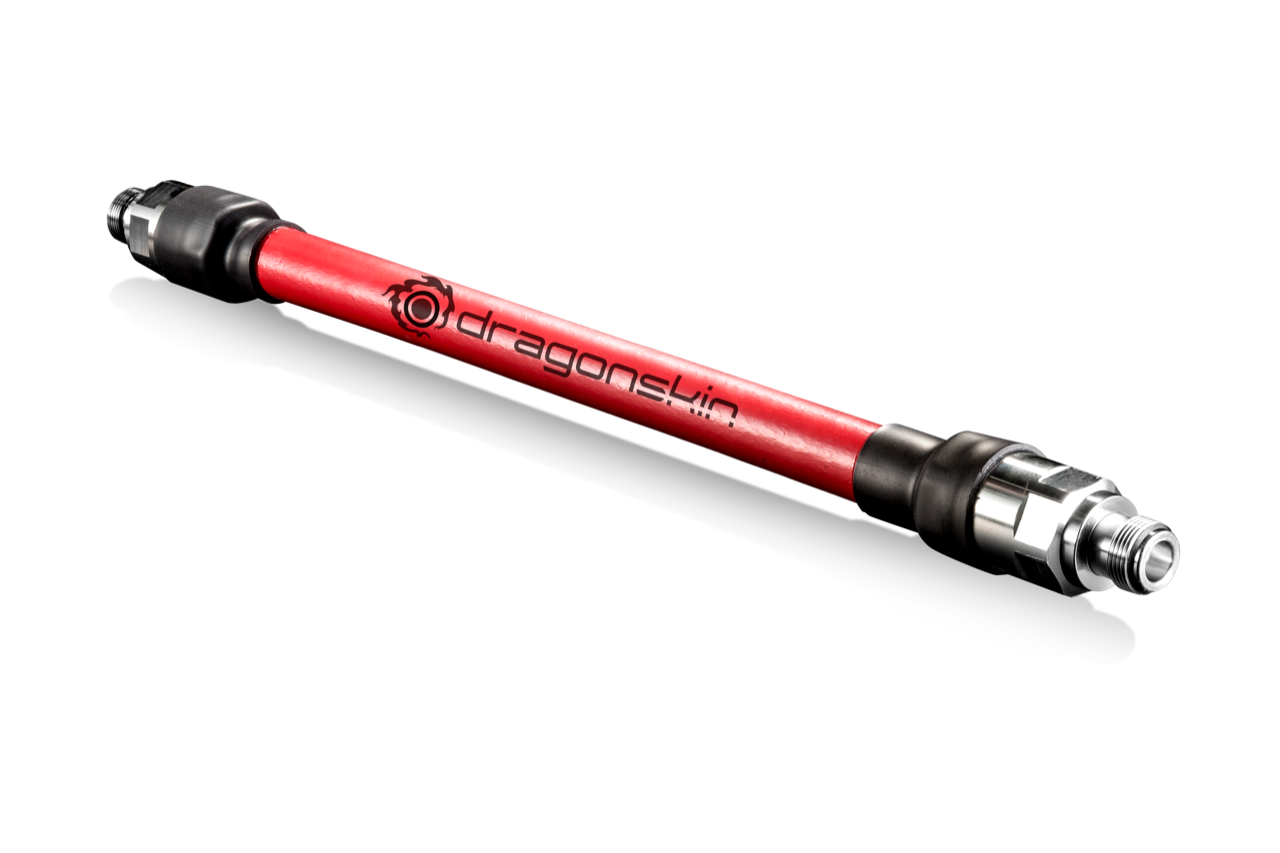

DragonSkin 1/2" Fire-Resistant UL 2196 Certified Standalone Coaxial Cable, Meets NFPA 72 & NFPA 1221 Survivability, Maintains In-Building Communications During Fires, Made in the USA

This standalone coaxible cable is certified to meet the UL 2196 Standard for Fire Test for Circuit Integrity of Fire-Resistive Power, Instrumentation, Control and Data Cables. Visit the DragonSkin Cable Website: www.dragonskincable.com

FEATURES / BENEFITS

  • First UL Listed standalone communications cable meeting NFPA 72 and 1221 survivability standard
    Verifies the cable survives 2 hours at temperatures up to 1,850 degrees F and the water spray test without conduit or additional wrapping
  • Enables cellular and public safety radio communications to and from all floors of a burning building
    Ensures emergency responders and building occupants have reliable access to communcations during fires
  • No conduit or cable wrapping required
    Reduces cable size and weight; simplifies installation
  • CATVP plenum-certified
    TMeets certification for use in the environmental air handling space in buildings
  • Coaxial cable features solid inner and outer conductors
    Virtually eliminates intermodulation
  • Maintains minimum bending radius at all times
    Accelerates installations, especially in smaller spaces and older buildings
  • Uses standard RFS connectors and installation techniques
    Eliminates the need for specialized parts or expertise


Technical features

Structure

Cable TypeAir-Dielectric, Corrugated
Size1/2
Jacket OptionPlenum-Rated, Color Red

Testing and Environmental

Flame Retardant Jacket SpecificationsMeets/Exceeds Steiner Tunnel Test Method NFPA-262. NEC820-53 (a), CATVP, UL2196 (2hours)
Regulatory ComplianceNEC Article 820 CATVP Cable to UL1655, Circuit integrity UL Listed to UL2196, CATVP, NFPA-262, NFPA130, NFPA 72, NFPA 1221 2019 (section 5.5.1.1), Canadian CSA C.22.2/FT6, UL R40176, E239351, UL System FHIT 1250
