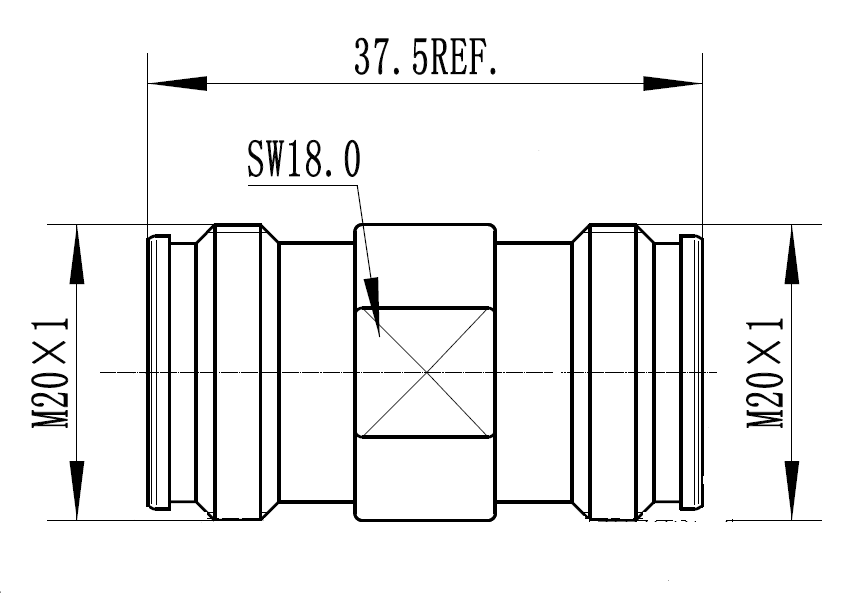

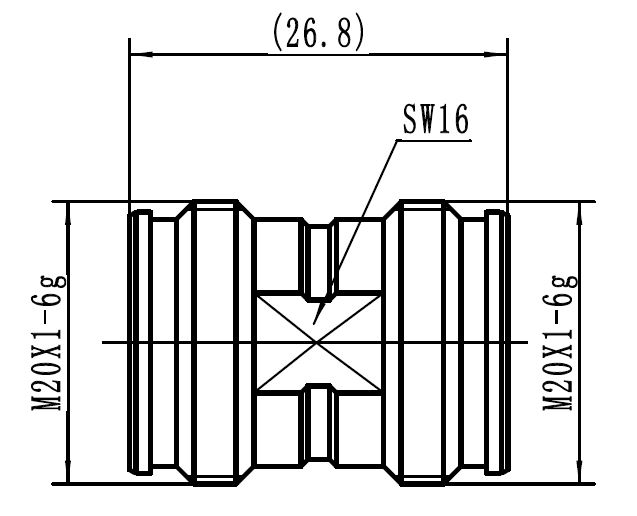

43F-43F
Coaxial Adapter 4.3-10 Female - 4.3-10 Female

Coaxial Adapter, 4.3-10 Female / 4.3-10 Female

FEATURES / BENEFITS


Technical features

Structure

Product LineCoaxial Cable Components
Product TypeCoaxial Adapter
Coaxial Cable TypeFoam Dielectric, Ultraflexible Foam Dielectric , Radiating Cable

Mechanical Specifications

Connector A4.3-10 Female
Center Contact Connector ACopper Alloy, silver plated
Outer Contact Connector ACopper Alloy, CuSnZn plated
Connector B4.3-10 Female
Center Contact Connector BCopper Alloy, silver plated
Outer Contact Connector BCopper Alloy, CuSnZn plated
DielectricPTFE
Sealing classIP68, connected

Electrical Specifications

Frequency Range - MHzDC - 6000
VSWR, Return LossVSWR (dB)DC TO 2GHz VSWR 1.04 (34.15)
2 TO 3GHz VSWR 1.06 (30.71)
3 TO 6GHz VSWR 1.10 (26.44)
Insertion Loss, dB (Max)dB
0.05
3rd Order IM Product @ 2x20 Watts dBc< -163

Temperature Specifications

Operation Temperature °C (°F)-45 to 85 (-49 to 185)

Packaging Information

Package Quantity1
