43M-SCF38-E01
4.3-10 Male Connector for 3/8" Coaxial Cable, Straight

Radio Frequency Systems line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to CELLFLEX® coaxial cables. RFS connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in a variety of mating interfaces. The 4.3-10 connector is an innovative, space-saving RF connection meeting all requirements even under the most severe environmental conditions and not relying on coupling nut torque.

FEATURES / BENEFITS

  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Two-piece design i.e. visual inspection of interlocking leads to improved installation security
  • OMNI FIT™ concept i.e. streamlined order management and reduced stock level
  • Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
  • Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size3/8
Cable TypeFoam Dielectric Superflexible
Model SeriesSCF38-50 Series
Connector Interface4.3-10
Connector Type

OMNI FIT™ PREMIUM Straight

Sealing Method
Polymer claw + 360° Compression
GenderMale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc

-163 ; typical -167

Maximum Frequency GHz6
VSWR, Return LossVSWR (dB)DC < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.2 GHz: 1.03 (37)
2.2 < f ≤ 2.7 GHz: 1.03 (37)
2.7 < f ≤ 3.8 GHz: 1.08 (28)
3.8 < f ≤ 5.0 GHz: 1.15 (23)
5.0 < f ≤ 6.0 GHz: 1.22 (20)

Mechanical Specifications

Plating Outer/InnerTri metal alloy/Silver
Length mm (in)53 (2.087)
Outer Diameter mm (in)22 (0.866)
Weight kg (lb)0.11 (0.243)
Outer Contact Attachment360° clamping

Accessories

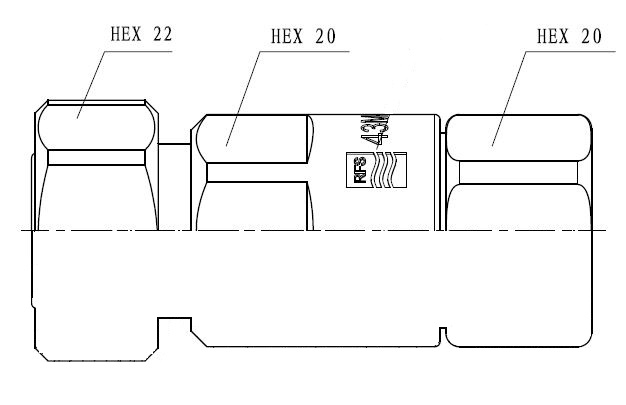

Wrench size front mm (in)20 (22)
Wrench size rear mm (in)20
Trimming ToolTRIM-SET-S38-D01

Testing and Environmental

Waterproof LevelIP68
