716F-LCF114-E01
7-16 DIN Female Connector for 1-1/4" Coaxial Cable, OMNI FIT™ Premium, Straight, O-Ring and compression sealing

Rev : C | Rev date : 08 Oct 2021
OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 4.3-10 connector is an innovative, space-saving RF connection meeting all requirements even under the most severe environmental conditions and not relying on coupling nut torque. Sealing against outer conductor and jacket by means of the o-ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

FEATURES / BENEFITS

  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Two-piece design i.e. visual inspection of interlocking leads to improved installation security
  • OMNI FIT™ concept i.e. streamlined order management and reduced stock level
  • Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
  • Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


External Document Links

Notes

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1-1/4
Cable TypeFoam Dielectric
Model SeriesUCF114-50 Series, LCFS114-50 Series, RCF114-50 Series
Connector Interface7-16 DIN
Connector Type

OMNI FIT™ PREMIUM Straight

Sealing Method
O-Ring + 360° Clamping
GenderFemale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc

-163 ; typical -167

Maximum Frequency GHz3.6
VSWR, Return LossVSWR (dB)0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.2 GHz: 1.04 (34)
2.2 < f ≤ 2.7 GHz: 1.06 (31)
2.7 < f ≤ 3.7 GHz: 1.08 (28)

Mechanical Specifications

Plating Outer/InnerNiTin/Silver
Length mm (in)78.3 (3.071)
Outer Diameter mm (in)50.95 (1.969)
Inner Contact AttachmentSpring Finger
Outer Contact Attachment360° clamping

Accessories

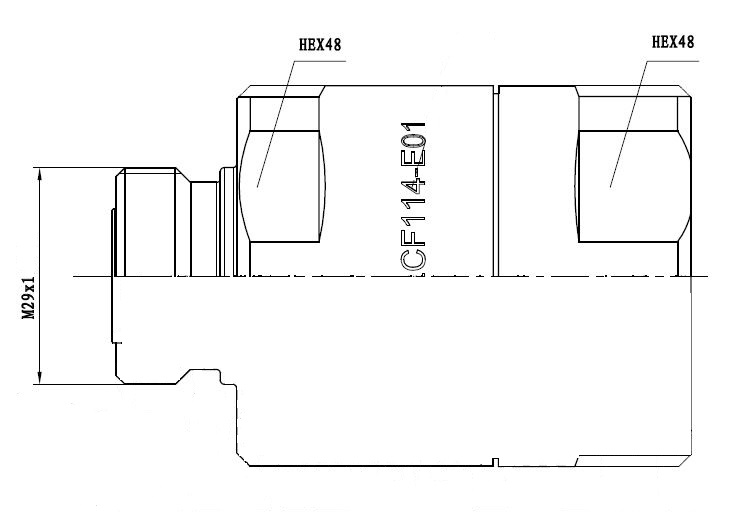

Wrench size front mm (in)48
Wrench size rear mm (in)48
Poly Hook Spanner mm (in)PHS 60-90-5 Ø 60-90 (2.3-3.5) Pin 5 (0.2)
Trimming ToolTRIM-SET-L114-D01
TRIM-LCF114-D01-A

Testing and Environmental

Waterproof LevelIP68
