78EIA-LCF12-060
7/8'' EIA Connector for 1/2'' Coaxial Cable, RAPID FIT™ Sealing compound
Rev : F | Rev date : 27 May 2024
Radio Frequency Systems’ line of high performance coaxial cable connectors are designedspecifically to provide the highest quality connector-cable interface while simplifying and speeding upthe attachment of connectors to CELLFLEX® coaxial cables. RFS connectors are fully tested formechanical and electrical compliance specifications. They are available in all popular cable sizes in avariety of mating interfaces. To join two cables with EIA connectors, two identical socket connectorsare installed on either end of the cables to be joined, and a coupling element is used to make theconnection of the center conductor. The coupling element must be ordered separately. Connectors areavailable in sizes matching the nominal cable size. EIA connectors provide optimal power handlingfor the complete transmission line system.
FEATURES / BENEFITS
- Single-piece design for Fast and Easy Installation
Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance every time. Saves time and provides cost savings.
- Robust Mechanical Design
Low and consistent intermodulation performance guarantees outstanding system sensitivity.
- Excellent Electrical Performance
Consistent and repeatable low VSWR improves overall system performance and margin and reduces mismatch losses
- Totally Waterproof according to IP 68
Assures safe, long term operation in the harshest of environments.
- RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
RAPID FIT™ Connectors
General Specifications |
|---|
| Transmission Line Type | | Coaxial Cable | | Cable Size | | 1/2'' | | Cable Type | | Foam Dielectric | | Connector Interface | | 7/8'' EIA | | Connector Type | | RAPID FIT™ | | Sealing Method | | Sealing compound ¹ ) | | Gender | | None |
|
Electrical Specifications |
|---|
| 3rd Order IM Product @ 2x20 Watts | dBc | <-156 | | Maximum Frequency | GHz | 3.7 | | VSWR, Return Loss | VSWR (dB) | 0 < f ≤ 1.0 GHz: 1.02 (40.1)
1.0 < f ≤ 2.7 GHz: 1.03 (36.6)
2.7 < f ≤ 3.7 GHz: 1.06 (30.7) |
|
Mechanical Specifications |
|---|
| Plating Outer/Inner | | Silver/Silver | | Length | mm (in) | 85 (3.4) | | Outer Diameter | mm (in) | 57.2 (2.3) | | Inner Contact Attachment | | Self Tapping | | Outer Contact Attachment | | Spring Finger |
|
Accessories |
|---|
| Wrench size front | mm (in) | 21 (7/8'') | | Wrench size rear | mm (in) | 19 (3/4'') | | Trimming Tool | | TRIM-SET-L12-D01 but with special handling |
|
Testing and Environmental |
|---|
| Waterproof Level | | IP68 | | Sealing Volume, cm3 (ounces) | cm³ (ounces) | 5 (0.18) |
|

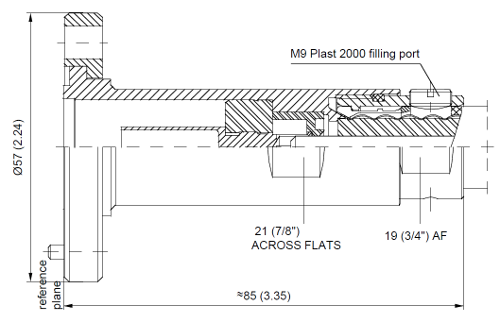

Dimensions in mm
Notes
¹) The sealing compound must be ordered separately.
