7F7FB-HYB90-02
Hybrid Quarter Wave Surge Arrestor 7-16 DIN female - female bulkhead, 698 to 2700 MHz

This 7-16 DIN style hybrid quarter wave surge arrestor with gas capsule for high-power
and low IM application is foreseen for bulkhead mounting or in-line arragement with grounding wire connection (not included) via M8 thread.
Surge arrestors are designed to protect wireless base stations, switching centers and
transmission line from the damaging effects of extreme high voltage surges caused by
lightning strikes. Lightning strikes, even on grounded systems, can implant crushing
voltages on RF transmission lines, creating voltage spikes on the center conductor of
coaxial cable and putting the network out of commission. These RFS lightning protection
devices are designed and tested to the most demanding specifications. They are rated to
protect against both direct and indirect multiple strikes in the harshest environments imaginable.
Their rugged construction utilizes solid metal housings, spring bronze contacts and
superior plating, which results in outstanding system protection and operating continuity.

FEATURES / BENEFITS

  • Allows 2.176MHz signal to pass for AISG systems
  • Broadband operation - DC and RF (698-2700 MHz)
  • DC continuity on center conductor for reliable operation (DC pass)
  • Multiple strike protection provides current handling capability of 20 kA
  • Replaceable gas capsules for easy maintenance
  • Outstanding VSWR and IM performance
  • Water resistant to IP67 standards (mated)
  • Reverse installation possible without performance impact


7F7FB-HYB90-02

Technical features

Structure

Product LineCoaxial Cable Components
Product TypeSurge Arrestor
Surge Arrestor TypeHybrid Quarter Wave
Design

90° Stub

Coaxial Cable TypeFoam Dielectric, Ultraflexible Foam Dielectric, Radiating Cable
Connector Interface7-16 DIN

Mechanical Specifications

ConfigurationBulkhead
Connector A7-16 DIN Female
Center Contact Connector APhosphor bronze, silver plated
Outer Contact Connector ABrass, white bronze plating
Connector B7-16 DIN Female
Center Contact Connector BPhosphor bronze, silver plated
Outer Contact Connector BBrass, white bronze plating
BodyBrass, white bronze plating
DielectricPTFE
Gasket

Silicone rubber

Mounting / GroundingBulkhead; Thread for grounding M8

Electrical Specifications

Frequency Range - MHz698 - 2700
VSWR, Return LossVSWR (dB)698 - 725 MHz: 1.25 (19.1)
725 - 800 MHz: 1.20 (20.8)
800 - 2675 MHz: 1.18 (21.7)
2675 - 2700 MHz: 1.25 (19.1)
Insertion Loss, dB (Max)dB

0.10

3rd Order IM Product @ 2x20 Watts dBc< -160
Power handling

2.7 kW@698, 1.3 kW@2700 (at 20°C, sea level, VSWR 1.0)

Surge current handling capability

20 kA, 8/20 µs

Residual pulse

<350µJ (test puls 4kV 1.2/50µs)

Temperature Specifications

Operation Temperature °C (°F)

-45 to 85 (-49 to 185)

Packaging Information

Package Quantity1
Weight kg (lb)0.37 (0.81)

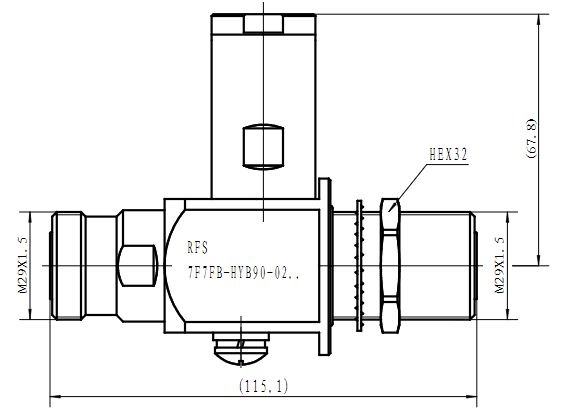

images/Accessories/7F7FB-HYB90-02_2.pngAll dimensions are in mm; tolerances according to ISO 2768 m-H

External Document Links

Notes

Spare Part: Gas Capsule 90V - on request
