ANGLE-UI
Universal angle adapter, Snap-in or 3/8" (kit of 10)

Universal Angle Member Adapter Stainless, 3/4in holes with insert 3/8" thread
Kit of 10

FEATURES / BENEFITS

The Universal Angle Adapter provides a versatile means for securing cable hangers and other accessories to angle members. Removing a press fit insert quickly converts this unique angle adapter to accept snap-in hangers. This design also accommodates a standard 3/8"" threaded rod or bolt when mounting multi hanger blocks or bolt-on hangers. The jaw opening allows mounting up to 22mm (7/8"") thick angle members. The Universal Angle Adapter is manufactured from corrosion resistant stainless steel, ensuring long term integrity in extreme weather applications. Ten per package.


Technical features

Structure

Product LineCoaxial Cable Accessories
Product TypeInstallation Hardware
Installation Hardware TypeUniversal Angle Adapter Kit
Coaxial Cable TypeFoam Dielectric

Mechanical Specifications

Angle member adapter clamping range mm (in)1 - 20 (0.039 - 0.78 )
Angle member adpter threads2x 19mm (3/4") holes with 3/8" tapped inserts
MaterialStainless Steel
Mounting Screw3/8"-16 x 3/8

Temperature Specifications

Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity10
Weight per piece kg (lb)2 (4.35)
Box Dimensions (Bulk Shipping) L x W x H mm (in)203 x 178 x 127 (8 x 7 x 5)

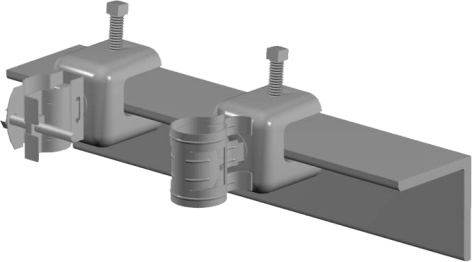

Example of use ANGLE-UI
