APXBL06B_43-CT5
Dual band X-pol Antenna, 698-960/1710-2690MHz, 65deg, 12.2/15.3dBi, 0.6m, 5deg, Fixed

Rev : D | Rev date : 14 Feb 2023

FEATURES / BENEFITS

  • 2 ports / 1 cross pol system in low band (698-960MHz)
  • 2 ports / 1 cross pol system in high band (1710-2690MHz)
  • Fixed tilt




Technical features

Electrical Specifications

Electrical Specification HeaderLOW BAND ARRAY (698-960 MHZ) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 12.1 12.1 12.1
Gain Over all Tilts dBi 11.1 +/- 1 12 +/- 0.1 12 +/- 0.1
Azimuth Beamwidth 3dB Deg 68.5 +/- 1.5 66.3 +/- 1.5 65.7 +/- 1.2
Elevation Beamwidth 3dB Deg 39.6 +/- 2.5 35.4 +/- 1.5 35.4 +/- 0.7
Cross Polar Discrimination at Boresight dB 22.6 23.4 25.8
Cross Polar Discrimination over Sector dB 11 10.9 9.7
F/B at +/-30deg Total Power dB 22.2 23 23
First Upper Side Lobe Suppression dB 11 12 10.9
Electrical Downtilt Deg 5
Cross Polar Isolation dB 24
Interband Isolation dB 24
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHIGH BAND ARRAY (1710-2690 MHZ) [Y1]
Frequency Band Mhz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 14.1 13.9 13.8 14.1 15
Gain Over all Tilts dBi 13.1 +/- 1 13.4 +/- 0.5 13.3 +/- 0.5 13.6 +/- 0.5 14.5 +/- 0.5
Azimuth Beamwidth 3dB Deg 66.8 +/- 6.5 66.4 +/- 4.2 66.6 +/- 4 70.2 +/- 2.3 66.2 +/- 6.8
Elevation Beamwidth 3 dB Deg 19.2 +/- 1 17.8 +/- 0.6 16.9 +/- 1 14.6 +/- 0.8 13.5 +/- 1.6
Cross Polar Discrimination at Boresight dB 20.8 21.9 21.7 17.6 17.1
Cross Polar Discrimination over Sector dB 8 9.6 10 11.5 2
F/B at +/-30deg Total Power dB 20.9 23.3 21.4 18.5 18
First Upper Side Lobe Surpression dB 14.6 16.1 14 12.3 10.9
Electrical Downtilt Deg 5
Cross Polar Isolation dB 24
Interband Isolation dB 24
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

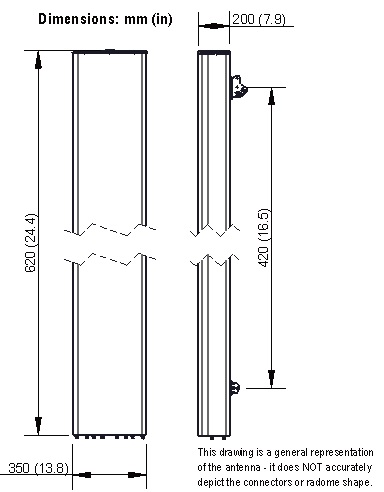

Dimensions - H x W x Dmm (in)620 x 350 x 200 (24.4 x 13.8 x 7.9)
Weight (Antenna Only)kg (lb)8 (17.6)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)895 x 445 x 295 (35.2 x 17.5 x 11.6)
Shipping Weightkg (lb)15.7 (34.6)
Connector type4 x 4.3-10 female/bottom
Radome Material / ColorFiberglass / Light Gray

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN253
Wind Load @Rated Wind SideN85
Wind Load @Rated Wind RearN155
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXBL06B_43-CT5 Fixed tilt APM50-B1 50-110 mm 15.7 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
