Optimizer® Dual Polarized Antenna, 1695-2200, 65deg, 18.4dBi, 1.3m, VET, 0-10deg, RET

This X-Polarized variable tilt antenna provides exceptional suppression of all upper sidelobes at all downtilt angles. It also features a wide downtilt range. This antenna is optimized for performance across the entire frequency band (1710-2200 MHz).


  • Variable electrical downtilt — provides enhanced precision in controlling intercell interference. The tilt is infield adjustable 0-10 deg.
  • High Suppression of all Upper Sidelobes (Typically <-18dB)
  • Gain tracking — difference between (1695-1755 MHz) and  (2110-2200 MHz) <1dB
  • Azimuth beamwidth difference between (1695-1755 MHz) and  (2110-2200 MHz) <5 deg
  • Low profile for low visual impact
  • Dual polarization; broadband design
  • Motor pre-installed

Technical features

Electrical Specifications

Frequency Range MHz1695-2200
Gain dBi (dBd)18.4 (16.3)
Horizontal Beamwidth deg65
Vertical Beamwidth deg5.9 to 7.7
Electrical Downtilt Range deg0-10
1st Upper Sidelobe Suppression dB> 18 all
Upper Sidelobe Suppression dB> 18 all
Front-To-Back Ratio dB> 26 (typically 28)
PolarizationDual pol +/-45°
VSWR< 1.4:1
Isolation between Ports dB> 30
3rd Order IMP @ 2 x 43 dBmdBc>150 (155 Typical)
Impedance Ohms50
Maximum Power Input W300
Beamwidth Approximate deg65
Frequency/Operating Band3G/UMTS (Single, Broad, Dual and Triple-Band)
AWS Band (1695-1755, 2110-2200 MHz)
Antenna TypeDual Polarized
Electrical Down Tilt OptionVariable

Mechanical Specifications

Lightning ProtectionDirect Ground
Connector Type/Location(2) 7-16 Long Neck Female/Bottom
Dimensions - HxWxD mm (in)1349 x 169 x 80 (53.0 x 6.65 x 3.15)
Weight w/o Mtg Hardware kg (lb)9 (19.6)
Survival/Rated Wind Speed km/h (mph]200 (125) / 160 (100)
Wind Load @ Rated Wind, FrontN (lbf)406 (91)
Wind Load @ Rated Wind, Max.N (lbf)406 (91)
Wind Load @ Rated Wind, SideN (lbf)236 (53)
Wind Load @ Rated Wind, RearN (lbf)196 (44)
Mount TypeDowntilt
Height (Approximate) ft.4.5

Testing and Environmental

Operation temperature °C (°F)-40 to 60 (-40 to 140 )


Radome Material/ColorFiberglass/Light Grey RAL7035
Mounting Hardware MaterialAPM40-2
Reflector MaterialAluminum

Ordering Information

Shipping Weight kg (lb)15 (32.9)
Packing Dimensions, HxWxD mm (in)1450 x 230 x 189 (57.1 x 9 x 7.4)
Mounting HardwareAPM40-2
Mounting Pipe Diameter mm (in)60 - 120 (2.36 - 4.72 )
Mounting Hardware Weight kg (lb)3.4 (7.5)

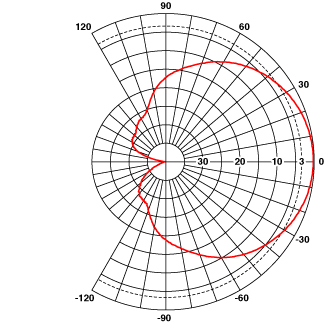

Horizontal Pattern

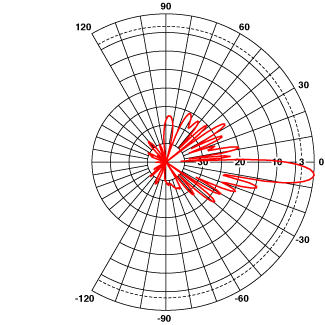

Vertical Pattern

Horizontal Pattern


For additional mounting information please click "External Document Link" below.
