APXV18-209015-C-A20
Optimizer® Dual Polarized Antenna, 1710-2170, 88deg, 17.9/17.7dBi, 1.8m, VET, 0-10deg RET

Rev : E | Rev date : 23 Feb 2021

This X-Polarized variable tilt antenna provides exceptional suppression of all upper sidelobes at all downtilt angles. It also features a wide downtilt range. The antenna comes pre-connected with one antenna control unit (ACU).

FEATURES / BENEFITS

  • Variable electrical downtilt - provides enhanced precision in controlling intercell interference. The tilt is infield adjustable 0-10 deg.
  • High Suppression of all Upper Sidelobes (Typically <-18dB)
  • Low profile for low visual impact
  • Dual polarization
  • Broadband design
  • Includes AISG 2.0 Compatible ACU-A20-N or ACU-A20-S antenna control unit


Technical features

Electrical Specifications

Frequency Range MHz1710-19001900-2170
Gain dBi (dBd)17.9 (15.8)17.7 (15.7)
Horizontal Beamwidth deg88
Vertical Beamwidth deg5.14.5
Electrical Downtilt Range deg0-10
1st Upper Sidelobe Suppression dB>18 all (Typically > 20)
Upper Sidelobe Suppression dB>18 all (Typically > 20)
Front-To-Back Ratio dB> 28
PolarizationDual pol +/-45°
VSWR< 1.5:1
Isolation between Ports dB> 30
3rd Order IMP @ 2 x 43 dBmdBc≥153
7th Order IMP @ 2x46 dBm dBcN/A, >170
Impedance Ohms50
Maximum Power Input W300
Beamwidth Approximate deg90
Frequency/Operating Band3G/UMTS (Single, Broad, Dual and Triple-Band)
AWS Band (1710-1755, 2110-2155 MHz)
Antenna TypeDual Polarized
Electrical Down Tilt OptionVariable

Mechanical Specifications

Lightning ProtectionDirect Ground
Connector Type/Location(2) 7-16 Long Neck Female/Bottom
Dimensions - HxWxD mm (in)1850 x 169 x 80 (72.0 x 6.65 x 3.15)
Weight w/o Mtg Hardware kg (lb)11.5 (25.3)
Weight w/ Mtg Hardware kg (lb)14.3 (31.5)
Survival/Rated Wind Speed km/h (mph]200 (125) / 160 (100)
Applied Wind Load StandardDIN 1055-4
Wind Load @ Rated Wind, FrontN (lbf)557 (125)
Wind Load @ Rated Wind, Max.N (lbf)557 (125)
Wind Load @ Rated Wind, SideN (lbf)325 (73)
Wind Load @ Rated Wind, RearN (lbf)269 (60)
Mount TypeDowntilt
Height (Approximate) ft.6

Testing and Environmental

Operation temperature °C (°F)-40 to 60 (-40 to 140 )

Material

Radome Material/ColorFiberglass/Light Grey RAL7035
Mounting Hardware MaterialAPM40-2
Radiating Element MaterialBrass
Reflector MaterialAluminum

Ordering Information

Shipping Weight kg (lb)17.5 (38.5)
Packing Dimensions, HxWxD mm (in)2020 x 260 x 200 (79.5 x 10.2 x 7.8)
Mounting HardwareAPM40-2
Mounting Pipe Diameter mm (in)60 - 120 (2.36 - 4.72 )
Mounting Hardware Weight kg (lb)3.4 (7.5)

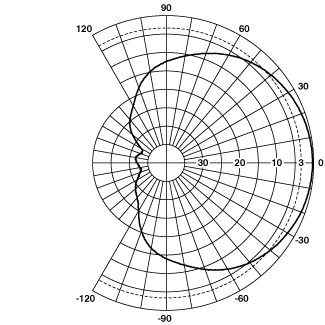

Horizontal Pattern

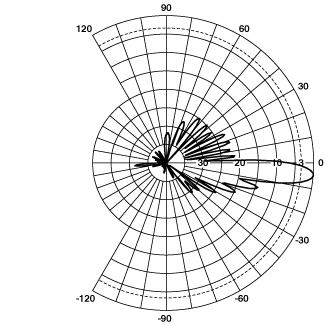

Vertical Pattern


Horizontal Pattern

Notes

For additional mounting information please click "External Document Link" below.
