APXV3B26B_43-C-I20
Dual Slant Polarized Single Band 2 Port Antenna, 698-960MHz, 33deg, 20.9dBi, 2.6m, 2-12deg, Integrated RET

Rev : D | Rev date : 22 Mar 2023

FEATURES / BENEFITS



  • 2 ports / 1 cross pol system in low band (698-960MHz), 33deg.
  • Integrated and field replaceable SRET
  • ACU HW Version -2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 19.2 19.7 20.9
Gain Over all Tilts dBi 18.7 +/- 0.5 19.2 +/- 0.5 19.9 +/- 1
Azimuth Beamwidth 3dB Deg 36.9 +/- 3 32.8 +/- 2 31.6 +/- 0.5
Elevation Beamwidth 3dB Deg 8.7 +/- 0.5 7.9 +/- 0.5 7.1 +/- 0.5
Cross Polar Discrimination at Boresight dB 26 23.5 23
Cross Polar Discrimination over Sector dB 6 8 9
F/B at +/-30deg Total Power dB 26 26 26
First Upper Side Lobe Suppression dB 20 18 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

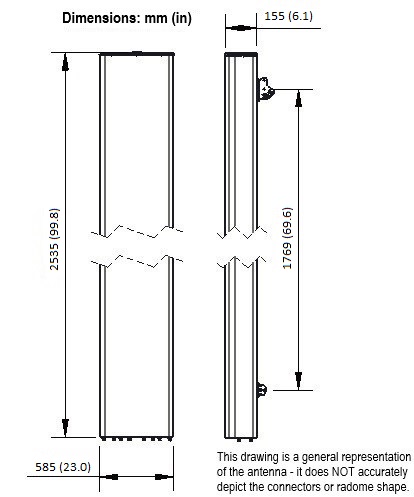

Dimensions - H x W x Dmm (in)2535 x 585 x 155 (99.8 x 23 x 6.1)
Weight (Antenna Only)kg (lb)31.2 (68.8)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)2800 x 680 x 250 (110.2 x 26.8 x 9.8)
Shipping Weightkg (lb)43.5 (95.9)
Connector type2x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN1649
Wind Load @Rated Wind SideN622
Wind Load @Rated Wind RearN1554
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXV3B26B_43-C-I20 Internal RET (ACU-I20-B1) APM50-B2 60-110mm 43.5 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
