APXV3BLL20B_43-C-I20
Dual Slant Polarized Triple Band (6 Port) Antenna, 698-960/1710-2690/1710-2690MHz, 33deg, 19.4/18.7/18.4dBi, 2.0m, 2-12deg, Integrated RET

FEATURES / BENEFITS

  • 33deg half power beamwidth at all ports
  • 2 ports / 1 cross pol system in low band (698-960MHz)
  • 4 ports / 2 cross pol systems in high band (1710-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version -2.02 / SW Version -2.72
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 17.7 19.3 19.4
Gain Over all Tilts dBi 17.2 +/- 0.5 18.3 +/- 1 18.9 +/- 0.5
Azimuth Beamwidth 3dB Deg 39.5 +/- 3 34 +/- 2 30.9 +/- 1
Elevation Beamwidth 3dB Deg 12.2 +/- 1 10.9 +/- 1 9.7 +/- 0.5
Beam Center Deg +/-30 +/-28 +/-25
Cross Polar Discrimination at Boresight dB 29 29 28
Cross Polar Discrimination over Sector dB 2 14 16
F/B at +/-30deg Total Power dB 22 23 23
First Upper Side Lobe Suppression dB 17 18 17
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
Beam Isolation dB 13
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 350

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 18 17.7 17.9 18.1 18.7
Gain Over all Tilts dBi 17 +/- 1 17.2 +/- 0.5 17.4 +/- 0.5 17.6 +/- 0.5 17.7 +/- 1
Azimuth Beamwidth 3dB Deg 40.9 +/- 3.6 36.2 +/- 3.6 34.6 +/- 2.5 31.7 +/- 2.9 32.1 +/- 4.5
Elevation Beamwidth 3dB Deg 9.7 +/- 0.5 9 +/- 1 8.8 +/- 0.5 8 +/- 0.1 7.5 +/- 0.5
Beam Center Deg +/-30 +/-28 +/-25 +/-24 +/-23
Cross Polar Discrimination at Boresight dB 22 21 17 16 20
Cross Polar Discrimination over Sector dB 2 1 2 1 2
F/B at +/-30deg Total Power dB 21.8 22 22 21 19
First Upper Side Lobe Suppression dB 16 14 16 20 19
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
Beam Isolation dB 13
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 17.6 17.9 18.2 18.2 18.4
Gain Over all Tilts dBi 17.1 +/- 0.5 17.4 +/- 0.5 17.7 +/- 0.5 17.7 +/- 0.5 17.8 +/- 0.6
Azimuth Beamwidth 3dB Deg 39.9 +/- 3.7 35.8 +/- 3 35.1 +/- 2.1 33.1 +/- 2.7 32.5 +/- 3.8
Elevation Beamwidth 3dB Deg 9.7 +/- 0.7 9.1 +/- 0.5 8.9 +/- 0.6 8 +/- 1 7.5 +/- 0.5
Beam Center Deg +/-30 +/-28 +/-25 +/-24 +/-23
Cross Polar Discrimination at Boresight dB 21 21 15 17 18
Cross Polar Discrimination over Sector dB 2 1 1 1.3 2
F/B at +/-30deg Total Power dB 23 22 21 21 19
First Upper Side Lobe Suppression dB 14 13 15.6 15.4 16
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
Beam Isolation dB 13
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

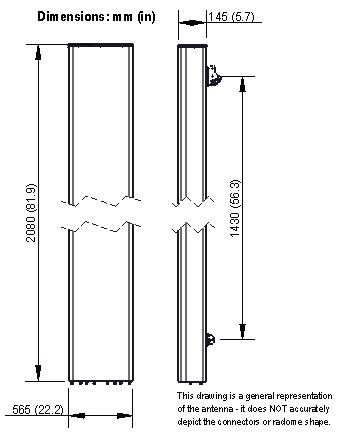

Dimensions - H x W x Dmm (in)2080 x 565 x 145 (81.9 x 22.2 x 5.7)
Weight (Antenna Only)kg (lb)44 (56.5)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)2350 x 640 x 220 (92.5 x 25.2 x 8.7)
Shipping Weightkg (lb)56.5 (124.6)
Connector type6x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN1290
Wind Load @Rated Wind SideN487
Wind Load @Rated Wind RearN1216
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXV3BLL20B_43-C-I20 Internal RET (ACU-I20-B3) APM50-B1 50-110mm 56.5 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
