APXV3LL08B_43-C-I20
4-Ports, X-Pol, Panel Antenna, 0.8m, 2x 1710-2690MHz, 33deg, Integrated RET

Rev : D | Rev date : 21 Feb 2023

FEATURES / BENEFITS

  • Single beam antenna, 33deg
  • 4 ports / 2 cross pol systems in high band (1710-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 14.7 15 15.3 16 16.1
Gain Over all Tilts dBi 14.4 +/- 0.3 14.8 +/- 0.2 15 +/- 0.3 15.5 +/- 0.5 15.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 35.5 +/- 1.5 33.6 +/- 0.8 32 +/- 1.9 28 +/- 0.7 26.9 +/- 0.9
Elevation Beamwidth 3dB Deg 28.3 +/- 1.6 26.5 +/- 1.5 24.6 +/- 2.3 21 +/- 1.2 18.5 +/- 1.3
Cross Polar Discrimination at Boresight dB 15.8 17 17.4 16.6 21.3
Cross Polar Discrimination over Sector dB 10.9 8.3 7.8 3.5 3.2
F/B at +/-30deg Total Power dB 24.4 23.6 21.9 20.5 19.4
First Upper Side Lobe Suppression dB 14.9 14.3 12.9 12.4 11.2
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Gain Typical dBi 14.8 15.2 15.5 16.1 16.2
Gain Over all Tilts dBi 14.5 +/- 0.3 14.9 +/- 0.3 15.1 +/- 0.4 15.8 +/- 0.3 15.5 +/- 0.7
Azimuth Beamwidth 3dB Deg 35.1 +/- 1.2 33.3 +/- 1 31.5 +/- 2.1 28 +/- 0.7 27.3 +/- 1.1
Elevation Beamwidth 3dB Deg 28.7 +/- 1 27 +/- 1 25.4 +/- 1.9 20.8 +/- 1.1 19.5 +/- 1.6
Cross Polar Discrimination at Boresight dB 19.5 20.6 21.2 22.1 22.2
Cross Polar Discrimination over Sector dB 10.3 9.2 8.9 7 6.3
F/B at +/-30deg Total Power dB 24.5 22.2 21.5 20.9 20.2
First Upper Side Lobe Suppression dB 18.9 16.9 16.6 17.1 15.2
Electrical Downtilt Deg 2 to 11
Cross Polar Isolation dB 26
Interband Isolation dB 26
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -150
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

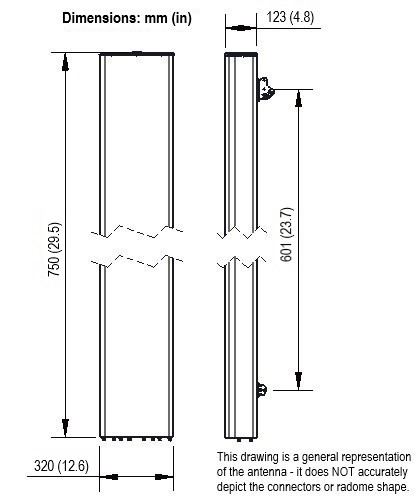

Dimensions - H x W x Dmm (in)750 x 320 x 123 (29.5 x 12.6 x 4.8)
Weight (Antenna Only)kg (lb)8.3 (18.3)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1025 x 415 x 215 (40.4 x 16.3 x 8.5)
Shipping Weightkg (lb)16.4 (36.2)
Connector type4 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN295
Wind Load @Rated Wind SideN97
Wind Load @Rated Wind RearN311
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXV3LL08B_43-C-I20 Internal RET(ACU-I20-B2) APM50-B1 50-110mm 16.4 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
